5" Multi Magnetic Hotplate Stirrers With Hub Control

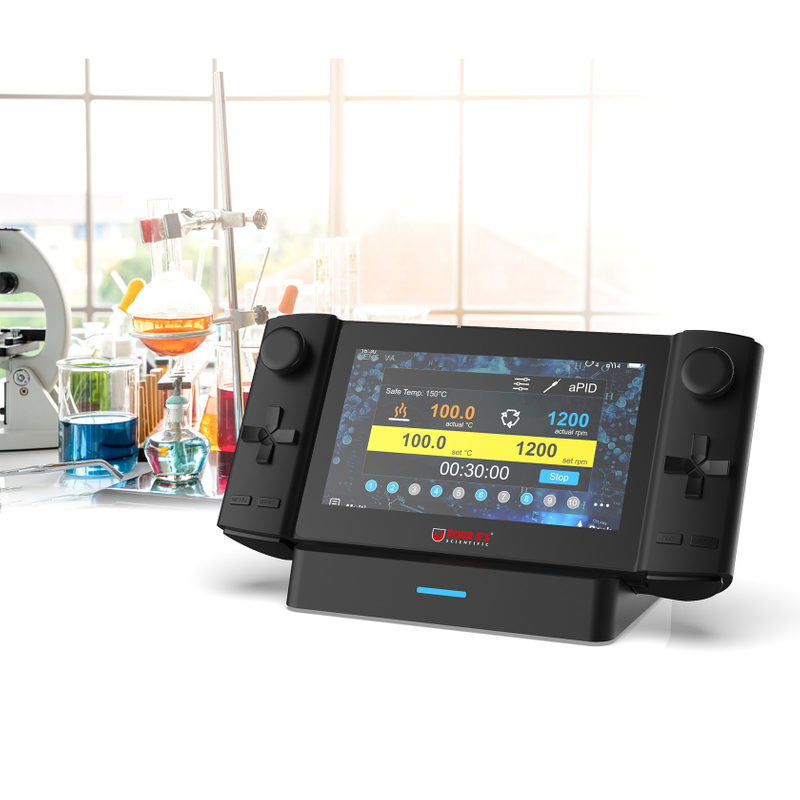

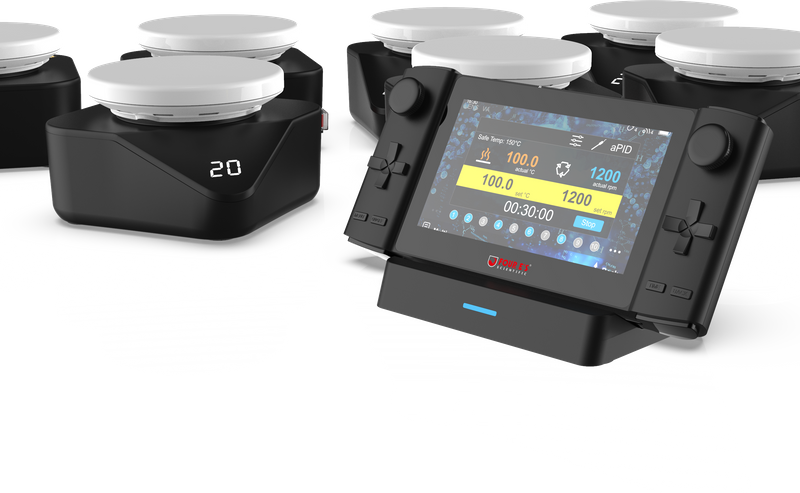

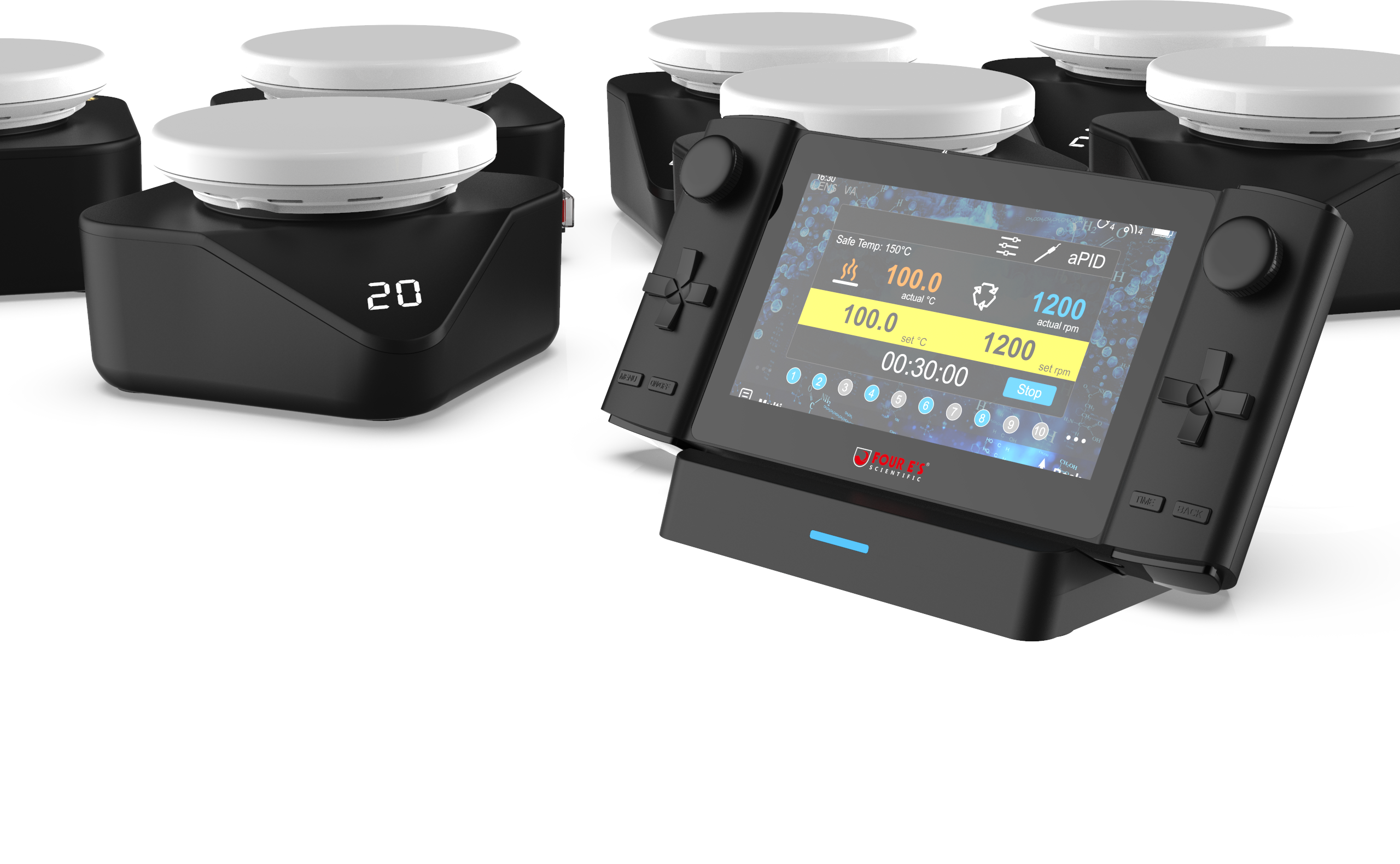

The 5" Multi Magnetic Hotplate Stirrers With Hub Control, made up of one controller and multiple stirrers, is designed to maximize productivity and enhance temperature control accuracy. The hub controller comes with a large touchscreen display, controlling each hotplate stirrer to heat evenly and mix various types of liquids and solutions.

The hotplate offers ceramic coated surface, which is corrosion-resistant and easy to clean. The device adopts bluetooth, 2.4G wireless and wired USB connectivity to realize real-time data transmission and precise control, which provides increased flexibility for users. It is compatible with wired or wireless connections. When applying wired connections, the hub controller can control 6 magnetic hotplate stirrers, while for wireless connections, there is no limit on the number of stirrers.
Availability:
5" Multi Magnetic Hotplate Stirrers With Hub Control
5" Multi Magnetic Hotplate Stirrers With Hub Control
5" Multi Magnetic Hotplate Stirrers With Hub Control
5" Multi Magnetic Hotplate Stirrers With Hub Control
Features

● The hub controller comes with a 7-inch, high resolution LCD touch screen

● Temperature, Speed and Run Time for each magnetic hotplate stirrer can be set and adjusted by using the hub controller

● Bluetooth, 2.4G wireless and wired USB connectivity options allow real-time data transmission and precise control

● Large capacity 5000mAh battery supports long working hours without the need for frequent charging

● The maximum hotplate temperature is up to 310°C, and the safety temperature range is 50°C-325°C

● PID controller ensures rapid heating and accurate temperature control

● The ceramic coated heating plate is resistant to high temperature, chemical corrosion and is easy to clean

● Brushless DC motor is maintenance free

● Automatically identify external temperature sensor PT1000 and transfer to PT1000 operation mode

● LED display on the hotplate stirrer displays equipment tracking number for easy identification, speed, and temperature

● The controller adopts magnetic charging, which is convenient and fast


Dimension

ItemLength (mm)Width (mm)Height (mm)
Controller26312640
Charging stand16713492
Magnetic hotplate stirrer166166106



Specifications

MAGNETIC HOTPLATE STIRRERS
ModelMS321
Set-up plate materialAluminium alloy with ceramic coating
Set-up plate dimensionsΦ5 inches
Heating temperature rangeRoom temp. to 310°C
Speed range50-1500RPM
Safety temperature50°C to 325°C
Speed control accuracy±1RPM
Temperature control accuracy±1°C
Time range99H59min

Maximum stirrer connections

Wired connections: 6
Wireless connections: no limit
Motor input24V,30W
MotorBrushless DC motor
External temperature sensorYes
Max. stirring quantity (H₂O)20L
Power supply200-240/100-120 VAC;50/60Hz
Stirring bar55MM
Power switchYes
DisplayLED
Dimension166x166x106mm


HUB CONTROLLER
Display7-inch touch screen
Rechargeable batteryLithium polymer battery: 7.4V
Charging time3 hours
Battery capacity5000mAh
Battery life8H
Main controller dimension263x126x40mm


CHARGING STAND
Power input200-240/100-120 VAC; 50/60Hz
Power input interfaceDC port
Wireless effective connection distance10m
