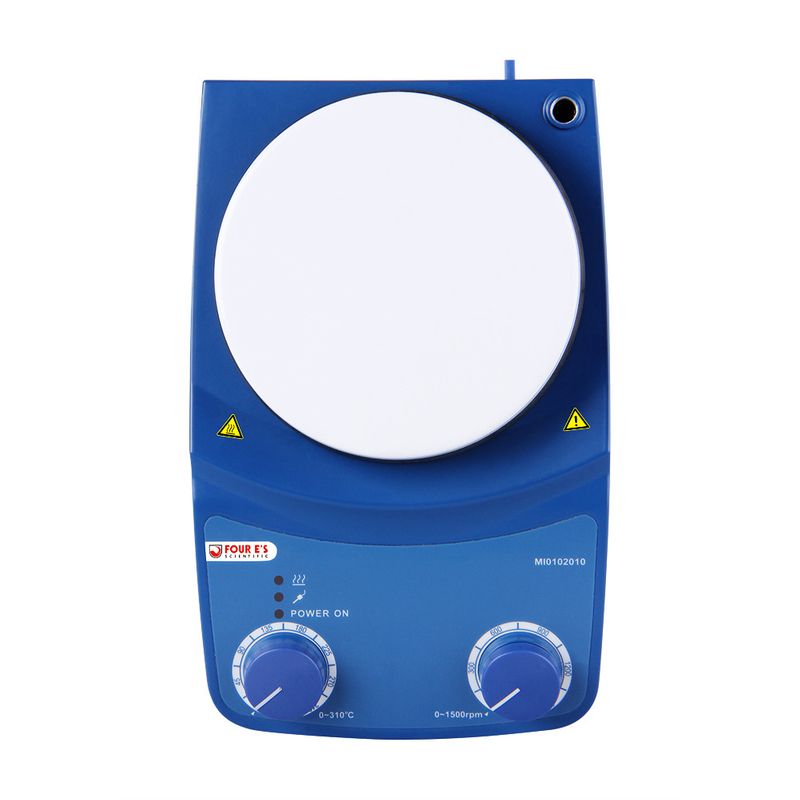

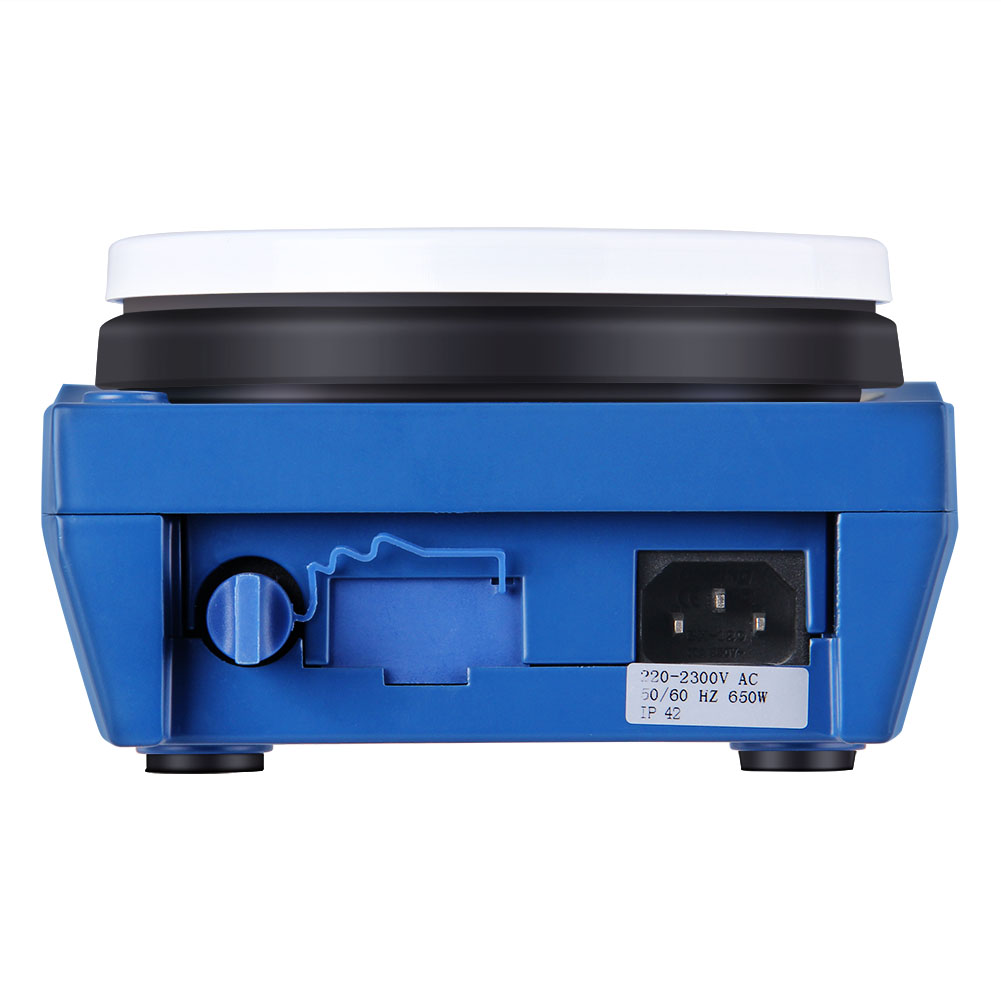

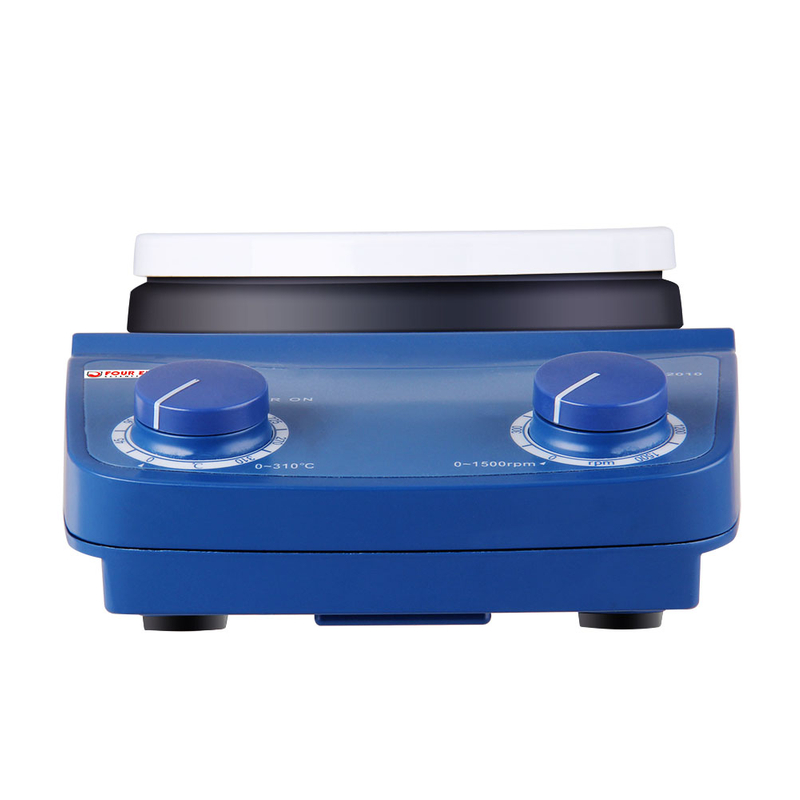

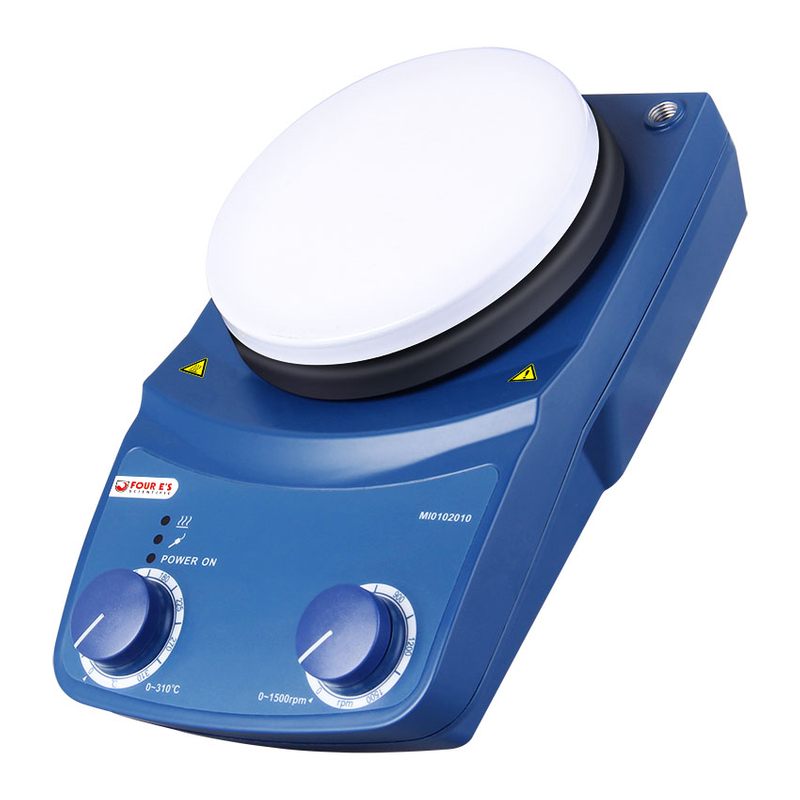

5 Inch Magnetic Hotplate Stirrer

FOURE E’s Magnetic Hotplate stirrers provides excellent stirring performance and high temperature accuracy. It comes with a ceramic coated stainless-steel hotplate which is durable, chemical resistant, easy to clean and allows for optimum heat transfer. The enclosed heating plate design reduces risks of liquid splashing into the equipment, and the compact design makes it an ideal benchtop instrument for labs. Optimized PID program control enables temperature and speed control with high accuracy. Fully enclosed alloy casing provides high temperature resistance, excellent heat dissipation and chemical resistance.

Availability:

Typical Applications:

● Widely used in medical, biological engineering, chemistry, bio-pharmaceuticals, food and other research fields. It is a necessary instrument for stirring and mixing various reagents, solutions and chemical substances in biological laboratory.

Features:

● Enclosed heating plate design reduces the risk of liquid splashing into the equipment

● 3D digital wheel adjustment of speed and temperature

● Temperature is up to 310°C and the safety temperature is 50-320°C

● Brushless DC motor is maintenance-free and explosion-proof

● Stainless Steel with ceramic coated heating plate allows for optimum heat transfer and easy to clean

● High safety and strong stirring performance

● Optimized PID program control provides extremely high accuracy of temperature and speed

● Double internal temperature sensor PT1000

● Hot surface warning to prevent burns

5 Inch Magnetic Hotplate Stirrer,wholesale Magnetic Hotplate Stirrer,Magnetic Hotplate Stirrer manufacturer


Model

MI0102010

Stirring positions

1

Set-up plate dimensions [mm]

Ø 135

Set-up plate material

Stainless Steel with ceramic coated

Motor type

Brushless DC motor

Max. stirring quantity [H₂O, L]

20

Max. stirring bar [ L x Φ , mm]

55*10

Motor rating input [W]

30

Motor rating output [W]

20

Speed range [rpm]

50-1500

Speed display

Scale

Heating output [W]

600

Heating temperature range

Room temp.-310°C

Temperature display

Scale

Temperature display accuracy

/

Safety temperature [°C]

50-320

External temperature sensor

/

Control accuracy with external temperature
sensor PT1000 [°C]

/

Hot surface warning

50°C

Permissible ambient temperature [°C]

5 - 40

Permissible relative humidity

80%

Protection class according to DIN EN 60529

IP 42

Voltage [VAC]

200-240/100-120

Frequency [Hz]

50/60

Power [W]

650

Dimensions [W x D x H, mm]

250 x 148 x 85

Weight [kg]

1.9
