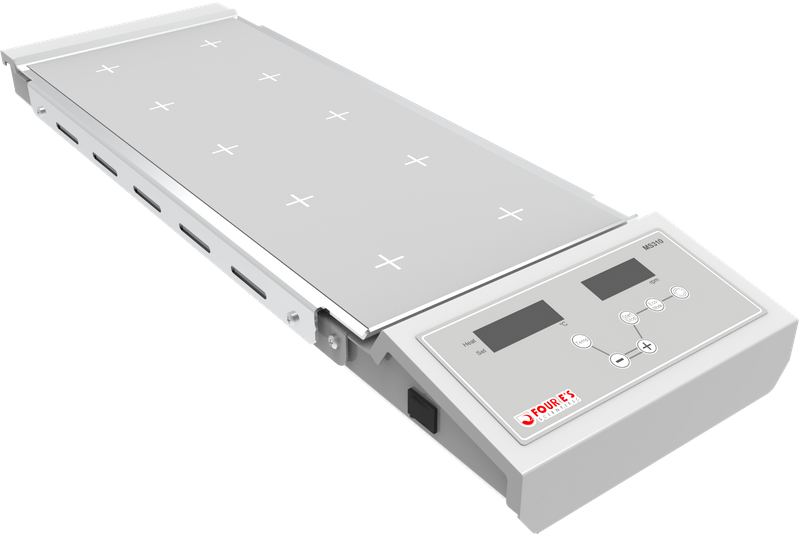

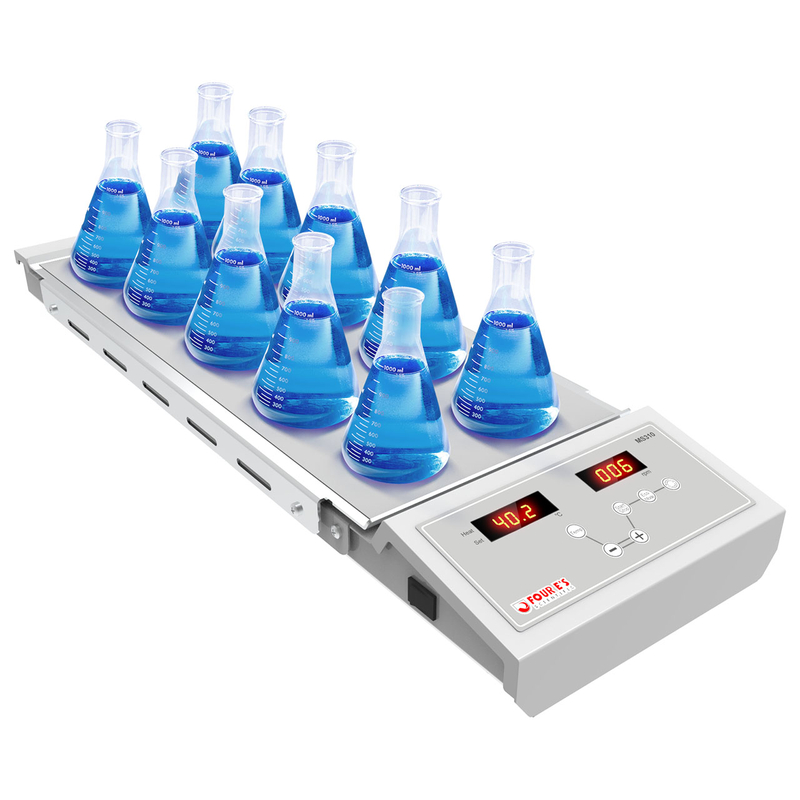

The 10-position Magnetic Hotplate Stirrer supports synchronous heating and stirring. The wear free magnetic coil technology provides noiseless and consistent stirring in all 10 positions. Stainless steel with silicone work plate is skid-resistant and allows excellent heating uniformity.
The equipment comes with an Economic mode function that lowers the work plate heating. Reverse rotation and error code display options are available.
Availability: | |
---|---|
Features:
● 10 positions supports synchronous heating and stirring
● Wear free magnetic coils and the magnetic coil technology provides noiseless and consistent stirring on all positions
● The max. heating temperature is 120°C and the sample temperature can be up to 70°C at maximum
● The max. speed is 1200rpm and the increment is 10rpm
● Economic mode can have the work plate automatic heating at low temperature
● Stainless steel with silicone work plate is skid-resistant and allows excellent heating uniformity
● Comes with Reverse Rotation option
Magnetic Hotplate Stirrer manufacturer
Features:
● 10 positions supports synchronous heating and stirring
● Wear free magnetic coils and the magnetic coil technology provides noiseless and consistent stirring on all positions
● The max. heating temperature is 120°C and the sample temperature can be up to 70°C at maximum
● The max. speed is 1200rpm and the increment is 10rpm
● Economic mode can have the work plate automatic heating at low temperature
● Stainless steel with silicone work plate is skid-resistant and allows excellent heating uniformity
● Comes with Reverse Rotation option
Magnetic Hotplate Stirrer manufacturer
Model | MS310 |
Stirring position | 10 |
Work plate material | Stainless steel with silicone |
Work plate dimension [L x W, mm] | 470×205 |
Driving mode | Electromagnetic drive |
Max. stirring quantity [L] | 0.4 x 10 |
Heating temperature [℃] | Room temp. - 120 |
Safety temperature [℃] | 150 |
Speed range [rpm] | 0-1200 |
Speed increment [rpm] | 10 |
Stirring position distance [mm] | 93 |
Max. magnetic bar length [mm] | 30 |
Speed display | LED |
Time display | LED |
Economic mode | Yes |
Adjustable Reverse rotation | Yes |
Operation type | Continuous / timing operation |
Time range | 0-99h59min |
Voltage [VAC] | 100-120/200-240 |
Frequency [Hz] | 50/60 |
Heating Power [W] | 500 |
Power [W] | 580 |
Permissible ambient temperature [℃] | 5-40 |
Permissible relative humidity | 80% |
Protection class | IP30 |
Dimension [L x W x H, mm] | 630x210x70 |
Weight [kg] | 10 |
Model | MS310 |
Stirring position | 10 |
Work plate material | Stainless steel with silicone |
Work plate dimension [L x W, mm] | 470×205 |
Driving mode | Electromagnetic drive |
Max. stirring quantity [L] | 0.4 x 10 |
Heating temperature [℃] | Room temp. - 120 |
Safety temperature [℃] | 150 |
Speed range [rpm] | 0-1200 |
Speed increment [rpm] | 10 |
Stirring position distance [mm] | 93 |
Max. magnetic bar length [mm] | 30 |
Speed display | LED |
Time display | LED |
Economic mode | Yes |
Adjustable Reverse rotation | Yes |
Operation type | Continuous / timing operation |
Time range | 0-99h59min |
Voltage [VAC] | 100-120/200-240 |
Frequency [Hz] | 50/60 |
Heating Power [W] | 500 |
Power [W] | 580 |
Permissible ambient temperature [℃] | 5-40 |
Permissible relative humidity | 80% |
Protection class | IP30 |
Dimension [L x W x H, mm] | 630x210x70 |
Weight [kg] | 10 |
