FOURE E’s Magnetic Hotplate stirrers provides excellent stirring performance and high temperature accuracy. It comes with a ceramic coated stainless-steel hotplate which is durable, chemical resistant, easy to clean and allows for optimum heat transfer. The enclosed heating plate design reduces risks of liquid splashing into the equipment, and the compact design makes it an ideal benchtop instrument for labs. Optimized PID program control enables temperature and speed control with high accuracy. An external temperature probe PT1000 is available for applications that require precise temperature control.The Special plastic casing is high temperature resistant and strong flame-retardant. The large, LED display enables easy speed and temperature setting and monitoring and also has a hot surface warning when the hot plate temperature is above 50°C.
Availability: | |
---|---|
Typical Applications:
● Widely used in medical, biological engineering, chemistry, medicine, food and other research fields. It is a necessary routine instrument for stirring and mixing various reagents, solutions and chemical substances in biological laboratory
Features:

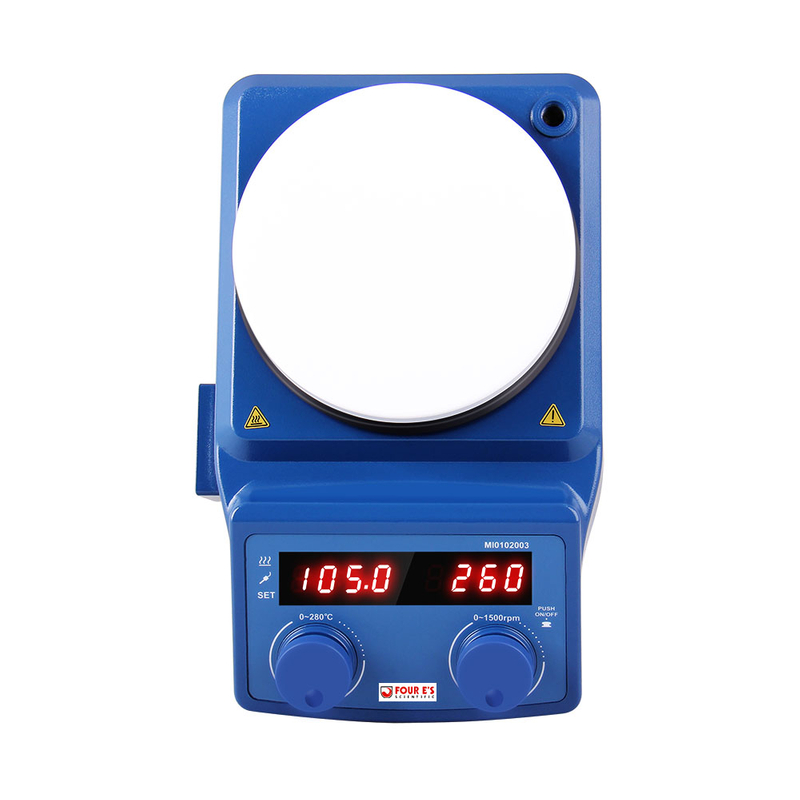

● LED digital display for easy reading
● Special plastic casing is high-temperature resistant and strong flame-retardant
● Temperature is up to 280°C and the safety temperature is 50-320°C
● Stainless steel with ceramic coated hotplate allows for immediate heat transfer
● 3D digital wheel operation to adjust the speed and temperature
● Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode
5 Inch Magnetic Hotplate Stirrer with Plastic Casing,wholesale Magnetic Hotplate Stirrer,Magnetic Hotplate Stirrer manufacturer,Magnetic Hotplate Stirrer
Typical Applications:
● Widely used in medical, biological engineering, chemistry, medicine, food and other research fields. It is a necessary routine instrument for stirring and mixing various reagents, solutions and chemical substances in biological laboratory
Features:
● LED digital display for easy reading
● Special plastic casing is high-temperature resistant and strong flame-retardant
● Temperature is up to 280°C and the safety temperature is 50-320°C
● Stainless steel with ceramic coated hotplate allows for immediate heat transfer
● 3D digital wheel operation to adjust the speed and temperature
● Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode
5 Inch Magnetic Hotplate Stirrer with Plastic Casing,wholesale Magnetic Hotplate Stirrer,Magnetic Hotplate Stirrer manufacturer,Magnetic Hotplate Stirrer
Model | MI0102003 |
Stirring positions | 1 |
Set-up plate dimensions [mm] | Ø 135 |
Set-up plate material | Stainless Steel with ceramic coated |
Motor type | DC motor |
Max. stirring quantity [H₂O, L] | 5 |
Max. stirring bar [ L x Φ , mm] | 55*10 |
Motor rating input [W] | 3 |
Motor rating output [W] | 2.5 |
Speed range [rpm] | 100-1500 |
Speed display | LED |
Heating output [W] | 600 |
Heating temperature range | Room temp.-280°C |
Temperature display | LED |
Temperature display accuracy | ±0.1 |
Safety temperature [°C] | 50-320 |
External temperature sensor | / |
Control accuracy with external temperature | ±1 |
Hot surface warning | 50°C |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity | 80% |
Protection class according to DIN EN 60529 | IP 42 |
Voltage [VAC] | 200-240/100-120 |
Frequency [Hz] | 50/60 |
Power [W] | 630 |

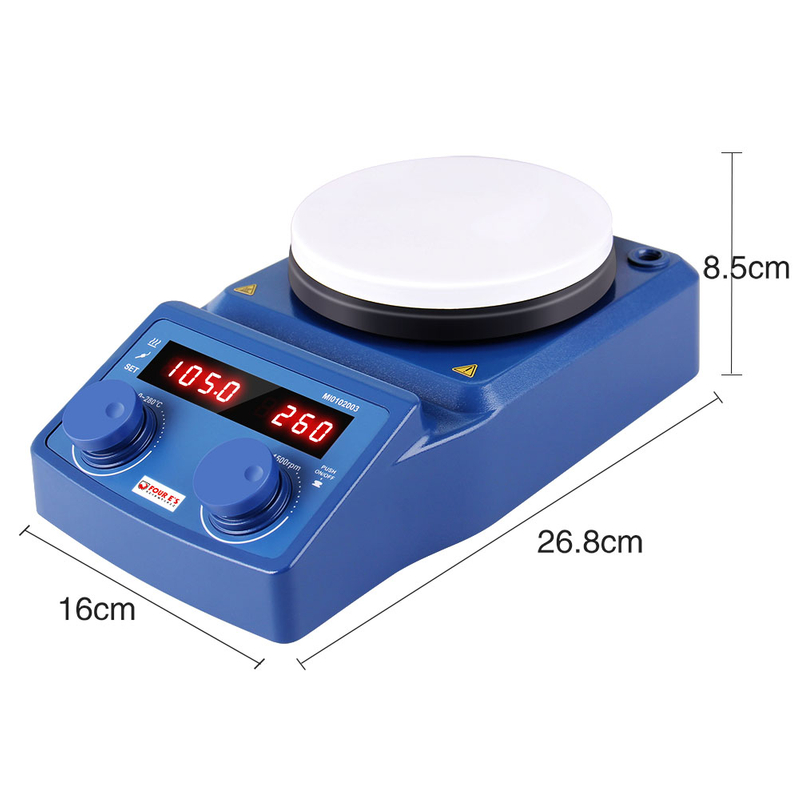

Dimensions [W x D x H, mm] | 268 x 160 x 85 |
Weight [kg] | 1.8 |
Model | MI0102003 |
Stirring positions | 1 |
Set-up plate dimensions [mm] | Ø 135 |
Set-up plate material | Stainless Steel with ceramic coated |
Motor type | DC motor |
Max. stirring quantity [H₂O, L] | 5 |
Max. stirring bar [ L x Φ , mm] | 55*10 |
Motor rating input [W] | 3 |
Motor rating output [W] | 2.5 |
Speed range [rpm] | 100-1500 |
Speed display | LED |
Heating output [W] | 600 |
Heating temperature range | Room temp.-280°C |
Temperature display | LED |
Temperature display accuracy | ±0.1 |
Safety temperature [°C] | 50-320 |
External temperature sensor | / |
Control accuracy with external temperature | ±1 |
Hot surface warning | 50°C |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity | 80% |
Protection class according to DIN EN 60529 | IP 42 |
Voltage [VAC] | 200-240/100-120 |
Frequency [Hz] | 50/60 |
Power [W] | 630 |
Dimensions [W x D x H, mm] | 268 x 160 x 85 |
Weight [kg] | 1.8 |
