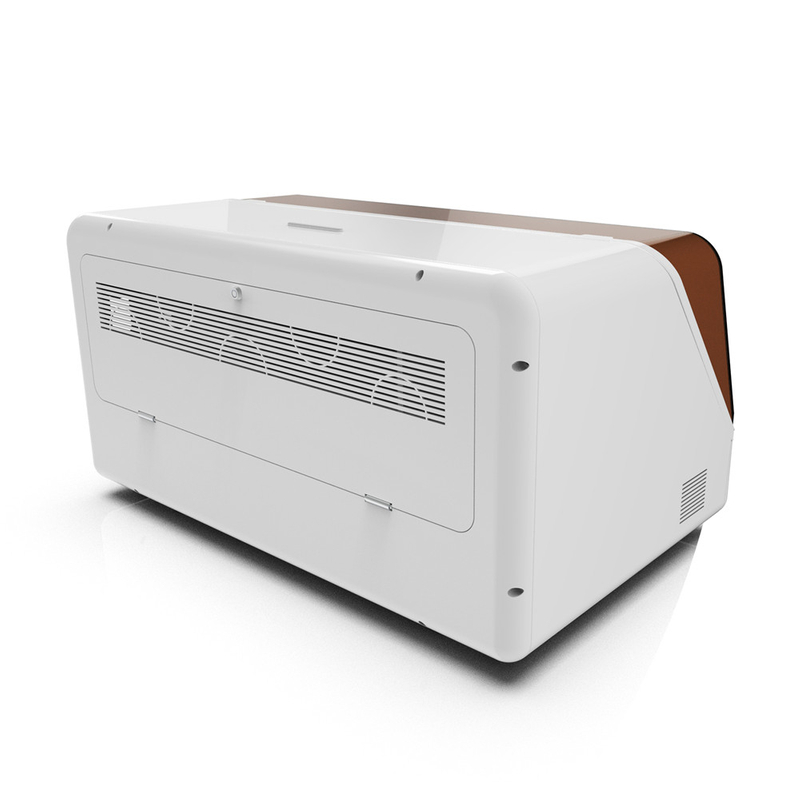

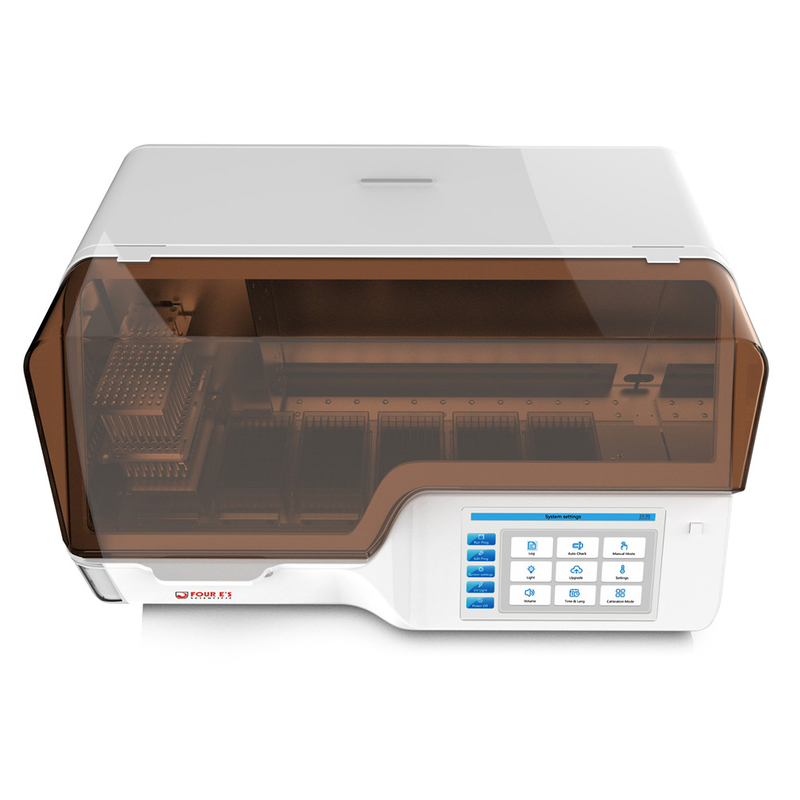

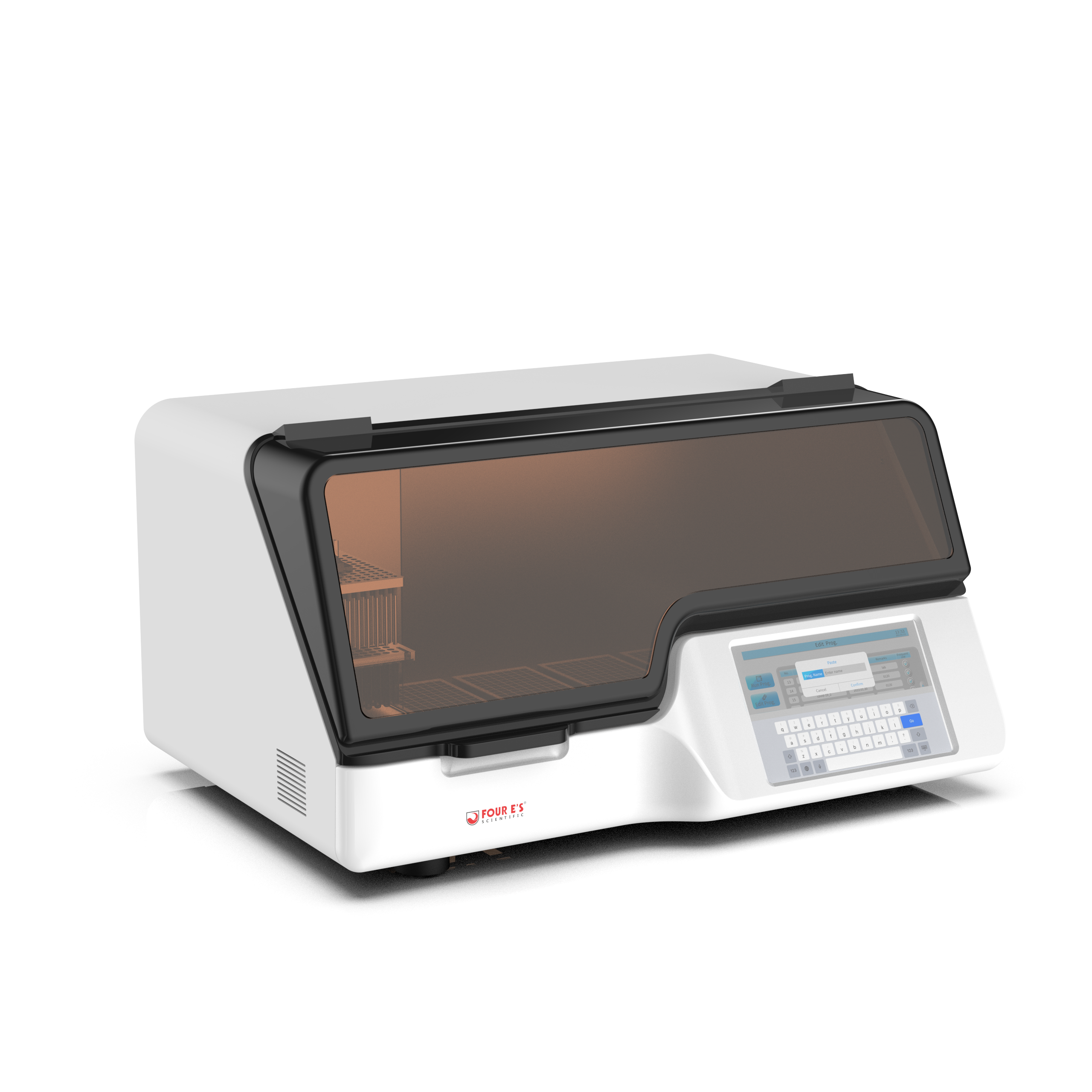

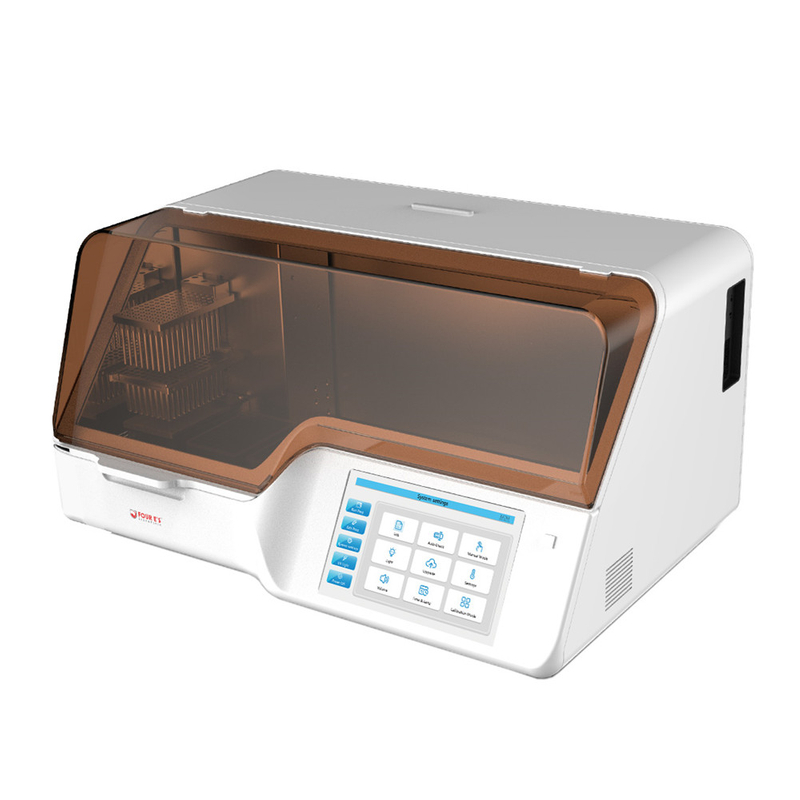

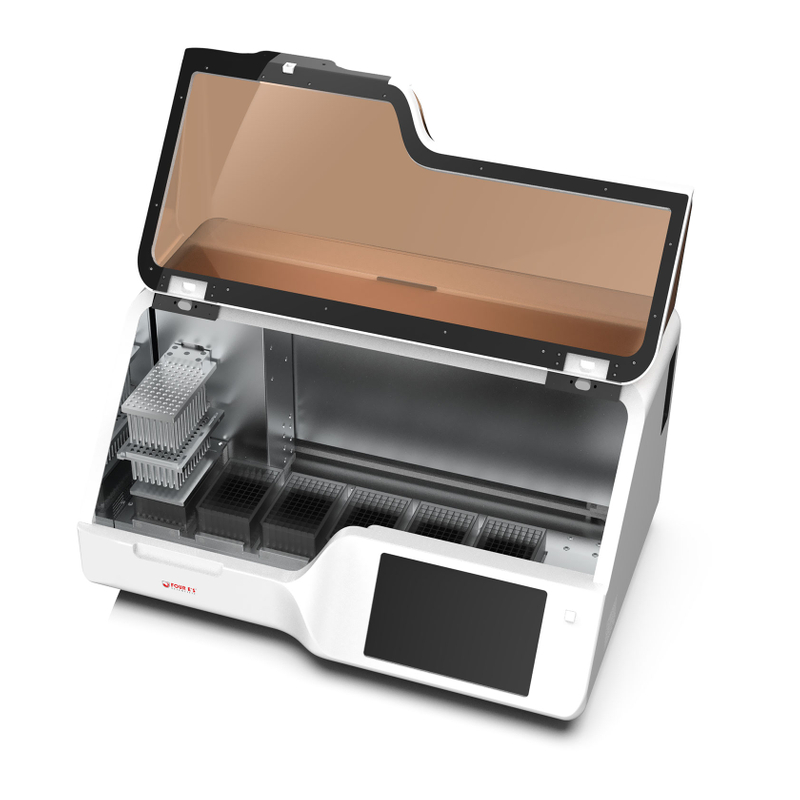

Nucleic Acid Extraction System MultiEX 096

MultiEX series products offer automated nucleic acid extraction and purification using Magnetic Bead separation. The MultiEX 096 is a High-throughput system and can process up to 96 samples per run. Using Magnetic Bead Separation technology, the MultiEX series extractors are capable of extracting and purifying nucleic acids from a variety of biological samples, such as whole blood, viruses, tissues, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards, etc. The system comes with a user-friendly touch screen interface allowing the user to easily set purification parameters. The automated system integrates all the purification phases including binding, mixing, washing, and elution, and delivers high-efficiency, high-quality purification. The system works with any prefilled magnetic bead based reagent kit.

Availability:

FEATURES:

● Stable and Efficient Automated processing avoids discrepancies and errors caused by manual operations and increases efficiency.

● Ease of Use A 10-inch color touch screen and user-friendly interface lets you easily set purification parameters.

● Contamination Control Built-in UV disinfection lamp eliminates cross-contamination.

● Advanced Stirring Technology Stirring speed up to 10HZ (10 times up and down in 1 second), enables effective mixing of samples with high viscosity (blood, feces, etc.).

● Multiple Heating Modules Heating modules with individual heating controls ensures high temperature accuracy for lysis and elution.

● Safe and Reliable The operation will automatically suspend once the safety door opens and only resumes after the safety door is shut, which provides better protection for users.

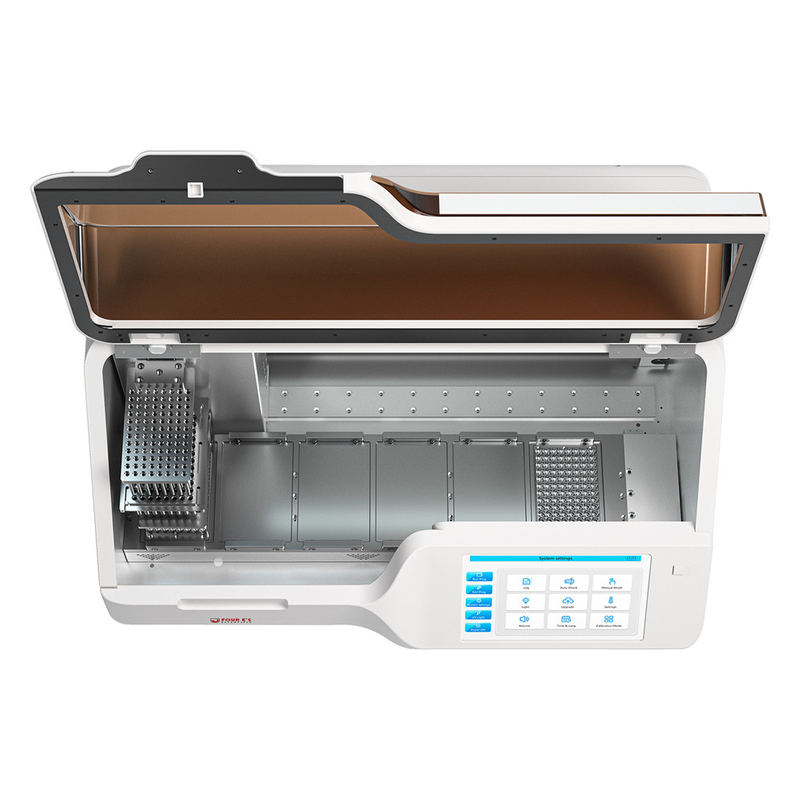

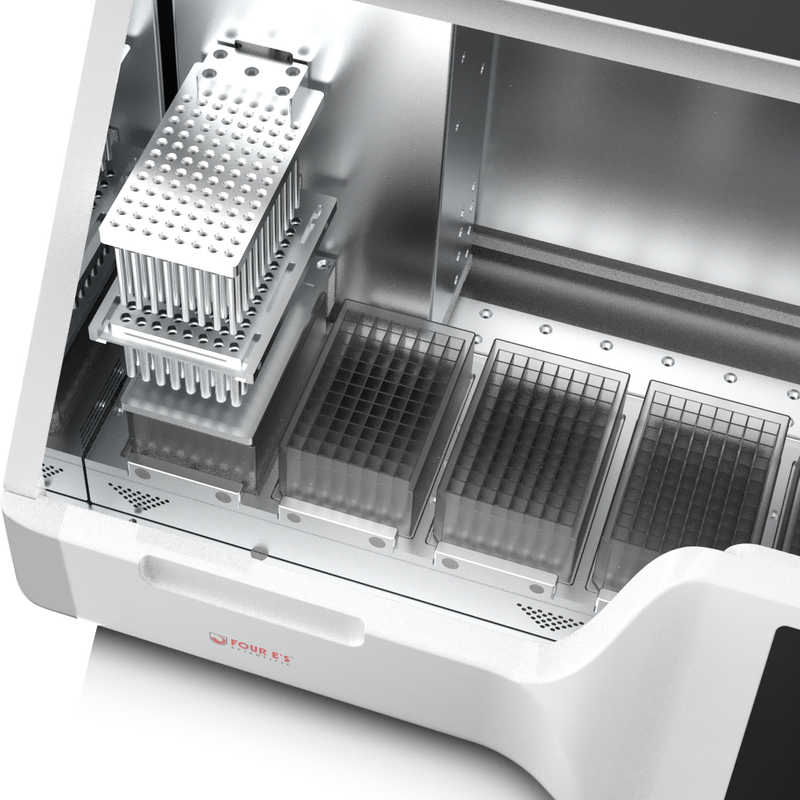

● Self-Diagnostics Auto checks before every run ensures that the sleeve, rod and well plate are positioned correctly thereby avoiding any errors due to omission or interference.

Nucleic Acid Extraction System MultiEX 096,nucleic acid extraction system,automatic nucleic acid extraction system,automated nucleic acid extraction system price

Model

MultiEX 096

Volume Capacity

50-1000μL

Sample Quantity

1-96

Plate Quantity

6

Plate Type

96-well deep-well plate

Processing Time

20min-40min/run (depending on reagent   types and volumes)

Reagent Type

Magnetic bead-based open-source reagents

Program management

create, edit, and delete options   available

Heating Temp.

Room Temp.~ 100℃

Mixing Intensities

Adjustable: 8 Levels

Magnetic Bead Recovery Rate

96%

Inter-well Purification Variation

CV<5%

Working Noise

<50dB

Exhaust

Fan

Data Storage Capacity

>500 programs

Dimension

700*475*370mm

Display

10-inch color touch screen

Lighting

Yes

Contamination Control

UV light

Power Supply

200-240V, 100-120V; 50/60 Hz

Weight

35KG

Extension ports

2 USB port, 1 Ethernet port
