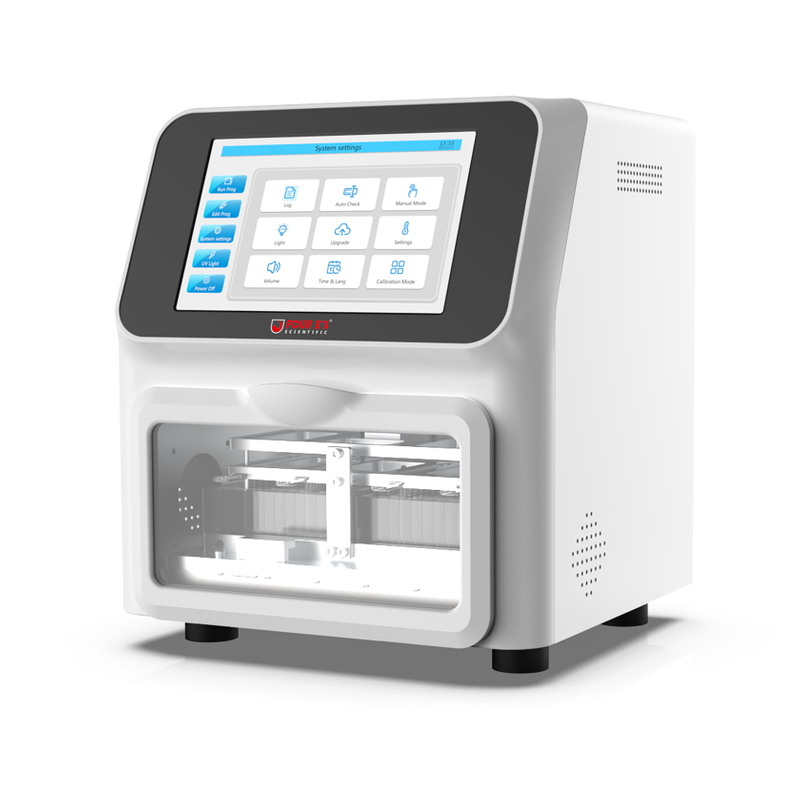

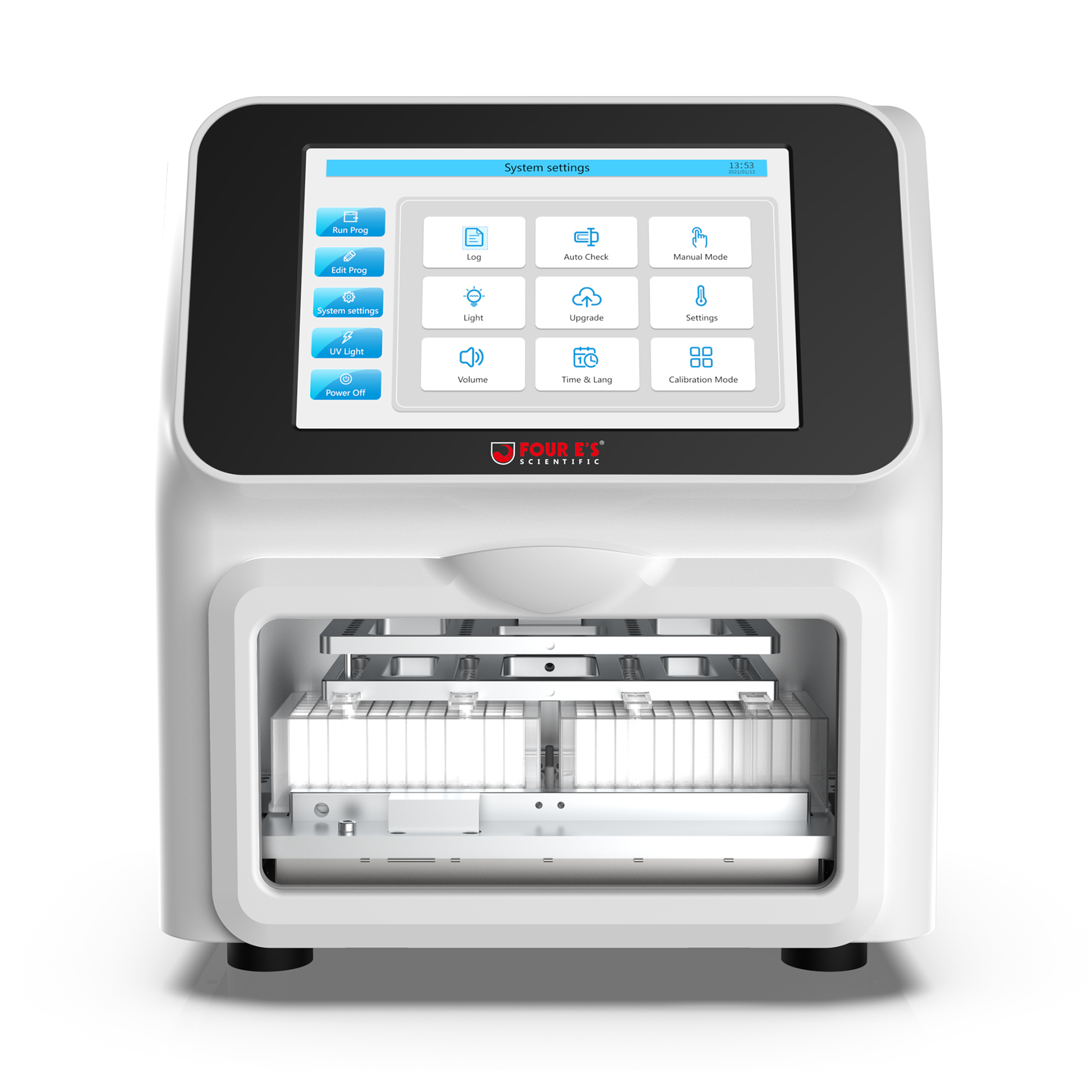

Nucleic Acid Extraction System MultiEX 032

MultiEX 032 Automated Nucleic Acid Extractor can be used in Research Labs (Government & Academic Research), Commercial Labs (Pharmaceutical & BioTechnology Industries), and Molecular Diagnostics Labs.

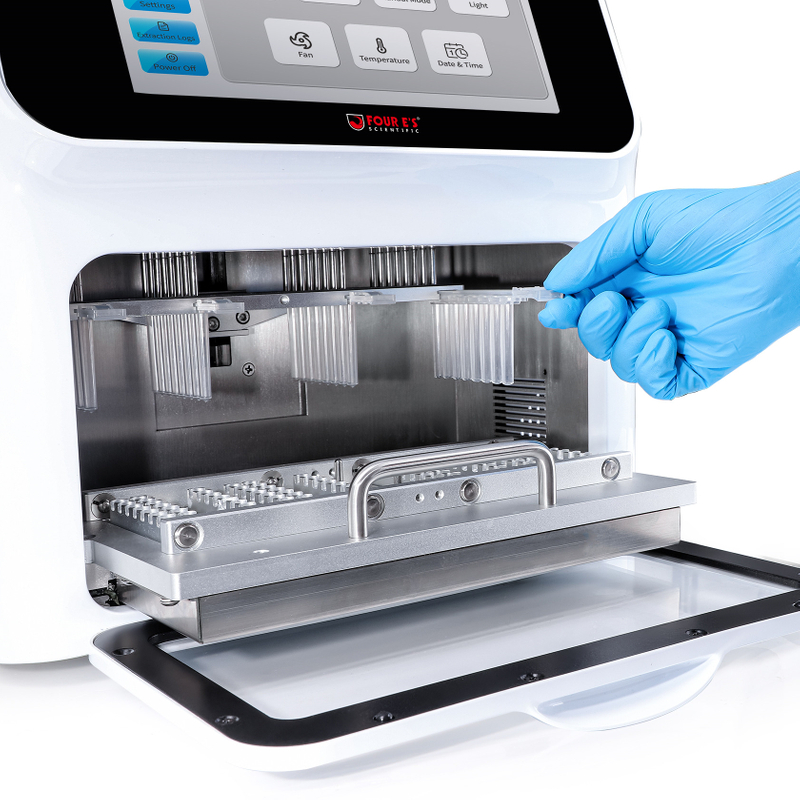

It is an automated nucleic acid extraction and purification system which can process up to 32 samples per run. The system uses Magnetic Bead Separation technology, and has the capability of extracting and purifying nucleic acids from a variety of biological samples, such as whole blood, viruses, tissues, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards, etc.

The nucleic acid extraction machine comes with a user-friendly touch screen interface allowing the user to easily set purification parameters. The automated nucleic acid extraction system integrates all the purification phases including binding, mixing, washing, and elution, and delivers high-efficiency, high-quality purification. The system works with any prefilled magnetic bead-based reagent kit.




● Compact & Lightweight: Help save your limited laboratory bench space.

● Stable and Efficient: Automated processing avoids discrepancies and errors caused by manual operations and increases the efficiency

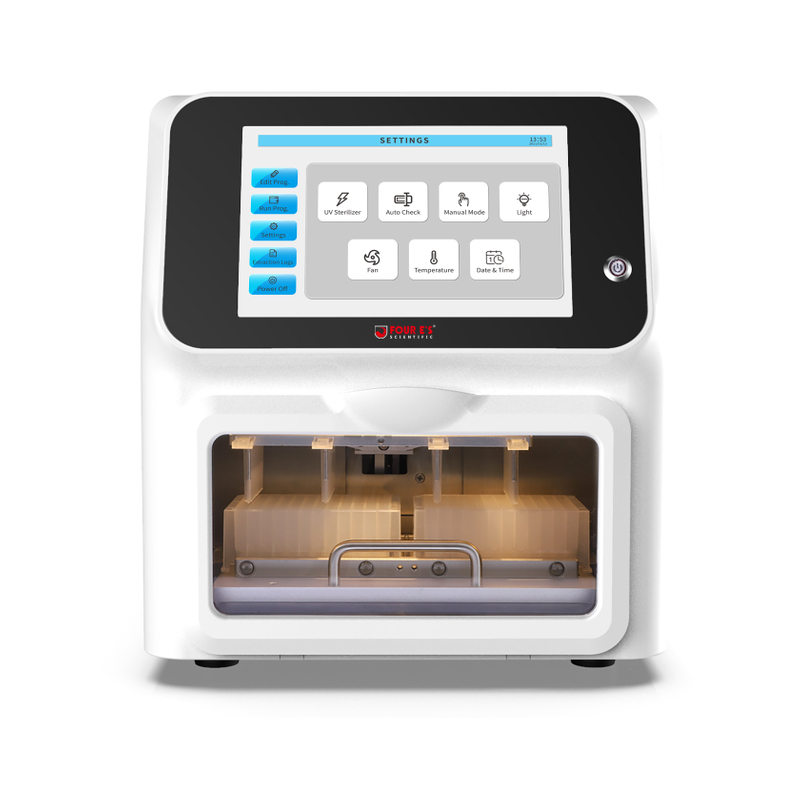

● Ease of Use: A 10-inch color touch screen and user-friendly interface lets you easily set purification parameters

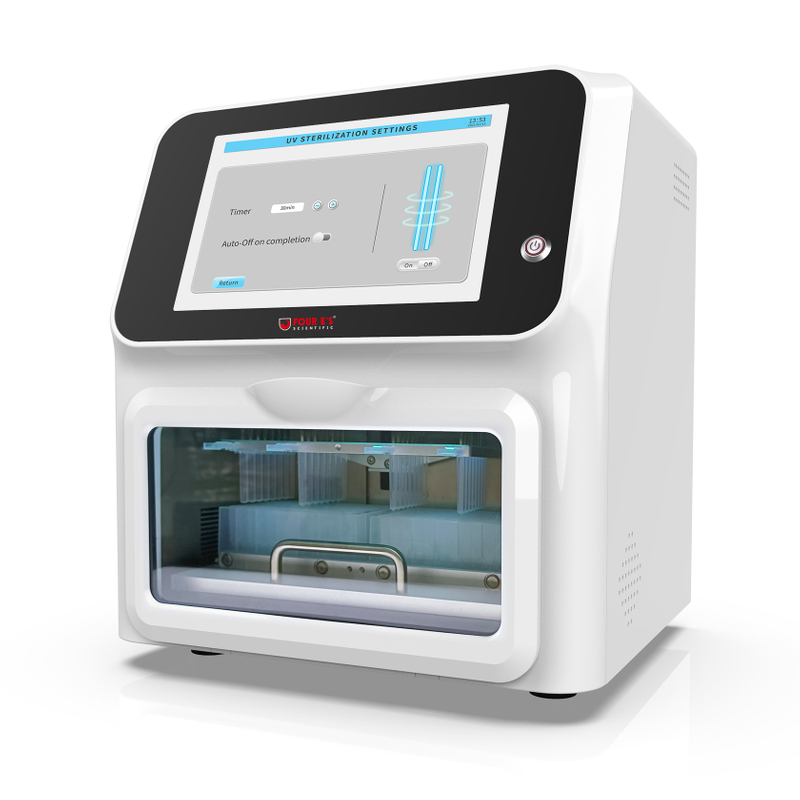

● Contamination Control: Built-in UV disinfection lamp eliminates cross-contamination.

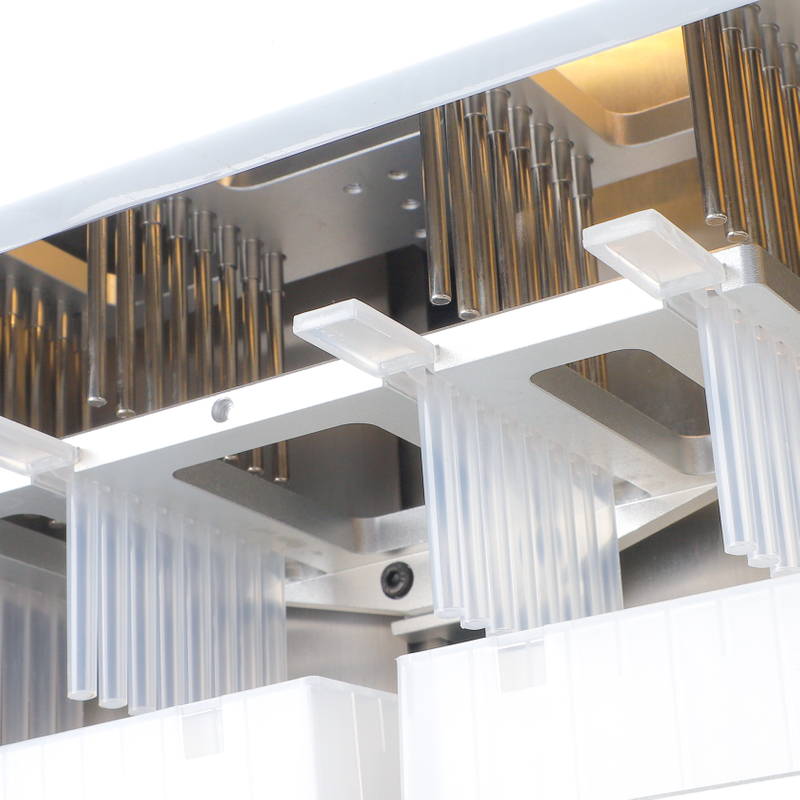

●Advanced Stirring Technology: Stirring speed up to 10,000 mm/min enables effective mixing of samples with high viscosity (blood, feces, etc.).

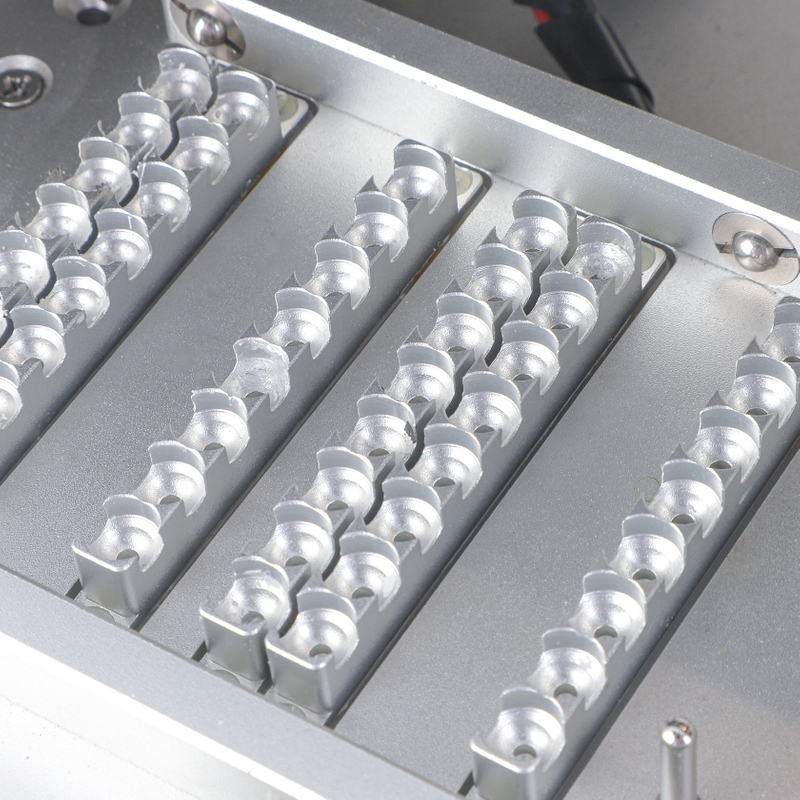

● Multi Heating Modules: Multiple heating modules with individual heating controls ensures temperature accuracy for lysis and elution.

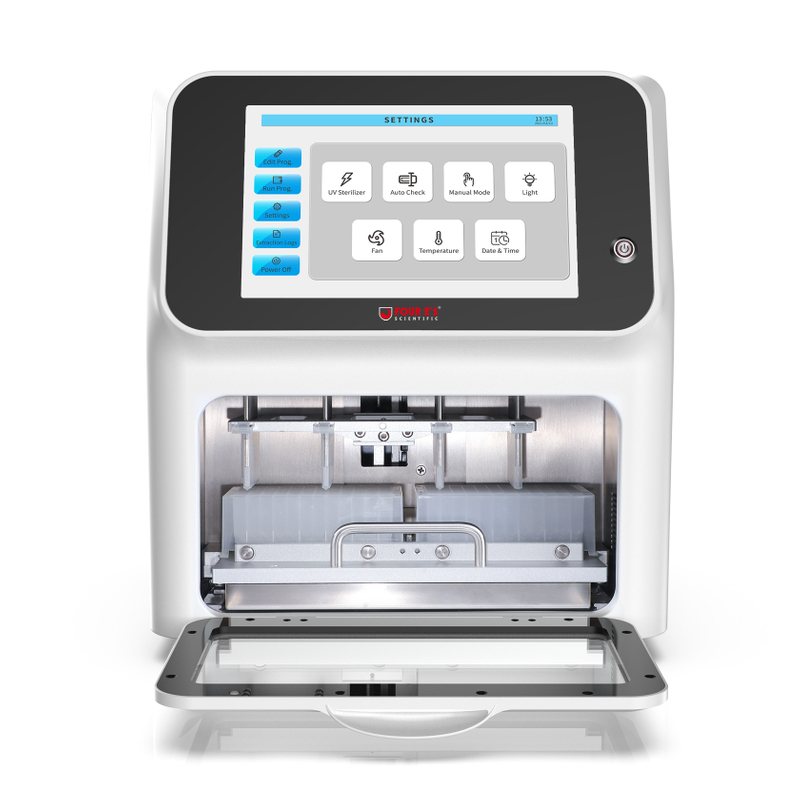

● Safe and Reliable: The operation will automatically suspend once the safety door opens and only resumes after the safety door is shut, which provides better protection for users.

Automated nucleic acid extraction,automated nucleic acid extraction machine,automated nucleic acid extraction system price


MutiEX 032

Volume Capacity


Sample Quantities


Plate Quantity


Plate Type

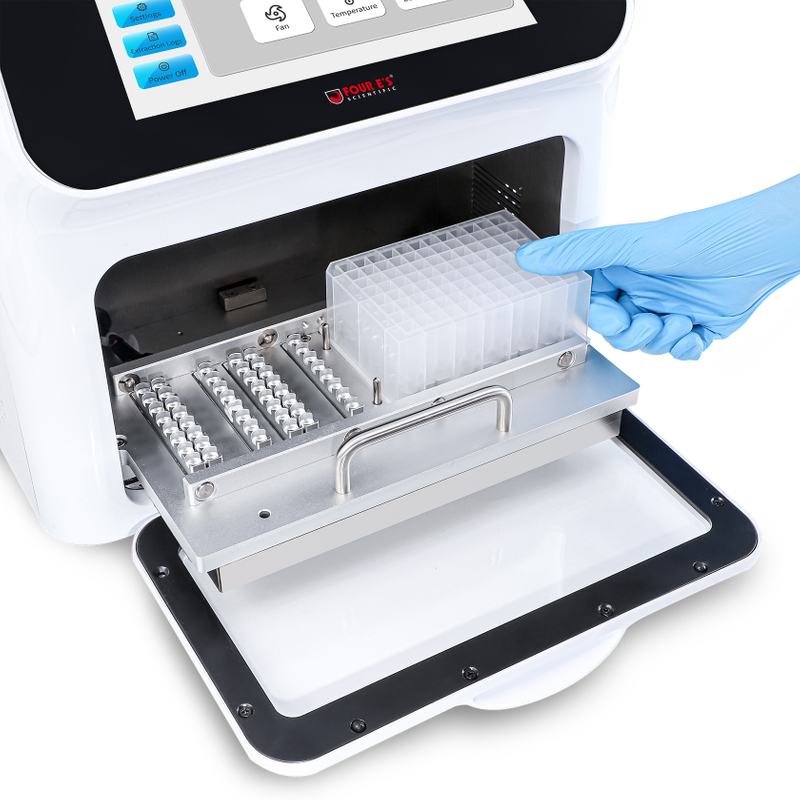

96-well deep-well plate

Processing Time

20min-40min/run (depending on reagent types and volumes)

Reagent Type

Magnetic bead-based reagent kits (open system)

Program management

Create, edit, and delete options available

Heating Temp.

Room Temp.~ 125℃

Mixing Intensities

Adjustable / 8 Levels

Max. Stirring Speed

10 Hz

Magnetic Bead Recovery Rate


Inter-well Purification Variation


Working Noise


Data Storage Capacity

>500 programs




10-inch color touch screen



Contamination Control

UV light

Power Supply

220-240VAC, 100-120VAC, 50/60 Hz



Extension ports

2 USB port, 1 Ethernet port
