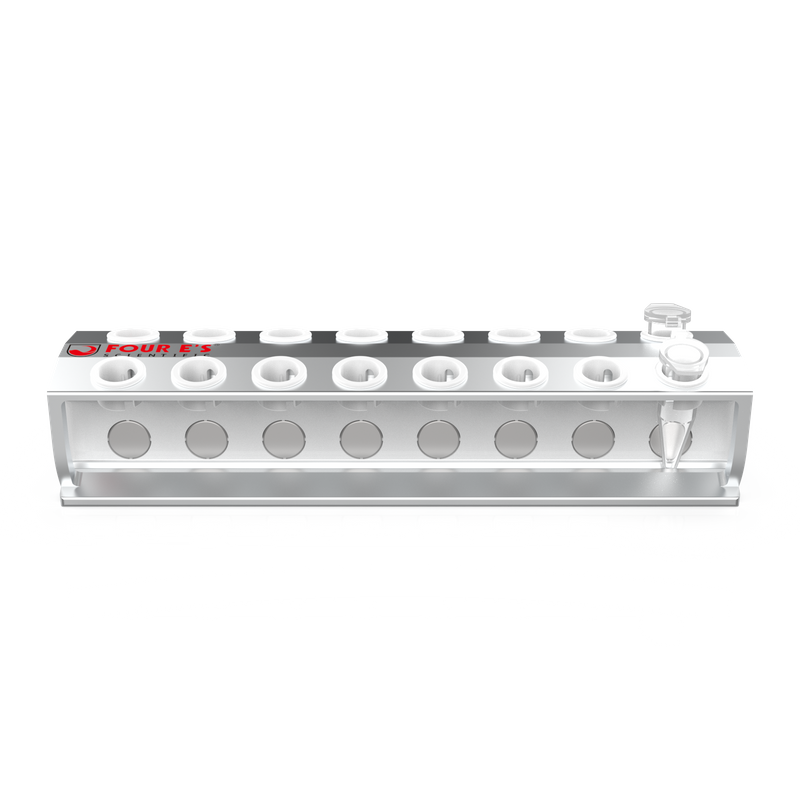

Magnetic Racks (16-well)

Magnetic rack MR216 is used for preliminary magnetic beads purification of biological samples, such as Protein, Nucleic acid or cell-lines.

General Process:
• First, mix magnetic beads and sample in a tube
• The magnetic beads will bind to the target within 10 seconds
• Place the tube/s into the Magnetic Rack
• The beads along with the bound target will cling magnetically to the side
of the tube wall
• The remaining supernatant can be removed to obtain the purified target.

Availability:
Magnetic Racks (16-well)
Magnetic Racks (16-well)
Magnetic Racks (16-well)
Magnetic Racks (16-well)
Magnetic Racks (16-well)

FEATURES

•      Provides effective separation for up to 16 samples per run.

•      Comes with adapter ring, making it suitable for holding 1.5 ml tubes from different manufacturers.

•      Stable performance at a wide temperature range (-20℃-80℃).

•      Fast Separation: Magnetic beads separation within 10 seconds.

•      Magnets are positioned at an angle of 10° for optimal contact with the tube cone, thereby providing faster separation.

•      With detachable magnet holder for easy resuspension.

•      Capable of simultaneous magnetic bead separation: Can handle 16 tubes simultaneously.

•      Suitable purification methodology for biological samples.

•      Compact, light-weight and made from durable materials.



Applications

Sample purification for PCR & sequencing

Genomics DNA purification

NGS library construction

Long chain nucleic acid purification

Hematology

DNA concentration


Model

MR216

Holes

16

Aperture

10.9mm

Sample Capacity

1.5ml tubes

Working Volume

10-1000ul

Magnet Pull Strength

5,000g

Magnet Field Strength

>5,000 gauss

Dimension

190x43.8x39.8mm
