Diaphragm Vacuum Pump

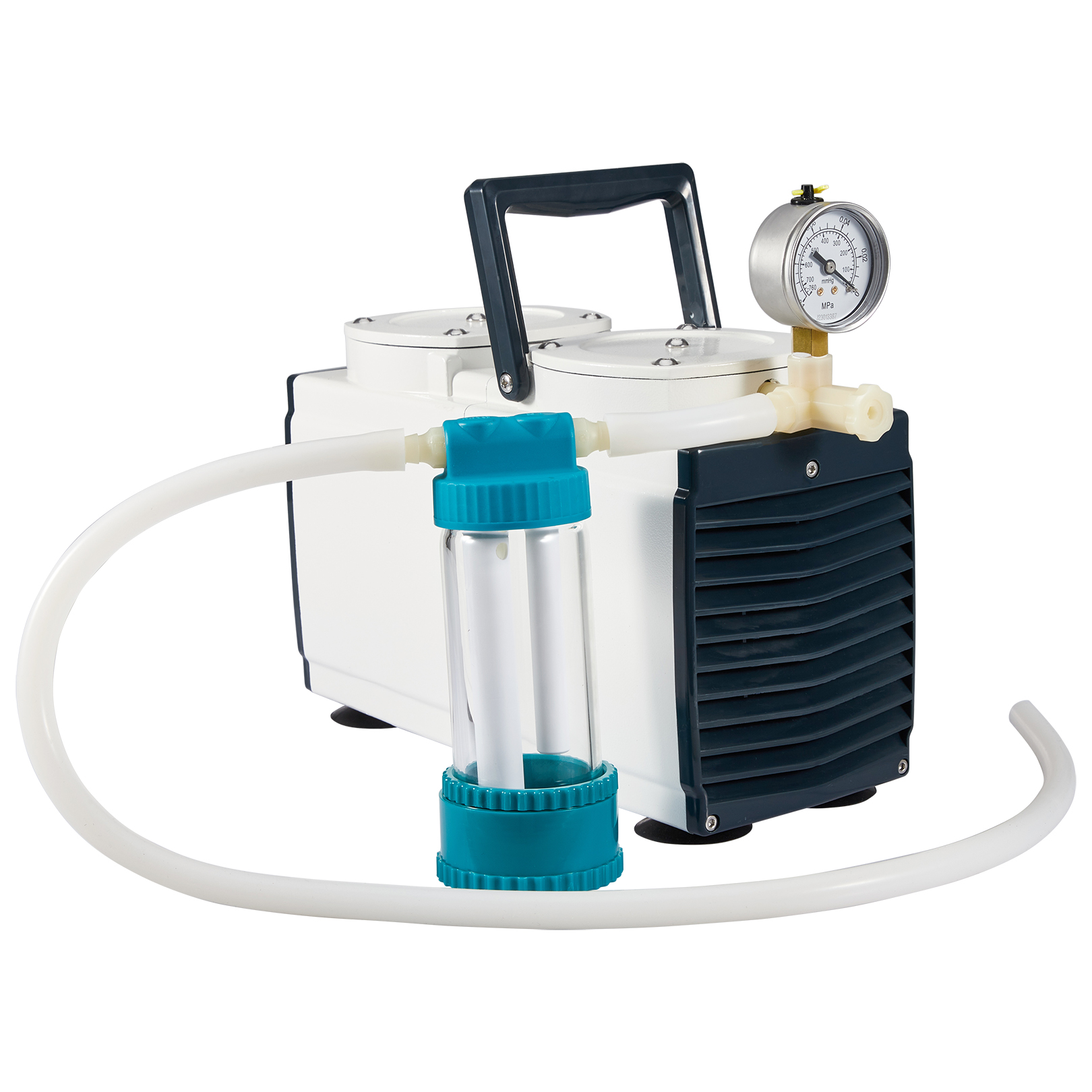

Vacuum Pump VP01 features oil-free pumping, low noise level, high efficiency and long lifespan. This diaphragm pump is an ideal laboratory equipment for vacuum filtration, vacuum distillation,rotary evaporation, vacuum drying, centrifugal acceleration, solid-phase extraction, and other application requiring chemical resistance.
Availability:

Features

  • This highly efficient vacuum pump works without any medium like oil, and thus cause no pollution. Inlet Filters are installed to prevent contamination and ensure clean air.

  • Advanced technology & materials are adopted for ideal vacuum degree and airflow rate.

  • The AC vacuum pump will power off automatically when the pump temperature reaches 130℃. Such overheat protection can prevent motor from damage because of long-time operation.

  • Made of nitrile rubber, the diaphragm is durable and anti-corrosive. The friction-free operation will not cause any heat or abrasion to the diaphragm.

  • The automated cooling and exhaust system can work continuously around the clock.

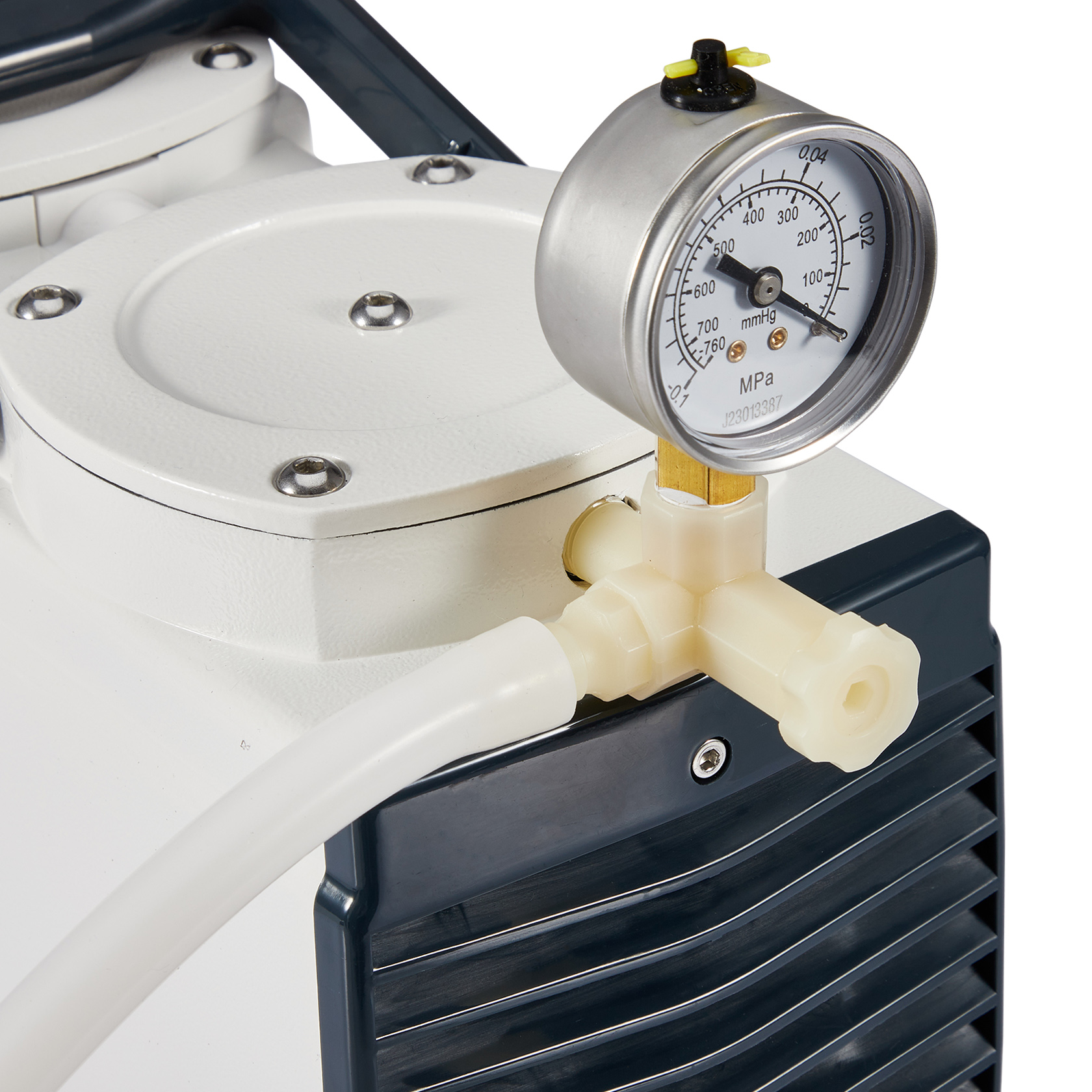

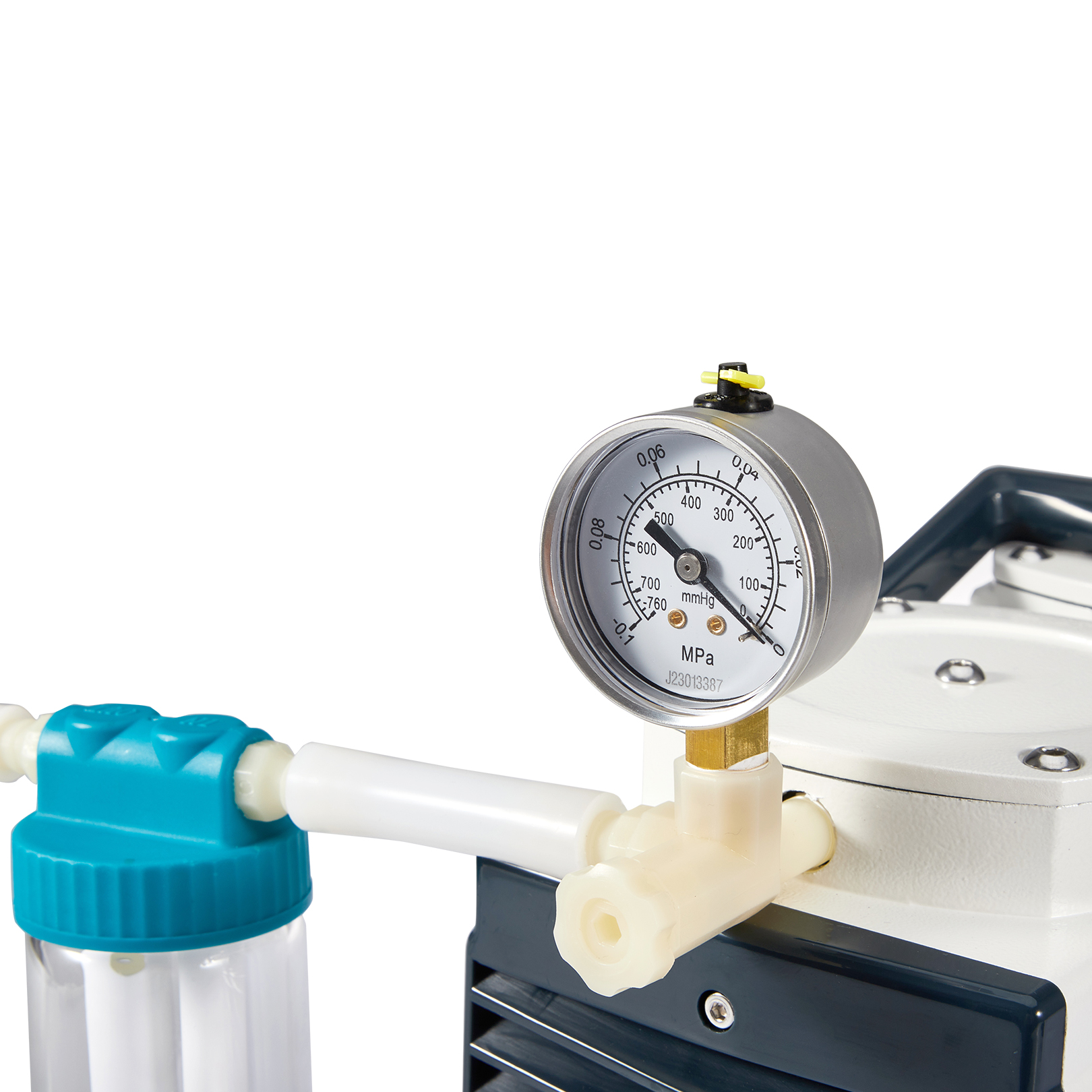

  • Adjustable pressure valve allows for easy control over vacuum degree.

  • High-quality axletrees facilitate steady running and low noise.

  • The pump and the components in contact with air are coated with PTFE, making the device resistant to chemical corrosion and extreme temperature between -190~260℃.

  • It features compact size and light weight and is easy to maintain.

  • The smooth instrument surface is free from accumulation of most impurities and particles.



Application

  • Laboratory use

  • Medical and pharmaceutical analysis

  • Chemical engineering

  • Biochemical pharmaceutical

  • Food inspection

  • Forensic science

  • Other application requiring chemical resistance.


Product name

Vacuum pump

Model No.

VP01

Pumping speed

30 L / Min

Ultimate pressure vacuum

≥0.95Mpa

50mbar

Voltage rating

220 V / 110 V; 50 Hz / 60 Hz

Housing temperature in operation

<55℃

Motor power

160 W

Inlet diameter

6 mm

Outlet

Silencer

Permissible ambient   temperature

7-40 ℃

Pump heads

2

Dimensions (L/W/H)

300 x 120 x 235 mm

Noise

<60 db

Weight

9 kg

Diaphragm valve material

NBR
