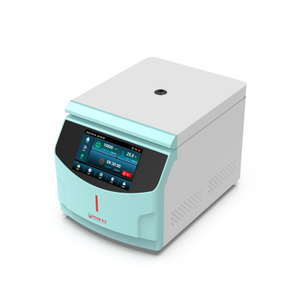

High Speed Micro Centrifuge

FOUR E’s High Speed Micro Centrifuge is designed for High speed accuracy and offers fast acceleration and deceleration. Micro-computer control gives high speed control, accuracy and excellent centrifugation. The explosion-proof and fully enclosed strong inner steel structure and a lid locking system offers full protection. It comes with an aluminum alloy rotor with a biosafety containment lid. The Speed/RCF switch lets you set either RPM or RCF. It has ‘Timed’ and ‘Continuous’ operation modes, and also a ‘PULSE’ function which allows for quick spins. Other salient features include a brush-less DC motor, and air flow design to prevent sample heating.

Availability:

Typical Applications:

● Widely used for clinical, molecular and bacteriological applications, the high-speed microcentrifuge is ideal for small volume samples, quick spin downs, cell and bacteria separations, isolation of macromolecules like various nucleic acids, proteins, lipids and separation of sub-cellular organelles.


High Speed Micro Centrifuge

Features:

● Large LED display for easy reading

● Powerful centrifugal force of 15100 x g and Max. speed of 15000rpm

● Brushless DC motor

● Explosion-proof and fully enclosed strong inner steel structure for full protection

● Heavy base eliminates vibration and movement when running

● Air flow leaking design ensures the air flow freely in operation to prevent samples being heated when high speed spinning

● High speed accuracy of ±20rpm

● Motor-driven lid locking system for high safety and reliability

● Dedicated 3D digital wheels to adjust speed and time

● Programmable operation can store up to 10 programs

● Automatic lid open upon running completion

● Timer starts when the unit reaches the set speed

● PULSE offers quick spins

● Fast acceleration and braking system

● Comes with Aluminum rotor with rotor capacity: 1.5/2.0/0.2/0.5mL x 12



Model

CF0201002

Speed range [rpm]

500-15000rpm, increment: 100rpm

Max. RCF [x g]

15100, increment: 100

Speed accuracy [rpm]

±20

Rotor capacity

0.2ml/0.5ml/1.5ml/ 2ml×12

Time range

Timed operation:30s-99m;Continuous operation

Motor

Brushless DC motor

Safety devices

Door interlock, Over-speed detection;
Over-temperature detection;
Automatic internal diagnosis

Power

Single-phase, AC110V-240V, 50Hz/60Hz, 3A

Noise level [dB]

≤56

Acceleration/Braking time[Sec]

30s↑10s↓

Dimensions [mm]

256 x 225 x 155

Weight [kg]

6

Additional features

Speed/RCF switch; Short-time run function;
sound-alert function
