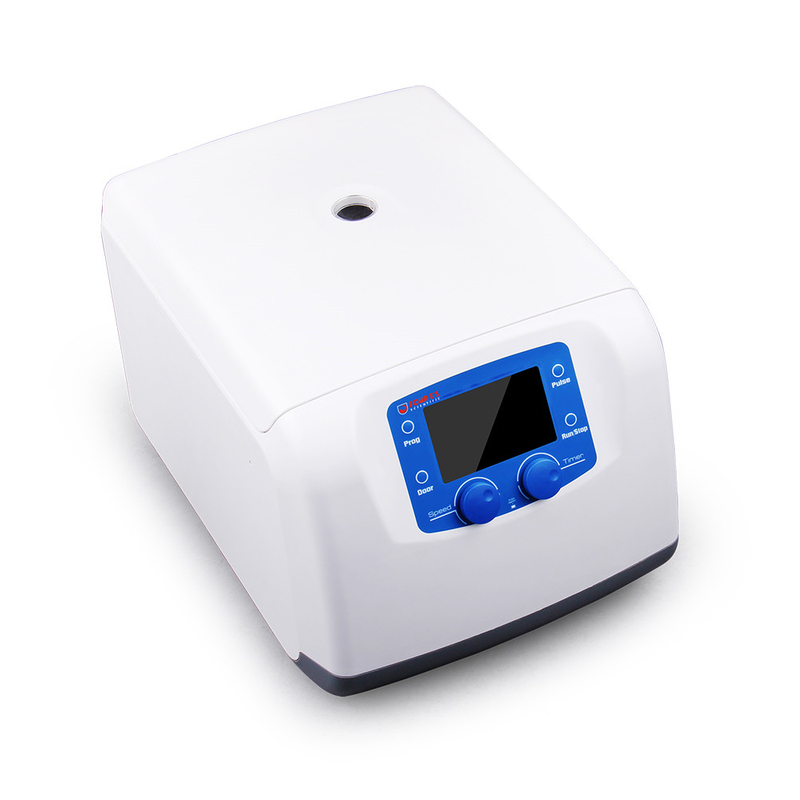

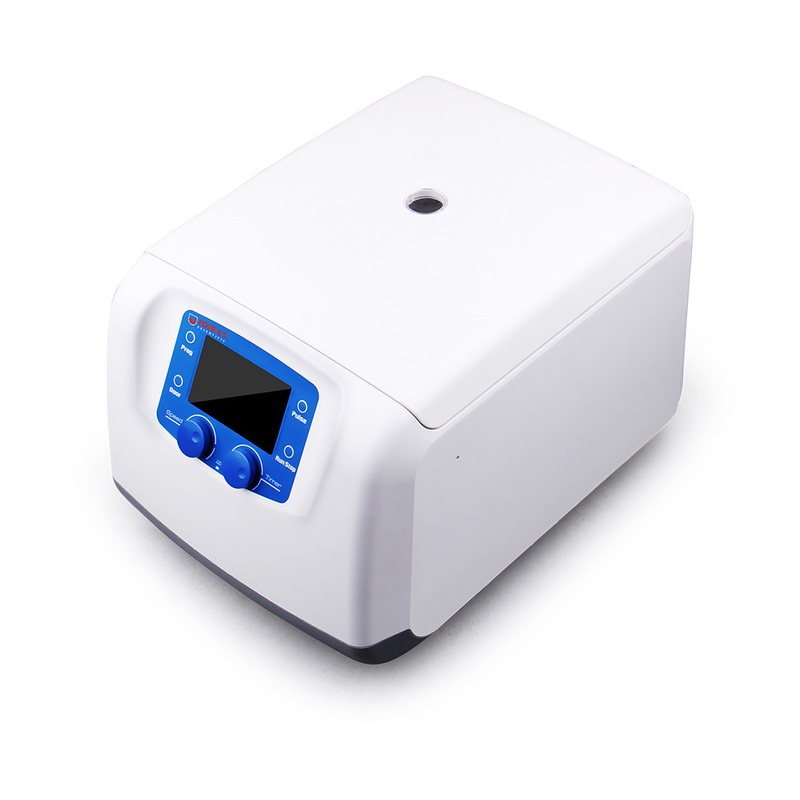

Clinical Centrifuge

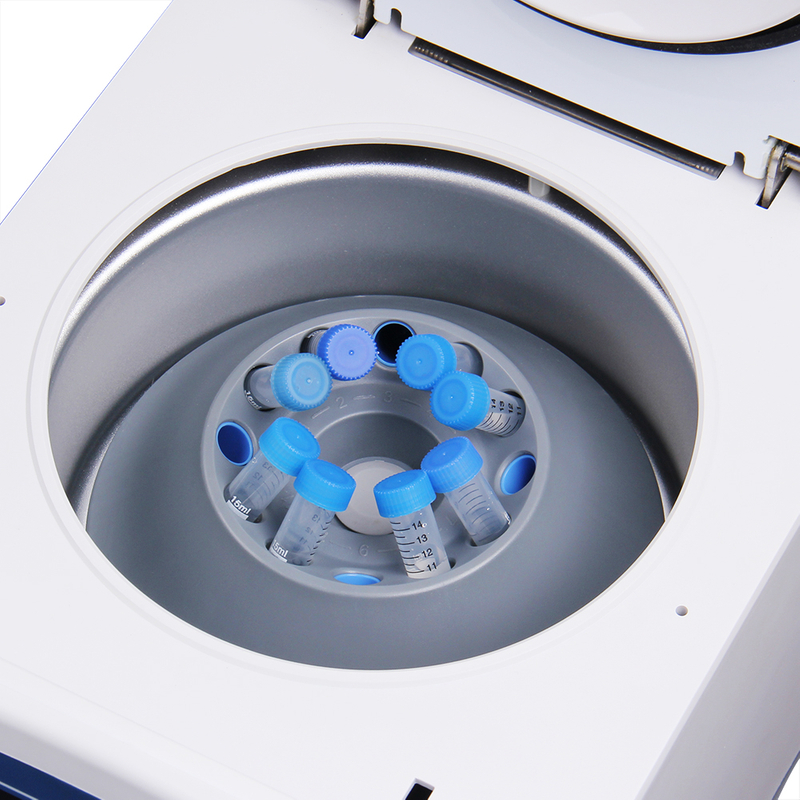

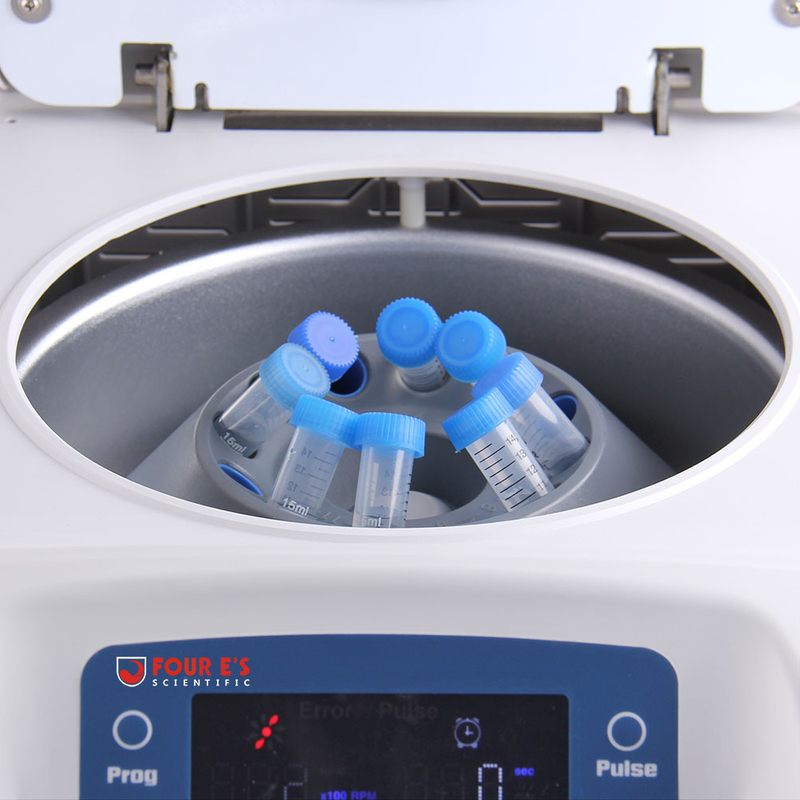

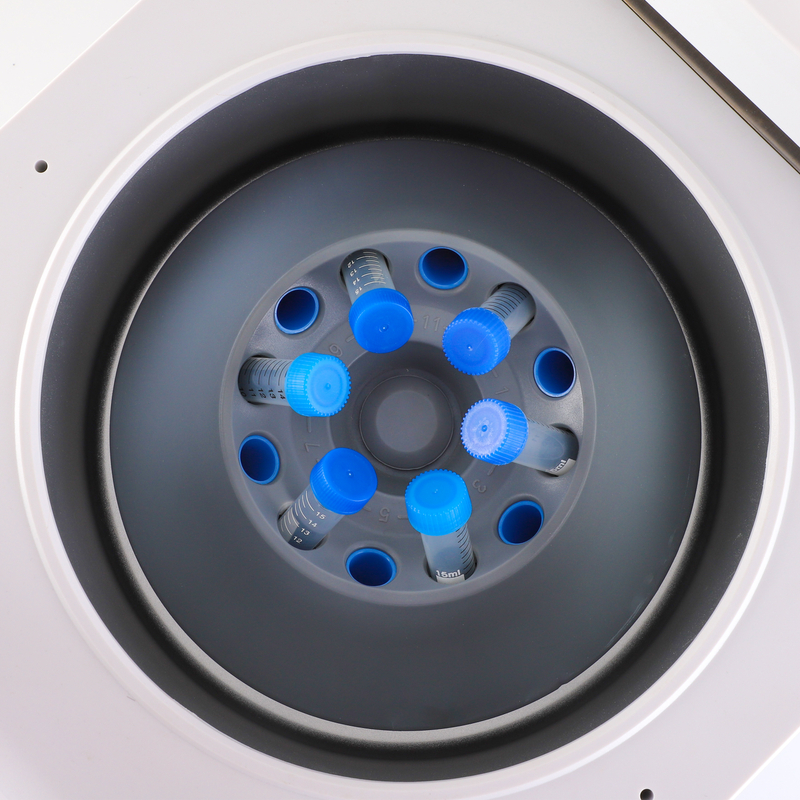

Designed for performance, reliability and quiet operation, FOUR E’s Clinical Centrifuge with its large LED display and compact footprint stands out in your Lab. Micro-computer control gives high speed control, accuracy and excellent centrifugation. The Speed/RCF switch lets you set either RPM or RCF. It has ‘Timed’ and ‘Continuous’ operation modes, and also a ‘PULSE’ function which allows for quick spins. The twelve-position rotor accommodates 5mL, 7mL or 10mL culture or blood collection tubes and up to eight 15mL tubes. Other salient features include a brush-less DC motor, self-diagnostics function when turned on, and Air flow design to prevent sample heating.

Availability:

Typical Applications:

● Widely used in the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories

● PRP preparation


Features:

● Micro-computer control gives high speed control accuracy and excellent centrifugation performance

● Brushless DC motor is maintenance-free and provides rapid acceleration and deceleration

● Rotor is made of tough, high-strength flame retardant material and is impact resistant, wear resistant and chemical resistant.

● Large LED display can show the running process and the error warning

● Independent digital wheels adjust the speed and time

● Two operation modes are available; timing operation of 30s-99m and continuous operation

● Run parameters can be adjusted after the set speed is reached

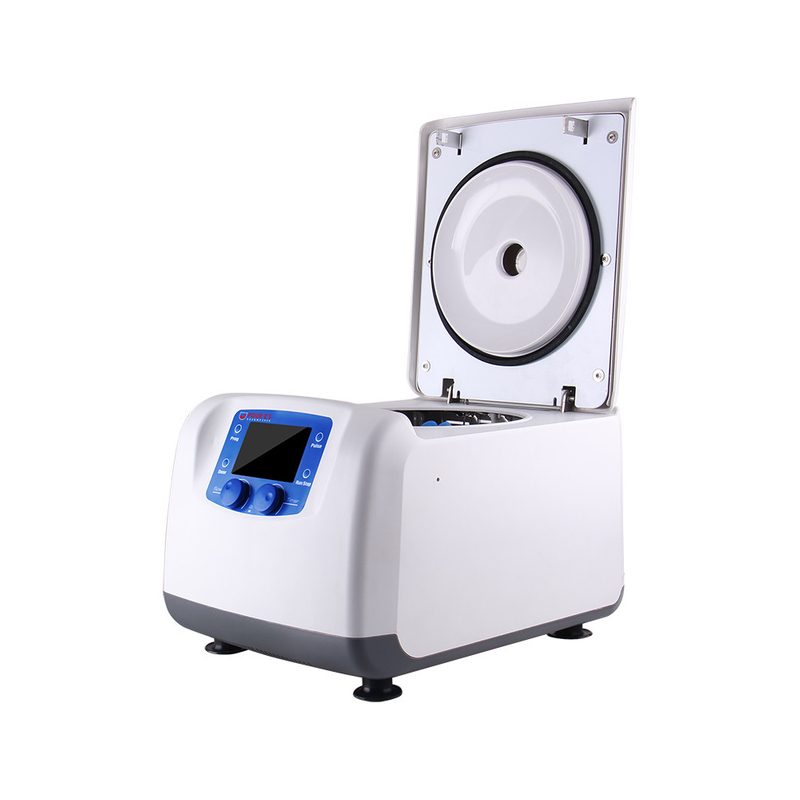

● The door interlock design makes the door open automatically after a beep when the run is completed, which can prevent samples overheating

● Performs self-diagnostics every time the device is turned on, and also displays the accumulated running time together with parameters of the last run.

● Excellent dynamic balance ensures quiet and stable running

● The short spin function is used for quick spins by pressing and holding PULSE key

CF0202003(2)

Clinical Centrifuge,Clinical Centrifuge manufacturer,custom Clinical Centrifuge factory,wholesale Clinical Centrifuge


Model

CF0202003

Speed range [rpm]

300-4500, increment: 100

Max. RCF [x g]

2200

Speed accuracy [rpm]

±45

Rotor capacity

10mL/7mL/5mLx12; 15mLx6

Time range

Timed operation: 30s-99min; Continuous operation

Motor

Brushless DC motor

Safety devices

Door interlock; Over-speed detection;
Over-temperature detection;
Automatic self-diagnostics

Power

Single-phase, AC110V-240V, 50Hz/60Hz, 2.5A

Acceleration/Braking time[Sec]

20s↑ 15s↓

Dimensions [mm]

460 x 310 x 270

Additional features

Speed/RCF switch; Short-time run function;
sound-alert function
