What is a Micro Volume Spectrophotometer?

When working with precious or limited biological samples, accuracy and efficiency in quantification are critical. This is where a micro volume spectrophotometer becomes an indispensable tool for modern laboratories. Designed for rapid and precise measurements using just a tiny sample size, this instrument is revolutionizing workflows across life sciences, molecular biology, and biotechnology labs.

In this post, we'll explore what a micro volume spectrophotometer is, how it works, its key applications, why choose a micro volume spectrophotometer, how to choose the right micro volume spectrophotometer, and why the FOUR E's Scientific Micro Volume Spectrophotometer stands out as an excellent solution for researchers.

Understanding a Micro Volume Spectrophotometer

A micro volume spectrophotometer is a compact, high-precision UV-Vis device that measures the concentration and purity of nucleic acids, proteins, and other biomolecules using as little as 0.5-2µl of sample. Unlike traditional cuvette-based spectrophotometers that require much larger volumes and often tedious preparation, micro volume spectrophotometers simplify the process, saving time and valuable samples.

These instruments are beneficial when dealing with high-value or scarce biological samples such as RNA or DNA extracted from small tissue samples or single cells.

How Does a Micro Volume Spectrophotometer Work?

The core working principle of a micro volume spectrophotometer is based on Beer-Lambert’s Law, which relates absorbance to concentration. The process operates as follows:

Sample Placement: A tiny droplet of the sample, typically between 0.5 and 2 µL, is placed on a measurement pedestal using a pipette.

Optical Pathway: The instrument automatically adjusts the path length, often between 0.2 and 1.0 mm, depending on the sample concentration.

Light Source and Detection: UV and visible light passes through the sample. The instrument detects the amount of light absorbed at each wavelength.

Data Output: The software analyzes the sample to provide concentration readings and purity ratios like A260/280.

This method delivers highly accurate and reproducible results in a matter of seconds.

Applications of a Micro Volume Spectrophotometer

Micro volume spectrophotometers are versatile tools used across various scientific fields. Key applications include:

1. Nucleic Acid Quantification

Measures DNA/RNA concentration at 260 nm.

Assesses nucleic acid concentration and checks purity through the A260/A280 ratio.

Indispensable for workflows involving PCR, qPCR, and NGS technologies.

2. Protein Analysis

Quantifies protein concentration using UV absorbance (280 nm) or colorimetric assays (Bradford, BCA).

Ensures accurate enzyme kinetics and drug-protein interaction studies.

3. Cell Culture Monitoring

Assesses bacterial or yeast growth by evaluating optical density at 600 nm (OD600).

4. Quality Control in Biopharmaceuticals

Verifies sample integrity in drug formulation and vaccine development.

5. Clinical Diagnostics

Analyzes biomarkers in small-volume patient samples.

6. Pharmaceutical Research

Detects the absorption peaks and concentrations of drugs, and evaluates drug quality and stability.

By enabling fast, precise measurements with minimal sample loss, micro volume spectrophotometers enhance research efficiency across these fields.

Why Choose a Micro Volume Spectrophotometer?

Investing in a micro volume spectrophotometer offers numerous advantages for laboratories dealing with limited sample volumes or seeking increased efficiency:

Minimal Sample Requirement: This is the most significant benefit. Even when working with limited or costly samples, researchers can achieve precise results without dilution, helping preserve valuable material.

Rapid Measurements: Measurements are typically completed in seconds, significantly reducing analysis time compared to traditional methods. High throughput capability is crucial for efficiently handling a large volume of samples.

Ease of Use: Most micro volume spectrophotometers feature intuitive software interfaces and require minimal user training. Sample loading and cleaning are also generally quick and straightforward.

No Cuvettes Required: Eliminating the need for cuvettes not only saves on consumables costs but also removes the potential for errors associated with cuvette handling and cleaning.

High Accuracy and Precision: Advanced optics and detection systems ensure reliable and reproducible results.

Versatility: While primarily used for nucleic acid and protein quantification, many micro volume spectrophotometers can also perform other photometric assays and spectral scans, expanding their utility in the lab.

Purity Assessment: For nucleic acid samples, these instruments can often calculate purity ratios (e.g., A260/A280 for protein contamination, A260/A230 for organic contaminant detection), providing crucial information about sample quality.

Space-Saving: Their small footprint makes them suitable for laboratories with limited bench space.

How to Choose the Right Micro Volume Spectrophotometer?

When selecting a micro volume spectrophotometer, consider the following factors:

Budget & Brand Reputation: Reliable manufacturers like FOUR E's Scientific offer a balance of quality and affordability.

Wavelength Range: Verify it covers the necessary spectra for your applications.

Sample Volume Range: Ensure it meets your lab’s typical sample sizes.

Ease of Cleaning: Opt for systems with easy-to-clean surfaces to prevent cross-contamination.

Software & Connectivity: Look for models with data export and compatibility with lab software.

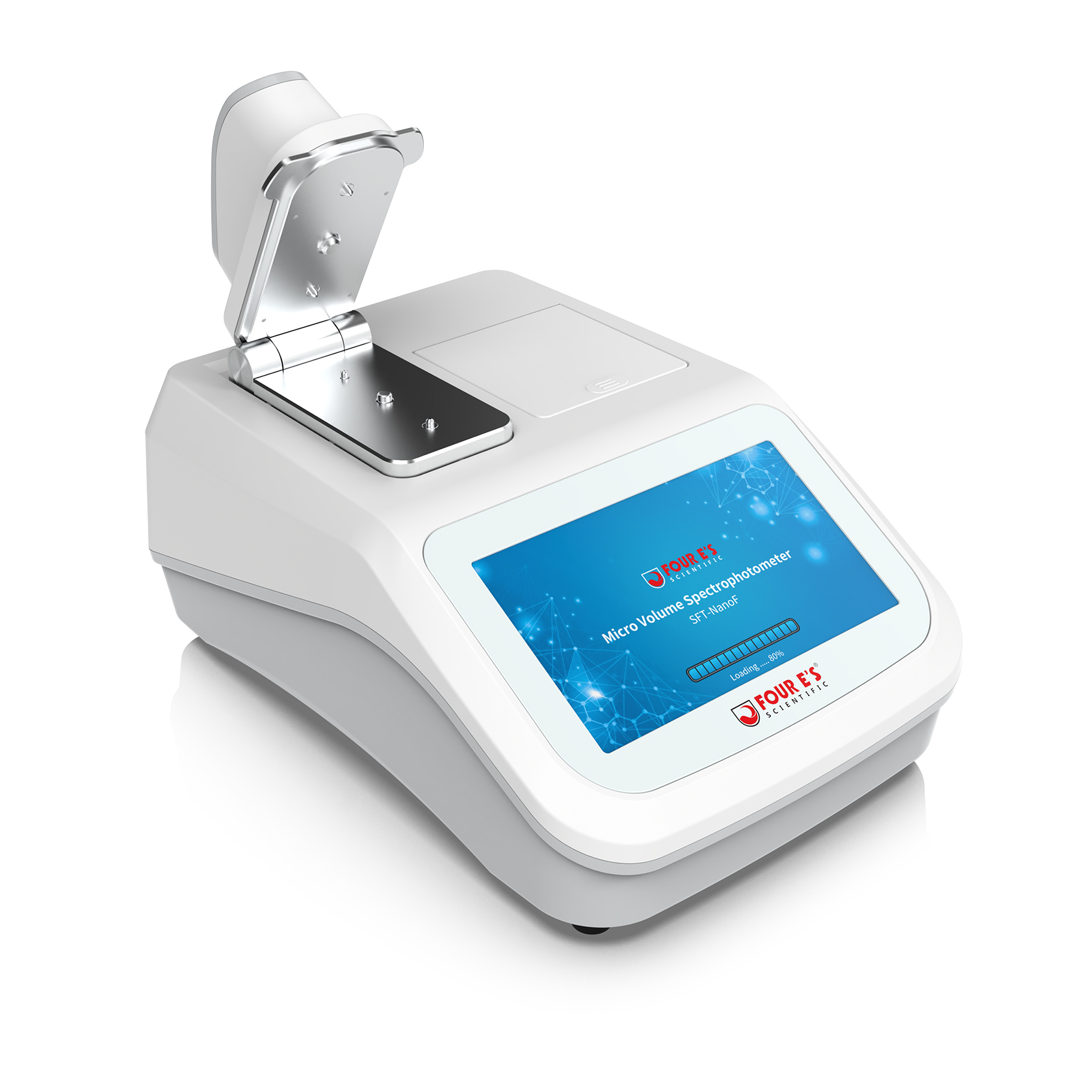

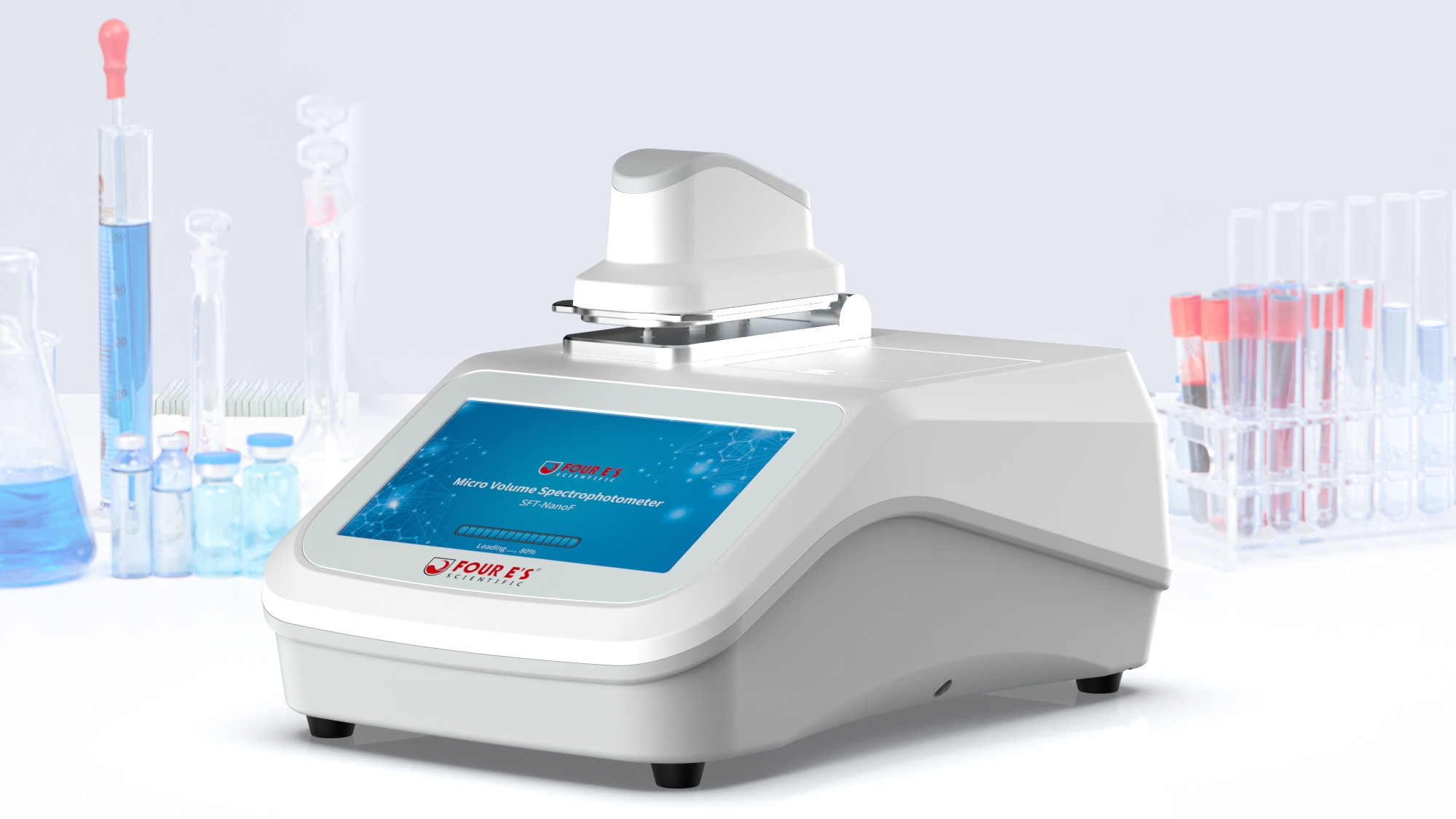

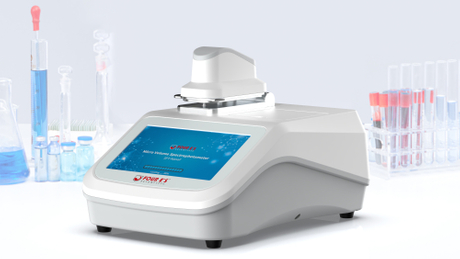

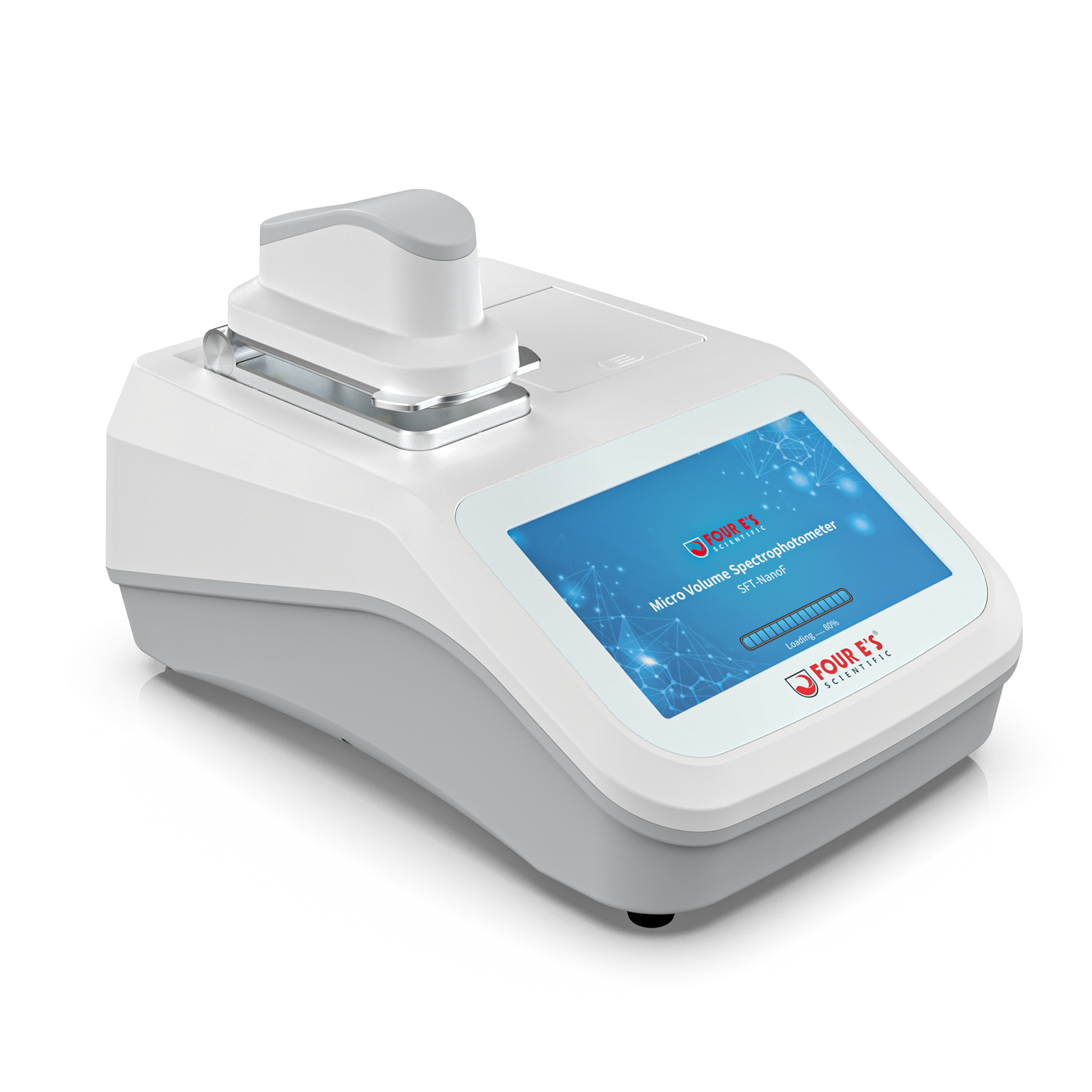

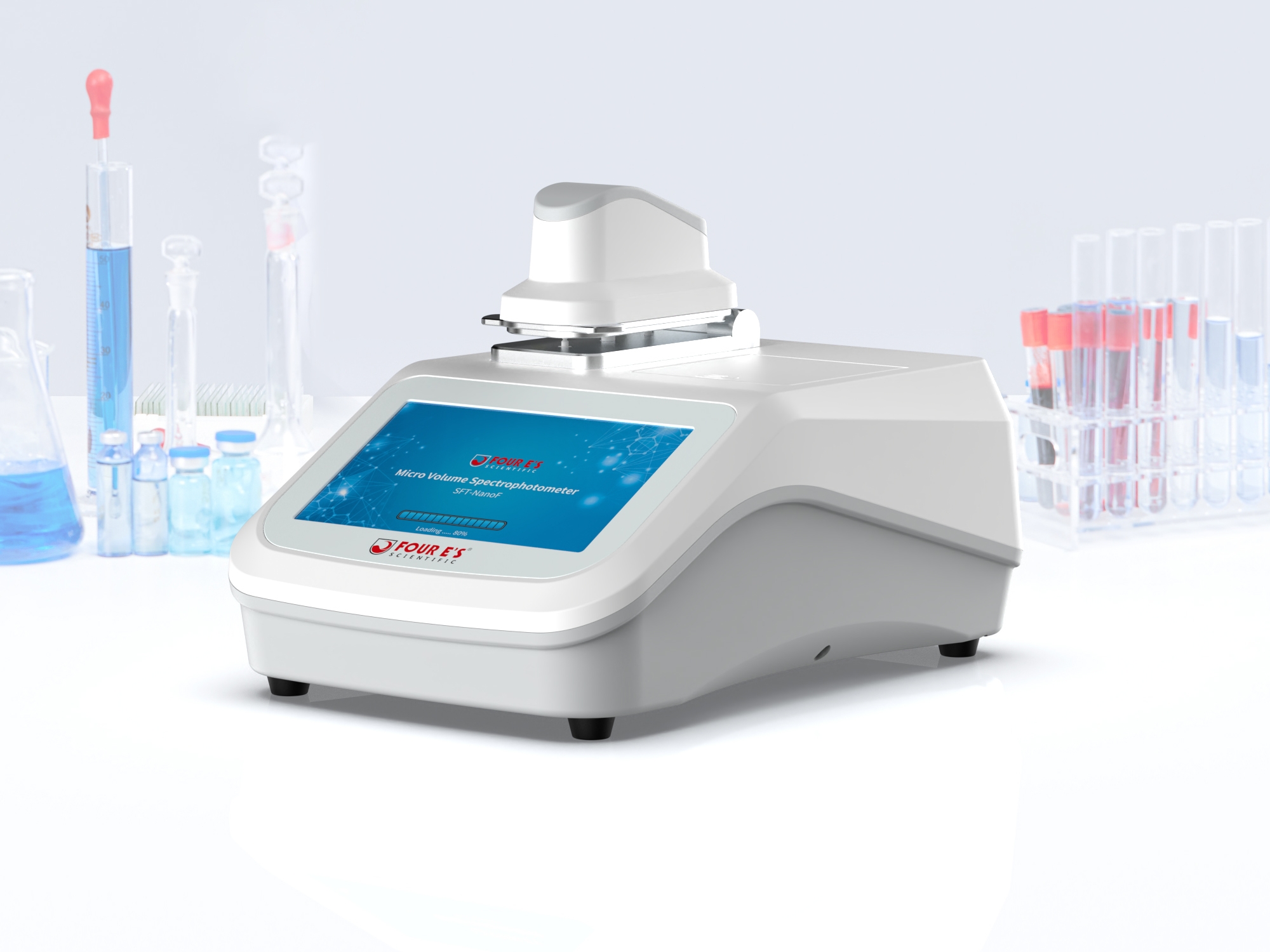

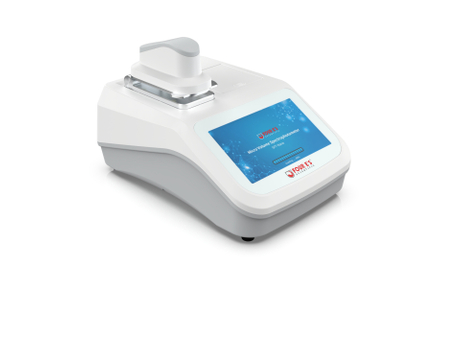

Recommended Product - The Micro Volume Spectrophotometer by FOUR E's Scientific

If you're seeking a reliable, user-friendly, and feature-rich solution, the Micro Volume Spectrophotometer by FOUR E's Scientific is an outstanding choice.

Equipped with a 7-inch color touchscreen, the Micro Volume Spectrophotometer operates independently without a PC. The broad spectral range (190–800 nm) enables thorough analysis of DNA, RNA, and proteins. Requiring just 0.5-2µl of sample, it's perfect for micro-volume detection with excellent repeatability. Key advantages include:

Xenon Flash Lamp: Immediate startup, stable performance, long lifespan (up to 10 years).

Intuitive Interface: Easy navigation for all users.

OD600 Functionality: Perfect for microbiology labs.

Fluorescence Detection: The upgraded model (SPT-NanoF) features a fluorescence detection module. It is ideal for ultra-low concentration samples (as low as 0.5pg/µl dsDNA).

Built-In Printer & USB: Instant data export and documentation.

Conclusion

A micro volume spectrophotometer is an essential tool for modern laboratories, enabling fast, accurate, and waste-free sample analysis. Whether you're working with DNA, RNA, proteins, or other biomolecules, this technology streamlines workflows and conserves valuable samples.

By integrating a micro volume spectrophotometer into your workflow, you can achieve faster, more reliable results while minimizing sample waste—making it a smart investment for any research or diagnostic lab.
