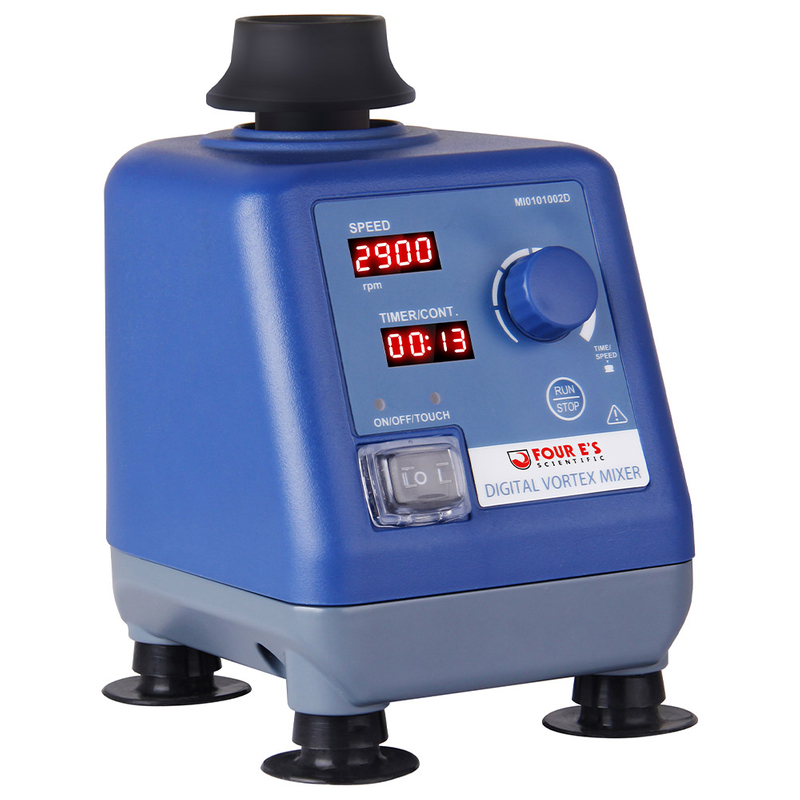

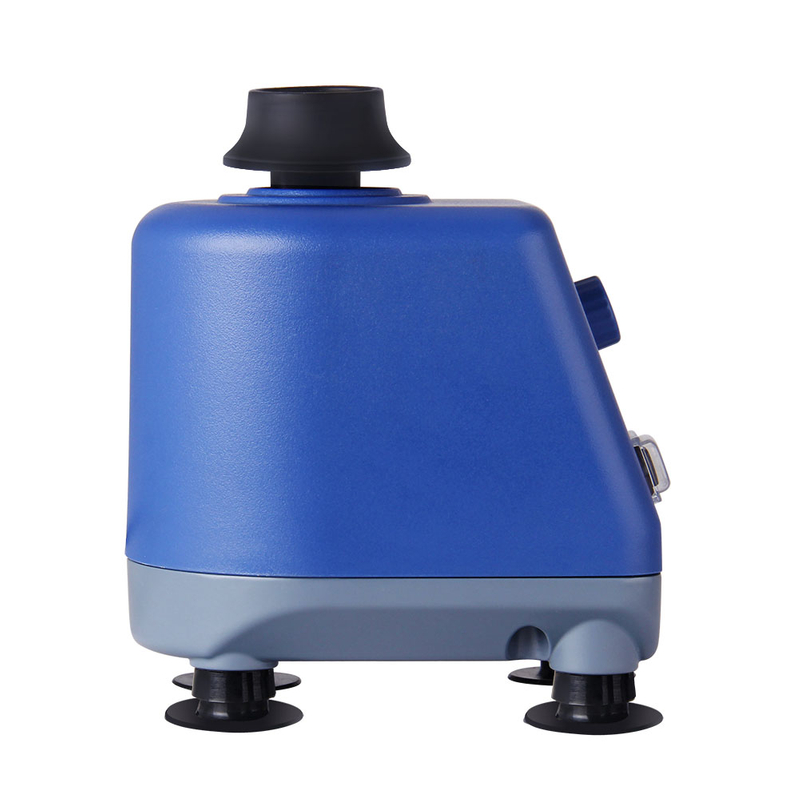

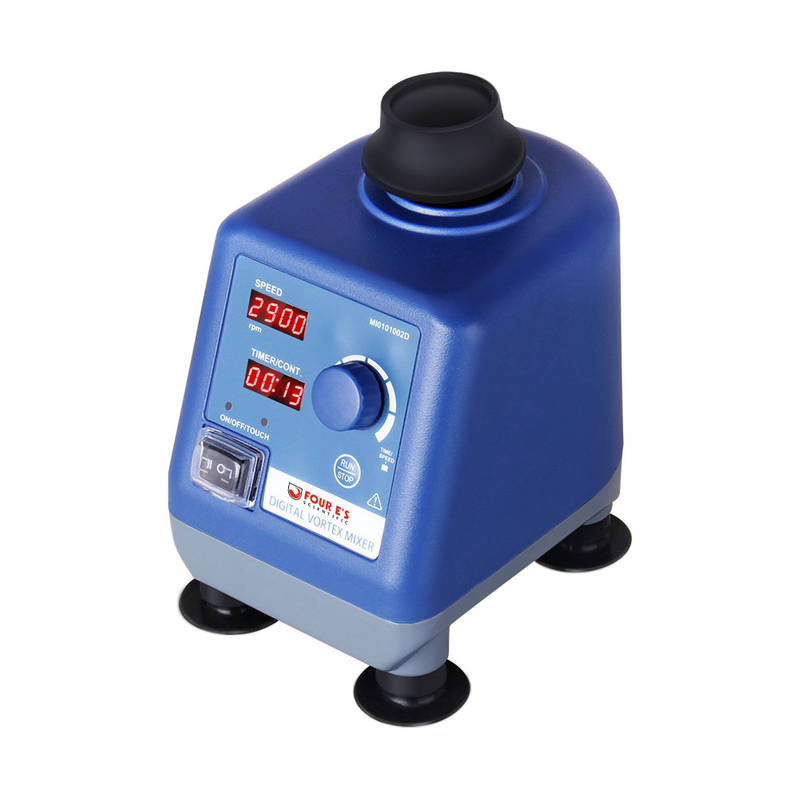

Vortex Mixer with LED Digital Display

The Variable Speed Vortex Mixer comes with separate LED displays for Speed and Time. This combined with a rotary dial for speed & time selection, enables accurate control of speed and time settings. The sturdy metallic base and perfect dynamic balancing eliminates any movements and dampens vibrations while mixing. The Mixer has three operating modes: touch, timer, and continuous modes. A three-way power switch changes mode of operation from‘touch’to‘timer’or‘continuous’. The Vortex Mixer is designed for use with interchangeable accessory attachments that can hold test tubes, flasks, beakers, and microtiter plates.

Availability:

Typical Applications:

● For mixing liquids

● Touch mode for single test tubes

● Continuous mode for single or several vessels


Features:

● LED display for easy reading of time and speed

● Wide speed range of 0-3000rpm

● Orbital diameter of 6mm

● Touch mode, timer mode and continuous mode are available

● Brushless motor and sturdy iron/aluminum casting base

● Low operation voltage(12V) for full protection

● Excellent mixing capability: can fully mix contents in 50ml tubes within 3 seconds

● Perfect dynamic balance design can eliminate any movement while mixing

● Various applications with different interchangeable attachments

● Power supply is CE, cULus, CCC, SAA and FCC certified


Variable Speed Vortex Mixer with LED Digital Display,Mini Vortex Mixer,cheap vortex mixer,digital vortex mixer


Model

MI0101002D

Operation mode

Continuous / touch operation

Type of movement

Orbital

Orbital diameter

6mm

Speed range

0-3000rpm

Speed display

LED

Permissible ambient temperature

5-40°C

Permissible relative humidity

80%

Protection class accordin to DIN EN 60529

IP21

Voltage [VAC]

200-240 / 115 /100V compatible

Power [W]

36

Frequency [Hz]

50/60

Motor rating input [W]

30

Motor rating output [W]

15

Dimensions (W x H x D)

107x146x166mm

Weight [kg]

3
