The Mini Vortex Mixer comes with Touch function and excellent Mixing capabilities. The patented foot-pad designs hold the vortex mixer firmly in place, enabling one-hand operation.
| Availability: | |
|---|---|
MI0101001
Typical Applications:
Widely used in cosmetic and laboratory industry to mix small vials or tubes of liquid
Features:
Touch function
Fixed speed of 5000rpm
Orbital diameter of 6mm
Excellent mixing capability can make full 50ml containers mix within 5 seconds

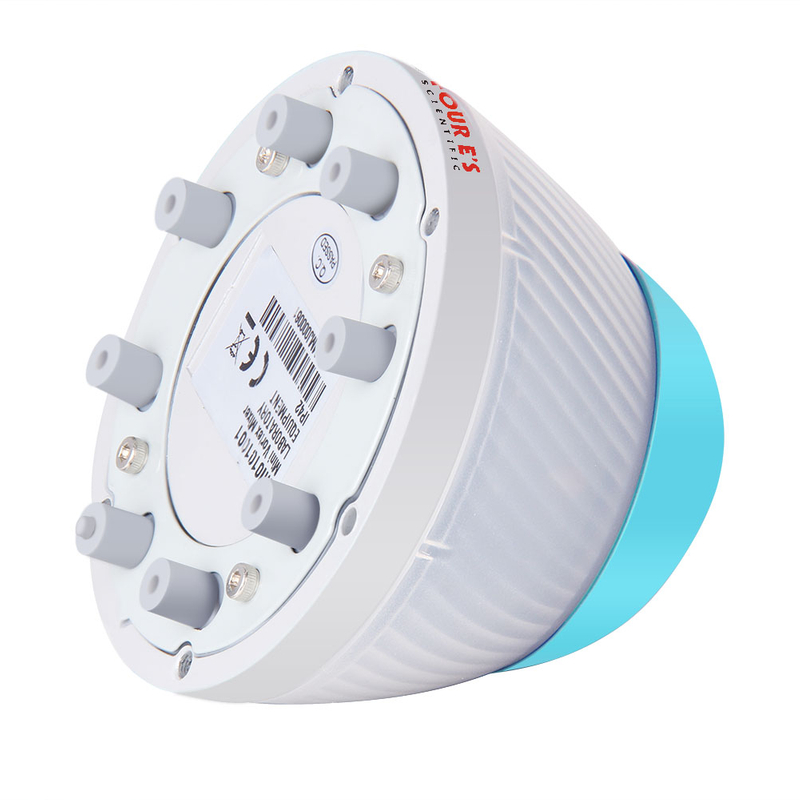

Patented foot pad design can hold the vortex mixer firmly in place when mixing
Low operation voltage (12V) for full protection
Power supply is CE, cULus, CCC, SAA and FCC certified
Model | MI0101001 |
Rated voltage [VAC] | 100-240 |
Rated frequency [Hz] | 50-60 |
Output voltage [VDC] | 12 |
Output power [W] | 7.2 |
Speed [rpm] | 5000 |
Operating time [%] | 100 |
Protection class | II |
Pollution degree | 2 |
Overvoltage category | II |
EN 60529 protection Class | IP42 |
Permissible relative Ambient humidity [%] | 80 |
Permissible Ambient temperature [°C] | 5-40 |
Weight [kg] | 1 |
Test tube size [mm] | Φ30 |
Dimensions: (Φ x H) [mm] | 100 x 78 |
Type of movement | Orbital |
Orbital diameter [mm] | 6 |
Touch function | Yes |
