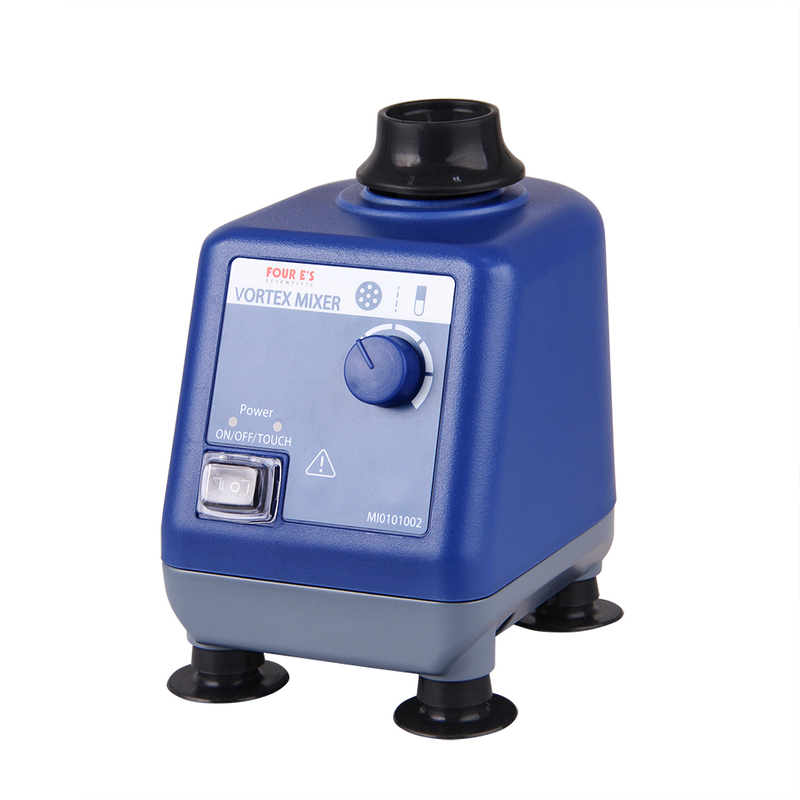

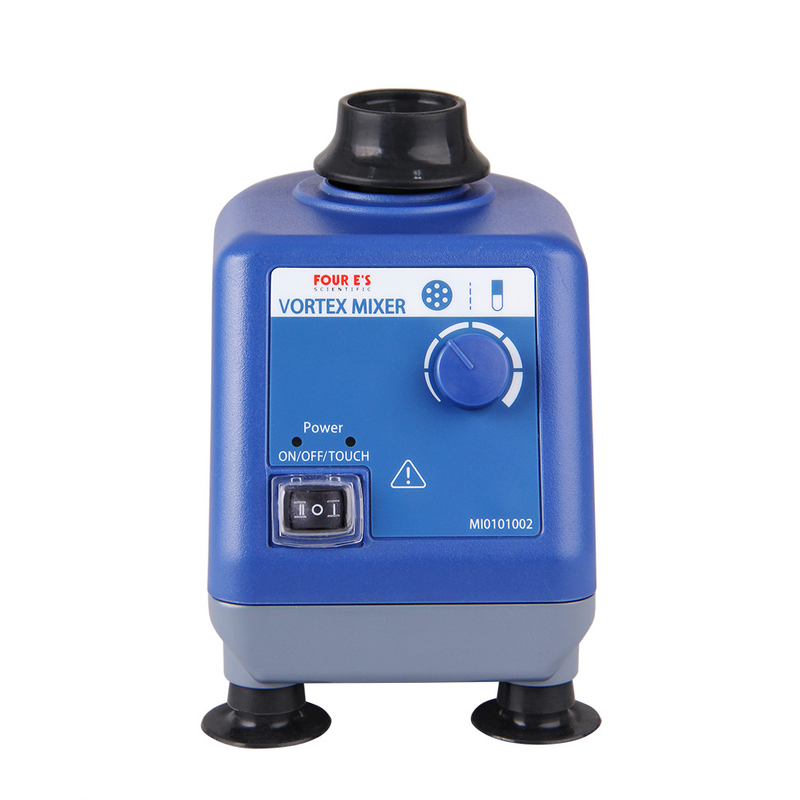

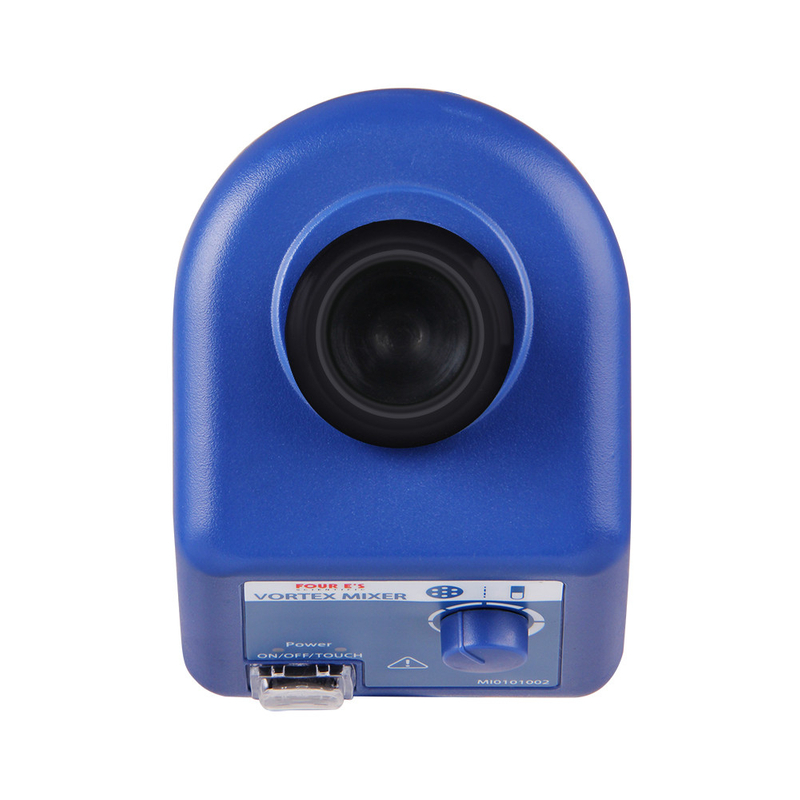

Vortex Mixer

The Variable Speed Vortex Mixer comes with a rotary dial for speed & time selection. The Mixer has three operating modes: touch, timed, and continuous modes. A three-way power switch changes mode of operation from ‘touch’ to ‘timed’ or ‘continuous’. The Vortex Mixer is designed for use with interchangeable accessory attachments that can hold test tubes, flasks, beakers, and microtiter plates. The sturdy metallic base and perfect dynamic balancing eliminates any movements and dampens vibrations while mixing.

Availability:
Vortex Mixer
Vortex Mixer
Vortex Mixer
Vortex Mixer
Vortex Mixer

Typical Applications:

● For mixing liquids

● Touch mode for single test tubes

● Continuous mode for single or several vessels


Features:

● Wide speed range of 0-3000rpm

● Orbital diameter of 6mm

● Touch mode, timer mode and continuous mode are available

● Brushless DC motor and sturdy iron/aluminum casting base

● Low operation voltage(12V) for full protection

● Excellent mixing capability can make full 50ml containers mix within 3 seconds

● Perfect dynamic balance design can eliminate any movement in mixing

● Various applications with different interchangeable attachments

● Power supply is CE, cULus, CCC, SAA and FCC certified


Variable Speed Vortex Mixer,Variable Speed Vortex Mixer with LED Digital Display,Variable Speed Vortex Mixer manufacturer



Model

MI0101002

Operation mode

Continuous / touch operation

Type of movement

Orbital

Orbital diameter

6mm

Speed range

0-3000rpm

Speed display

Scale

Permissible ambient temperature

5-40°C

Permissible relative humidity

80%

Protection class accordin to DIN EN 60529

IP21

Voltage [VAC]

200-240 / 115 /100V compatible

Power [W]

36

Frequency [Hz]

50/60

Motor rating input [W]

30

Motor rating output [W]

15

Dimensions (W x H x D)

107x146x166mm

Weight [kg]

3
