Ultra-flat Mini Magnetic Stirrer

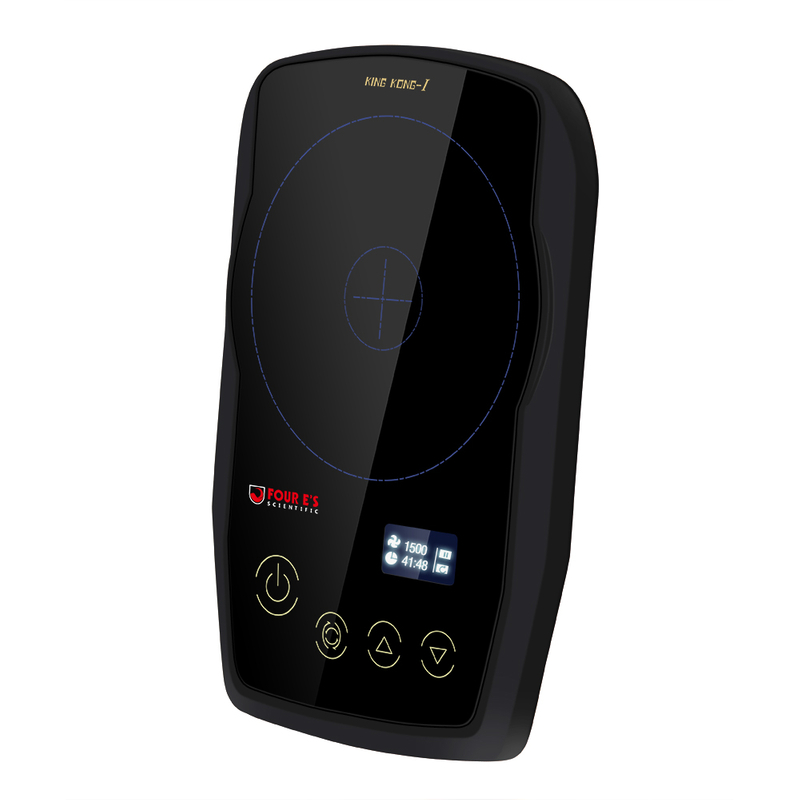

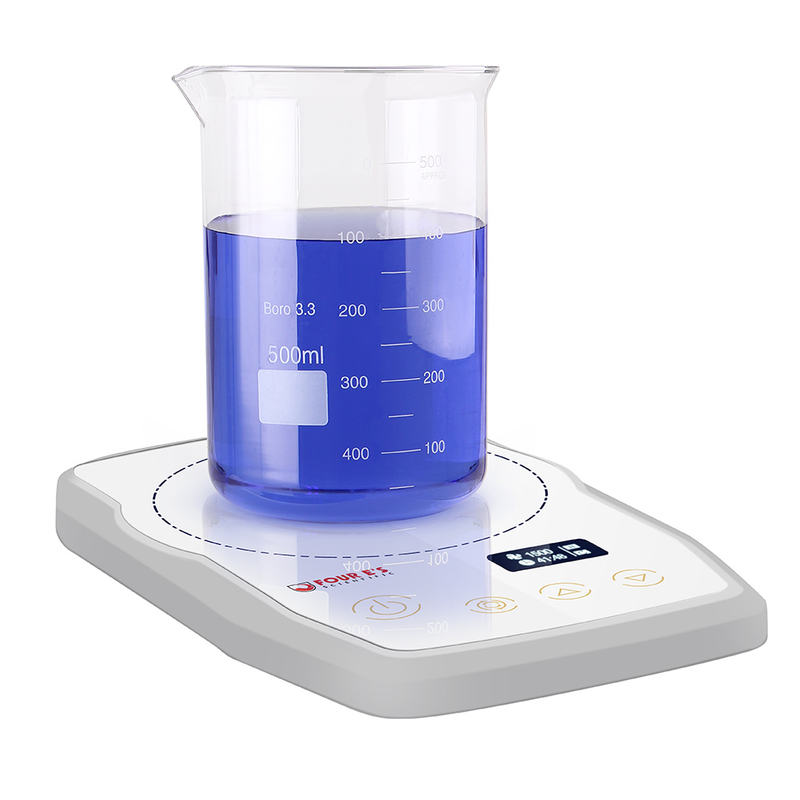

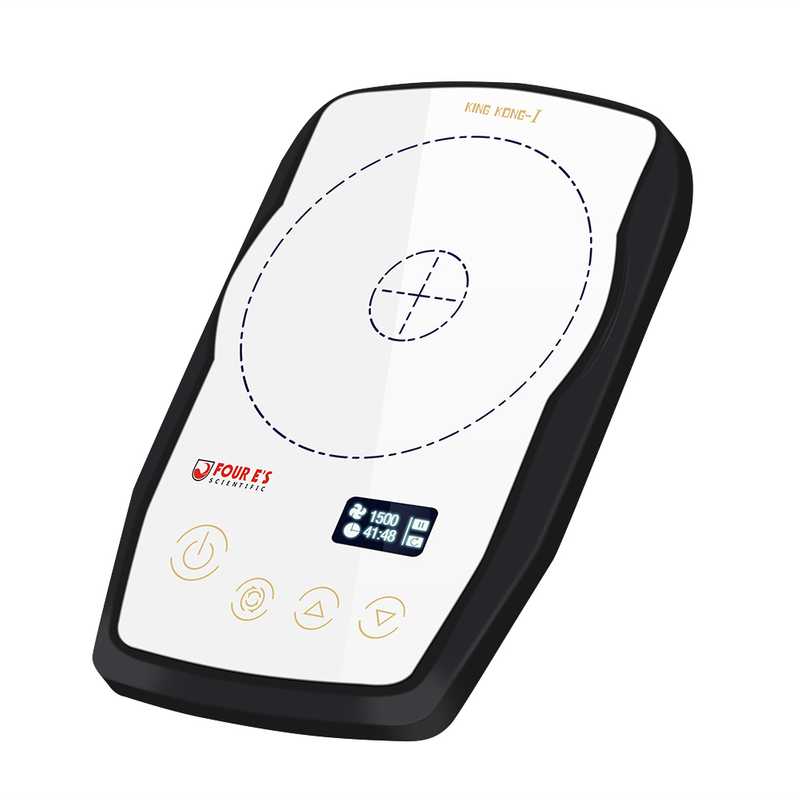

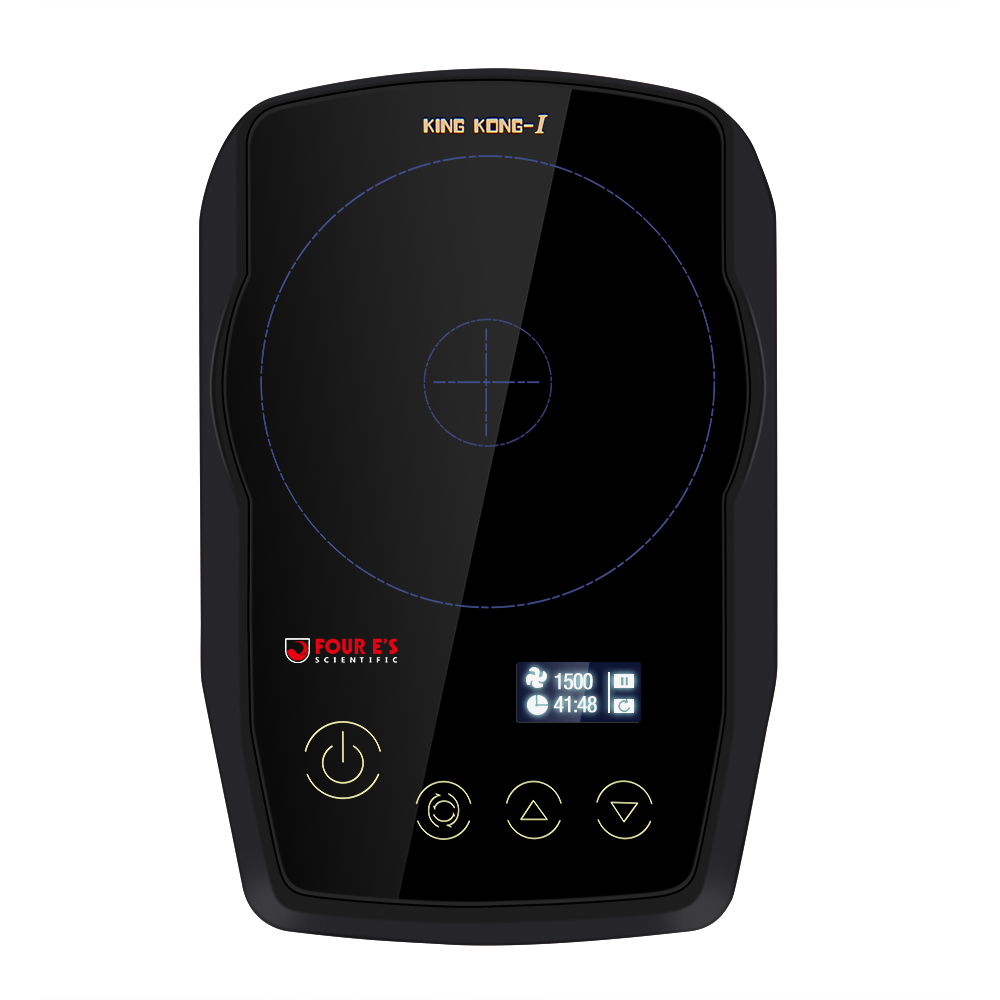

The 'King Kong’, FOUR E's Ultra-flat Mini Magnetic Stirrer with tempered glass top, touch-key and OLED display, is one of the most compact stirrers in the market. Powered by the most advanced magnetic coil technology which allows for wear-free drive, the 'King Kong' provides excellent mixing performance for volumes as large as 1 Liters at speeds ranging from 10 to 1500 rpm. The model comes in three colors: Black, White, Black & White.

Availability:
Ultra-flat Mini Magnetic Stirrer - FOUR E's Scientific
Ultra-flat Mini Magnetic Stirrer - FOUR E's Scientific
Ultra-flat Mini Magnetic Stirrer - FOUR E's Scientific
Ultra-flat Mini Magnetic Stirrer - FOUR E's Scientific
Ultra-flat Mini Magnetic Stirrer - FOUR E's Scientific
Ultra-flat Mini Magnetic Stirrer - FOUR E's Scientific
  • MI0102001D

Typical Applications:

  • Agitate the liquid for speeding up the reactions or improving mixtures

  • Commonly used for experiments in chemistry and biology industry


Features:

  • OLED display provides easy reading of the speed and time.

  • Touch key is more user-friendly and durable

  • Special black tempered glass set-up plate is waterproof, shatterproof; very easy to clean and dissipate heat.

  • The most advanced magnetic coil technology allows for wear-free drive without moving parts

  • Automatic reverse rotation every 30 seconds provides excellent mixing performance.

  • Max stirring quantity [H2O] of 1000ml

  • Speed range of 15-1500rpm

Model

MI0102001D

Stirring positions

1

Working plate material

Tempered glass

Speed range [rpm]

15-1500

Display

OLED

Max. stirring quantity [H₂O, ml]

1000

Motor rating output [W]

3

Max. stirring bar [mm]

25

Set-up surface [mm]

Φ100

Permissible ambient temperature[°C]

5-40

Permissible relative humidity

80%

DIN EN60529 protection class

IP65

Voltage [VAC]

100-240

Frequency [Hz]

50/60

Input power [W]

6

Dimension [W x D x H, mm]

117 x 12 x 180

Weight [kg]

0.3
