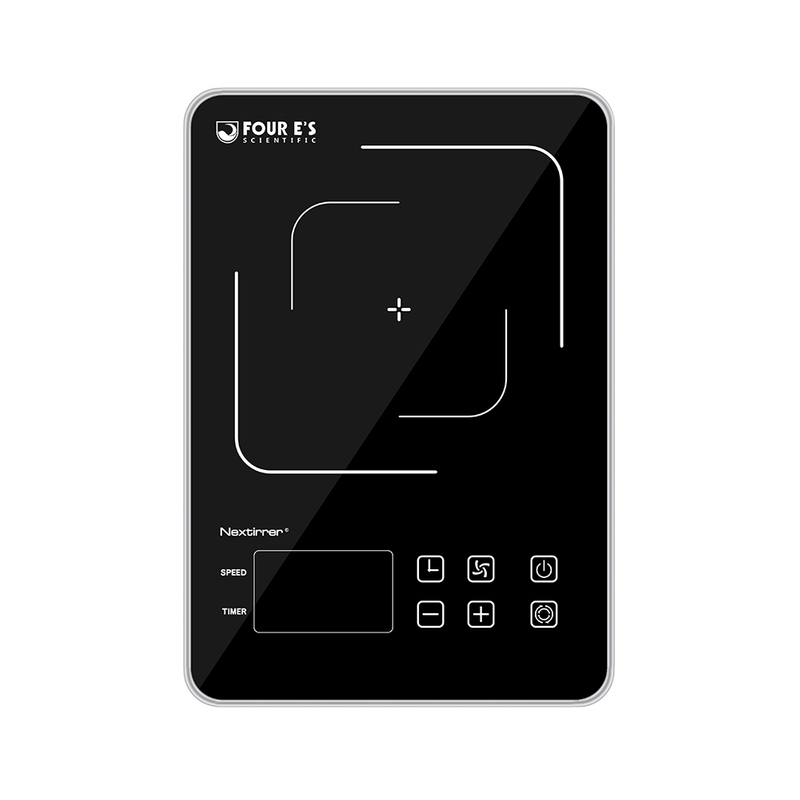

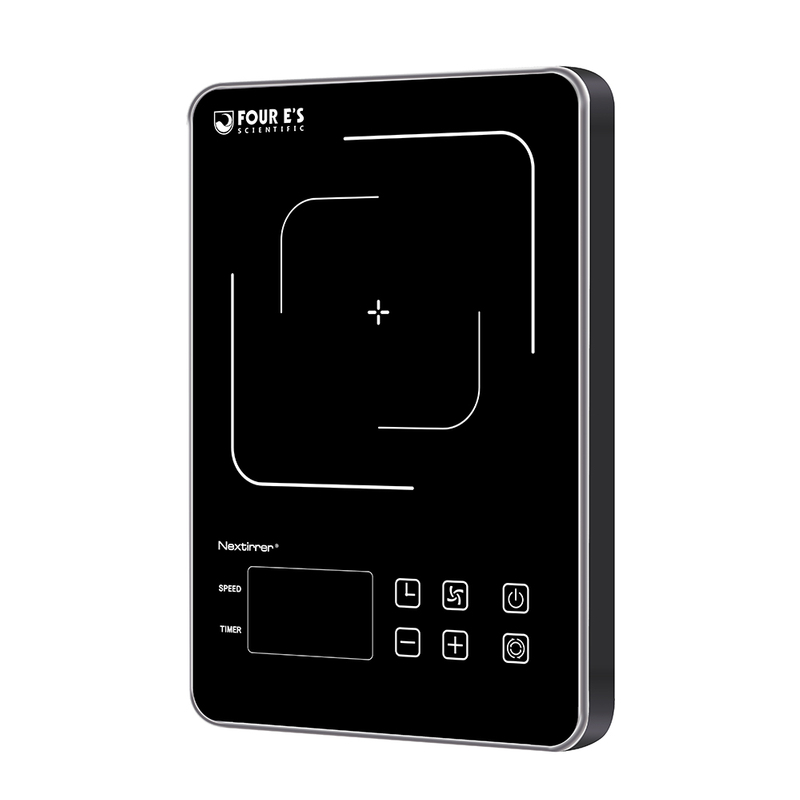

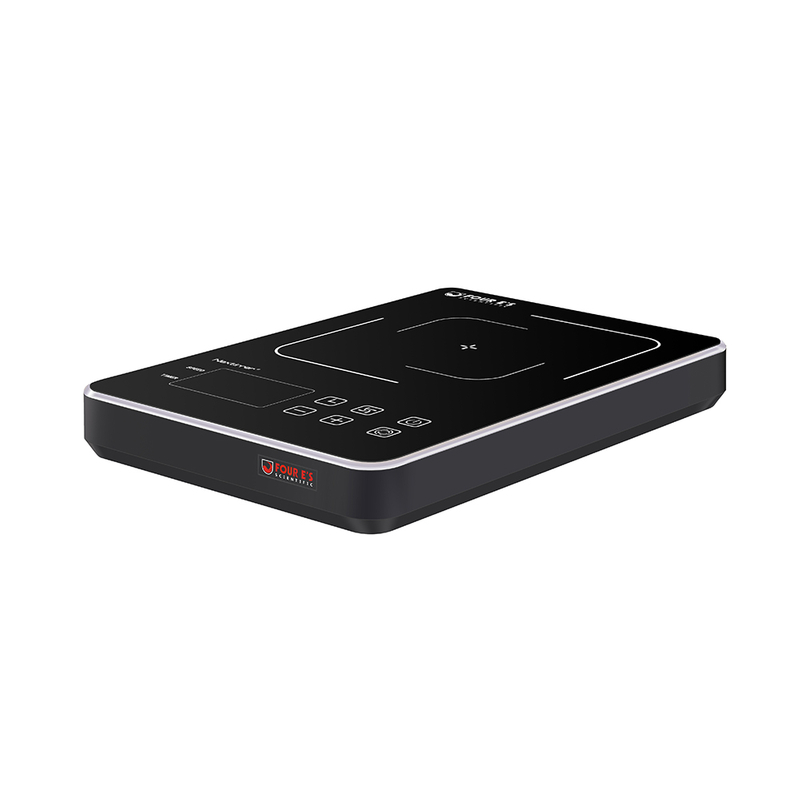

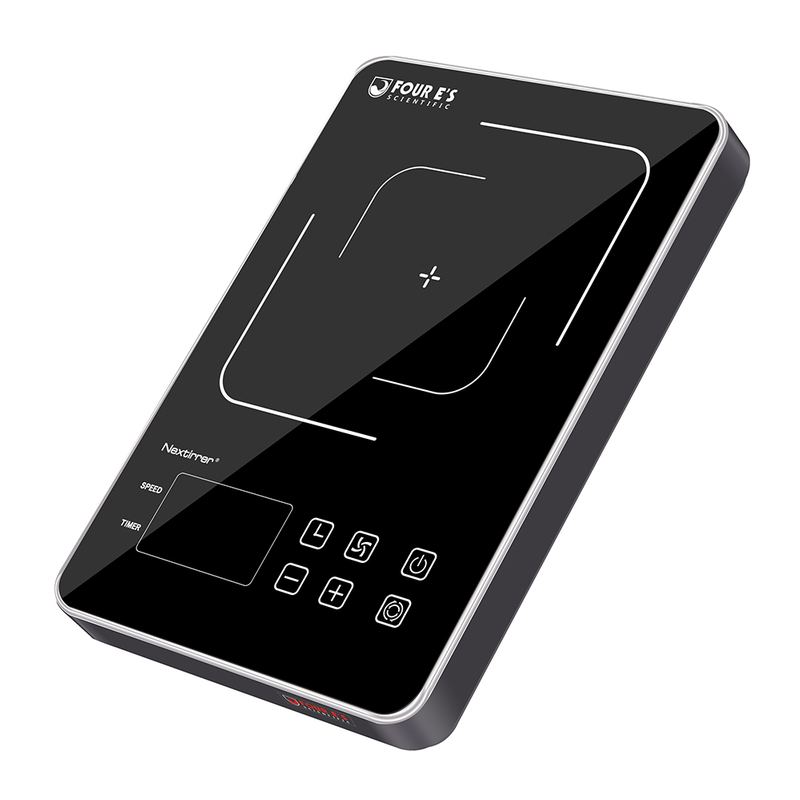

5 Inch Magnetic Stirrer with Glass Top And LED Display

The glass-top Magnetic Stirrer comes with tempered glass top with smart and user-friendly touch keys. The tempered glass working plate is waterproof, strong acid/alkali resistant and very easy to clean. The model comes with electromagnetic drive mechanism which eliminates concerns of mechanical wear, noise and the risk of demagnetization compared to the permanent magnets used in the traditional design. The wear free design also provides extended lifetime for the equipment.

Availability:

Typical Applications:

● Widely used in medical, biological engineering, chemistry, bio-pharmaceuticals, food and other research fields. It is a necessary instrument for stirring and mixing various reagents, solutions and chemical substances in biological laboratory.

Features:

● Pioneering and patented design of electromagnetism-driven mechanism.

● No concern about the mechanical wear and noise of the motor as the traditional design.

● No risk of demagnetization of the permanent magnet as the traditional design.

● Wear-free running provides longer life time.

● Tempered glass working plate is waterproof; strong acid and alkali resistant and very easy to clean.

● Touch key is more smart and user-friendly.

● Max stirring quantity (H2O) is 5000mL

● Wide speed range from 50 to 1500rpm

● LED display offers easy reading of the speed and time.

● Automatic reverse rotation every 30 seconds allows excellent mixing performance.


5 Inch Magnetic Stirrer with Glass Top And LED Display,Mini Magnetic Stirrer,Magnetic Stirrer,cheap magnetic stirrer



Model

MI0102011

Set-up plate dimensions

5 Inch

Set-up plate material

Tempered glass

Stirring Mechanism

Electromagnetic drive

Max. stirring quantity [H₂O]

5000mL (3000mL at 1500rpm)

Speed range

50-1500

Speed display

LED

Time display

LED

Time range

0-99H99Min

Permissible ambient temperature [°C]

5 - 40 °C

Permissible relative humidity

80%

Protection class
according to DIN EN 60529

IP65

Voltage [VAC]

100-240

Frequency [Hz]

50/60

Power [W]

25

Dimensions

172x247x30mm

Weight [kg]

1.627
