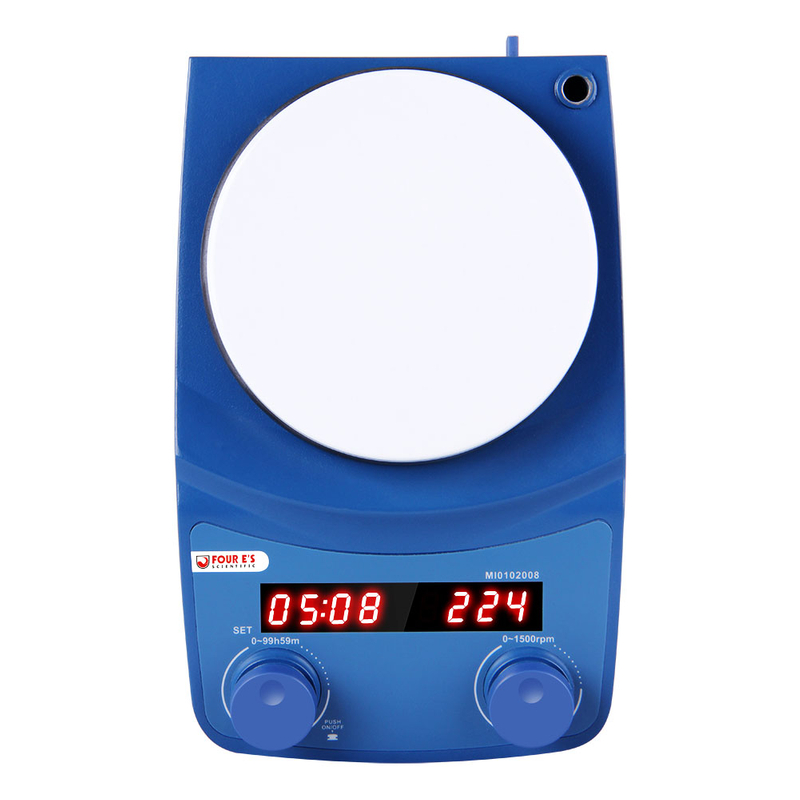

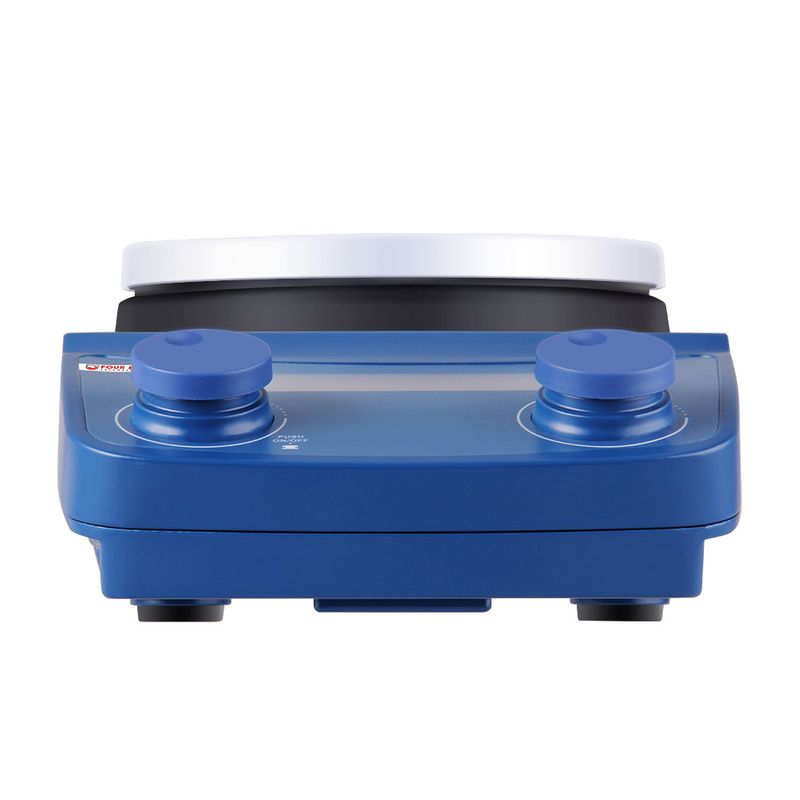

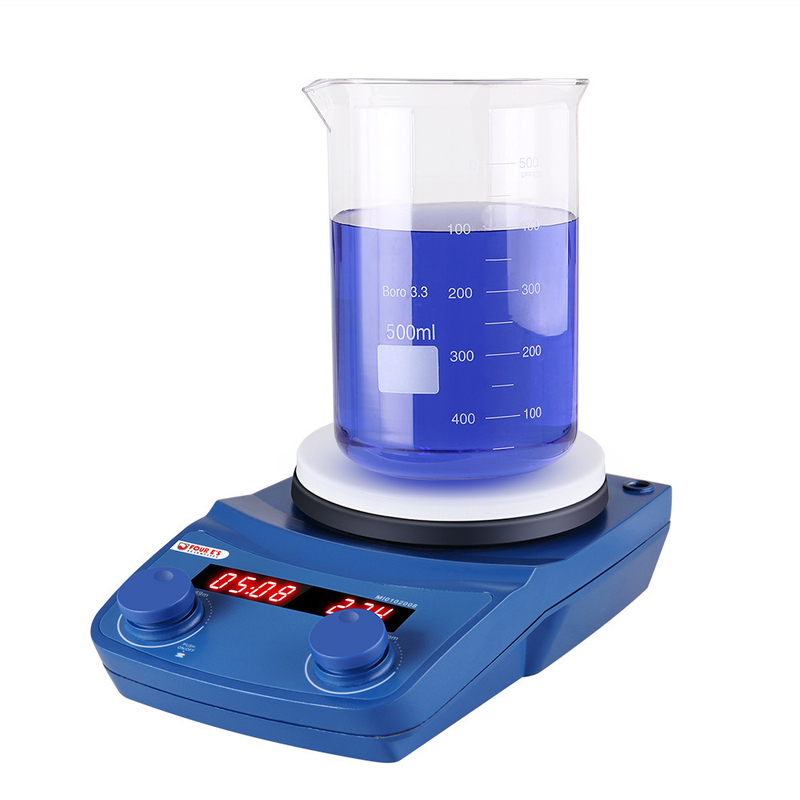

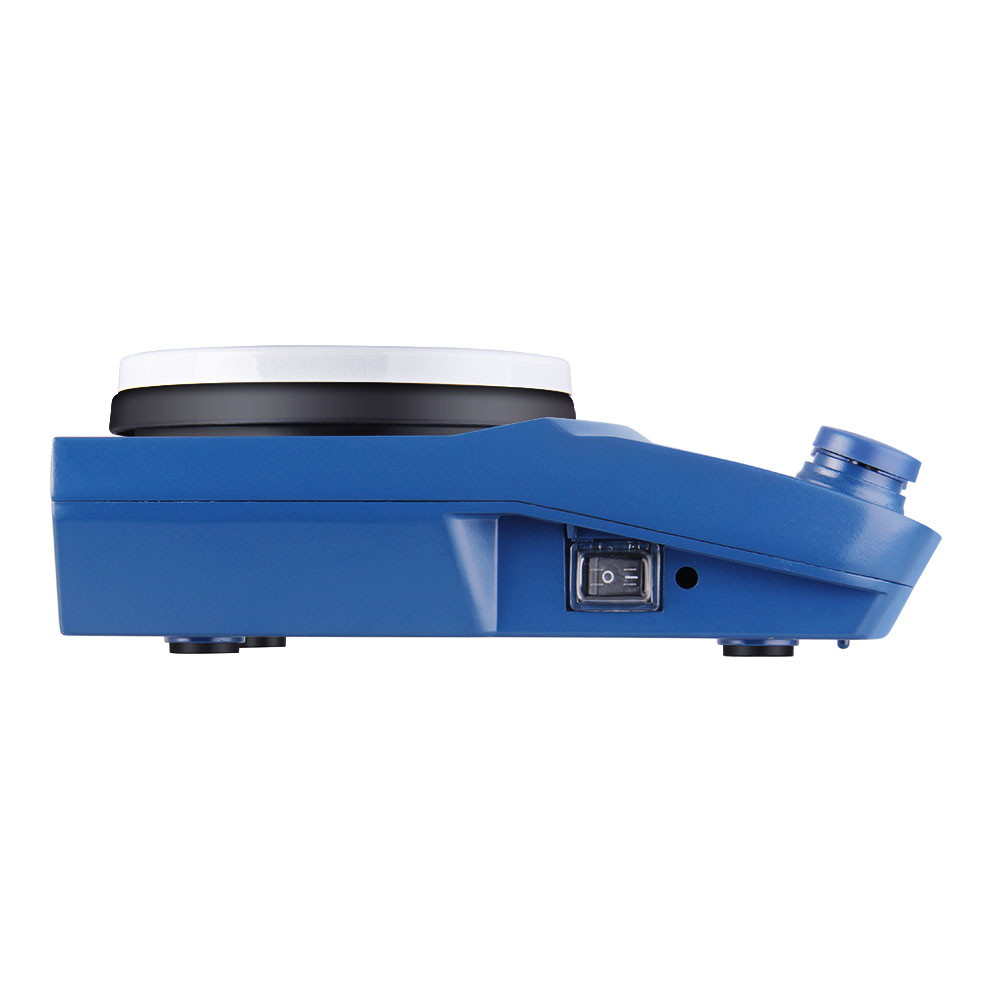

5 Inch LED Digital Magnetic Stirrer

Stainless Steel with ceramic coated working plate is chemical-resistant and scratch-resistant
3D digital wheel adjustment of speed and temperature
Digital process timer allows for unsupervised operation and can be set from 1min to 99h59min
Brushless DC motor is maintenance-free and explosion-proof

Availability:
5 Inch LED Digital Magnetic Stirrer
5 Inch LED Digital Magnetic Stirrer
5 Inch LED Digital Magnetic Stirrer
5 Inch LED Digital Magnetic Stirrer
5 Inch LED Digital Magnetic Stirrer
5 Inch LED Digital Magnetic Stirrer

Features:

● Speed range is 50-1500rpm

● LED digital display for easy setting and reading


5 Inch LED Digital Magnetic Stirrer with Ceramic Coated Plate,5 Inch LED Digital Magnetic Stirrer,LED Digital Magnetic Stirrer manufacturer


Model

MI0102008

Stirring positions

1

Set-up plate dimensions [mm]

Ø 135

Set-up plate material

Stainless Steel with ceramic coated

Motor type

Brushless DC motor

Max. stirring quantity [H₂O, L]

20

Max. stirring bar [ L x Φ , mm]

55*10

Motor rating input [W]

30

Motor rating output [W]

20

Speed range [rpm]

50-1500

Speed display

LED

Time display

LED

Time range

1min - 99h59min

Permissible ambient temperature [°C]

5-40

Permissible relative humidity

80%

Protection class according to
DIN EN 60529

IP 42

Voltage [VAC]

200-240/100-120

Frequency [Hz]

50/60

Power [W]

40

Dimensions [W x D x H, mm]

250 x 148 x 85

Weight [kg]

1.7
