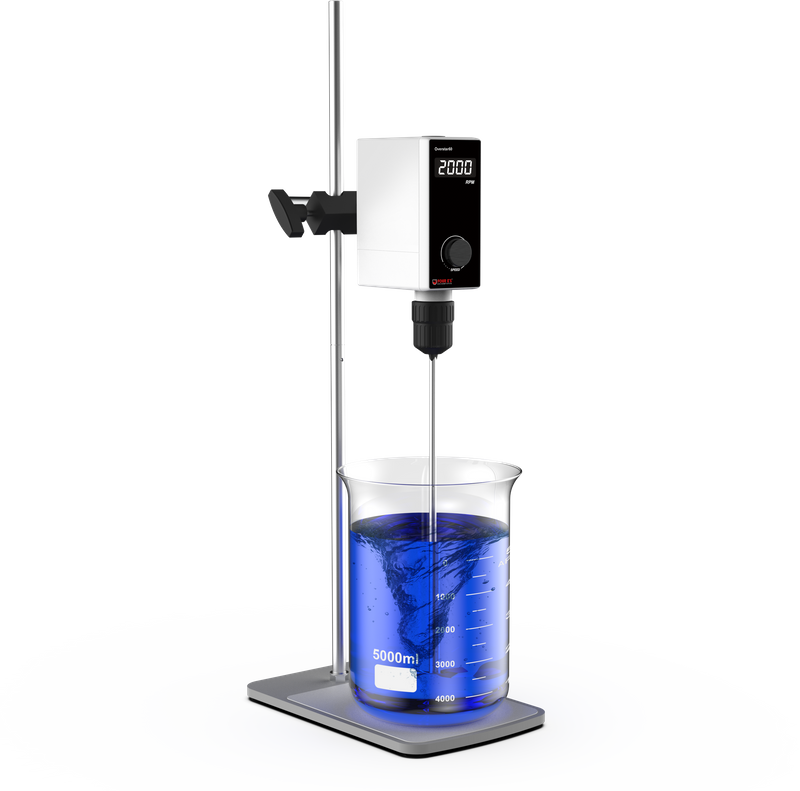

50L LED Digital Overhead Stirrer

Compact, Lightweight and Sleek design
Overload protection system if the torque exceeds the stirrer ratings
Safety circuits: Circuit auto cut-off feature for additional protection
Maintenance-free Brushless DC motor
The through-shaft housing design allows for easy impeller height adjustments and thereby less downtime in between sample changes
Availability:
50L LED Digital Overhead Stirrer
50L LED Digital Overhead Stirrer
50L LED Digital Overhead Stirrer
50L LED Digital Overhead Stirrer
50L LED Digital Overhead Stirrer
50L LED Digital Overhead Stirrer

Features:

● Compact, Lightweight and Sleek design

● Speed Range: 50rpm~2000rpm

● Provides constant speed even with changes in viscosities of the sample

● Wide LED display for precise speed adjustment and monitoring

● LED display shows actual and set speeds alternately

● Overload protection system if the torque exceeds the stirrer ratings

● Safety circuits: Circuit auto cut-off feature for additional protection

● Maintenance-free Brushless DC motor

● The through-shaft housing design allows for easy impeller height adjustments and thereby  less downtime in between sample changesad Stirrer,Digital Overhead Stirrer manufacturer


Model

OHS-60D

Max. torque [N·cm]

60

Speed range [rpm]

50-2000
Speed increment [rpm]Stepless, 10rpm
Speed accuracy±1%

Viscosity max. [mPas]

50,000 (2000 rpm)

100,000 (1000 rpm)

Chuck Diameter Range [mm]

0.5-10 mm

Max. stirring quantity (H20)[L]

50 L

Voltage [V]

100-240

Frequency [Hz]

50/60
Max. output power [W]160

Speed display

LED

Overload protection

YES

Motor protection

YES

Over temperature protectionYES

Dimensions (D×W×H)[mm]

(without extension arm)

71×174×240

Weight [kg] (with extension arm and clamping chunck)

2.8kg

Protection class according to DIN EN60529

IP42

Permissible ambient temperature [°C]

5-40℃

Permissible relative humidity [%]

80%
