What Is a CO2 Incubator?

Introduction

CO2 incubators play a crucial role in creating stable conditions ideal for cell culture development. By precisely regulating temperature, humidity, and carbon dioxide (CO2) levels, these incubators provide the ideal conditions for sensitive biological samples to thrive—especially mammalian cells used in medical, pharmaceutical, and biotechnology research.

Whether you're working in a cell biology lab, running a pharmaceutical test, or conducting stem cell research, a reliable CO2 incubator is critical to ensure the consistency and accuracy of your results.

What Is a CO2 Incubator?

A CO2 incubator is a specialized laboratory device that creates an ideal environment for cell growth by regulating:

• Temperature (typically 37°C for mammalian cells).

• CO2 level (about 5%) to keep the pH stable.

• Humidity (around 95%) to prevent evaporation.

The CO2 levels inside the chamber are typically monitored using either thermal conductivity (TC) or infrared (IR) sensors. IR sensors, commonly used in modern incubators, provide greater long-term accuracy and stability.

How Does a CO2 Incubator Work?

A CO2 incubator maintains a controlled atmosphere through several key mechanisms:

Temperature Control

• Maintains a stable temperature using built-in heating elements and monitoring sensors.

• Some models feature water or air jackets that help maintain steady heat dispersion.

CO2 Regulation

• Either thermal conductivity or infrared sensors are employed to measure CO2 levels.

• The system injects CO2 as needed to maintain the desired concentration.

Humidity Management

• A water reservoir or steam generator maintains high humidity.

• Prevents cell culture media from drying out.

Sterility & Contamination Prevention

• Microbial contamination is minimized through the use of HEPA filters and copper-lined interiors.

• Automatic sterilization cycles, such as hot air or UV sterilization, maintain a clean environment.

Applications of CO2 Incubators

CO2 incubators are indispensable tools in many clinical and life science applications. Common applications include:

• Cell and tissue culture: Culturing mammalian cells to support scientific research or therapeutic purposes.

• IVF labs: Facilitating embryo growth in ideal physiological environments.

• Cancer research: Growing tumor cells for purposes such as drug testing and genetic research.

• Stem cell research: Maintaining undifferentiated stem cells or guiding differentiation.

• Pharmaceutical development: Supporting the testing and production of biologics and vaccines.

These incubators are also widely used in microbiology, virology, and regenerative medicine labs.

How to Choose the Right CO2 Incubator?

When selecting a CO2 incubator for your lab, consider the following factors:

1. Capacity and footprint: Choose a size that matches your lab space and workload.

2. Sensor type: IR sensors offer higher accuracy and stability over TC sensors.

3. Contamination control: Seek out features such as UV sterilization, HEPA filtration, and antimicrobial interior surfaces.

4. Temperature and CO2 recovery time: A faster recovery ensures minimal disturbance to cultures after the door is opened.

5. Humidity control: Adequate moisture retention prevents medium evaporation.

6. User interface and alarms: A digital display with real-time monitoring, data logging, and alarm systems enhances usability and safety.

7. Energy efficiency: Lower operational costs over time with eco-friendly designs.

The Four E's Scientific CO2 Incubator meets these criteria with advanced IR sensors, auto-sterilization, and a user-friendly interface.

Why Choose Four E's Scientific CO2 Incubator?

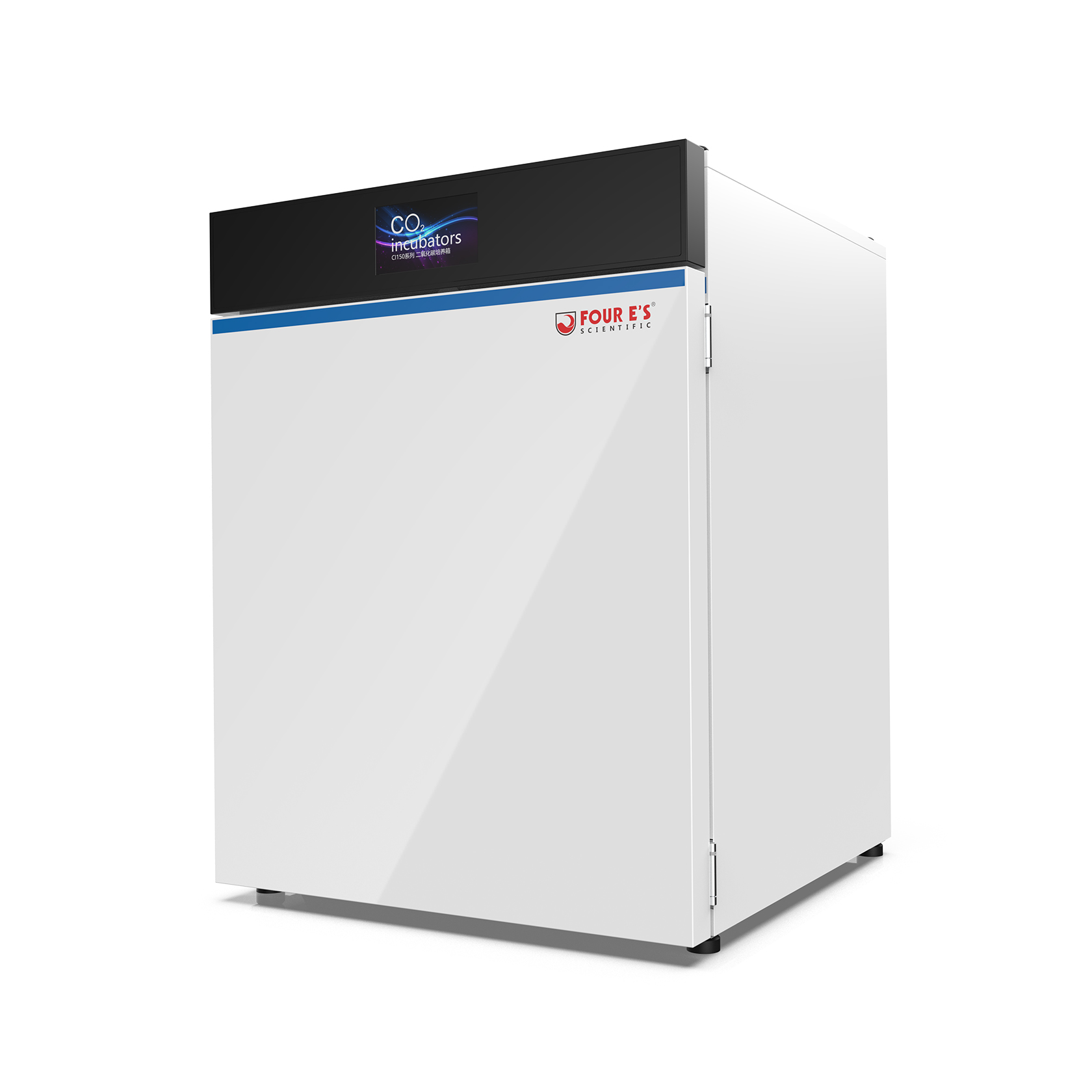

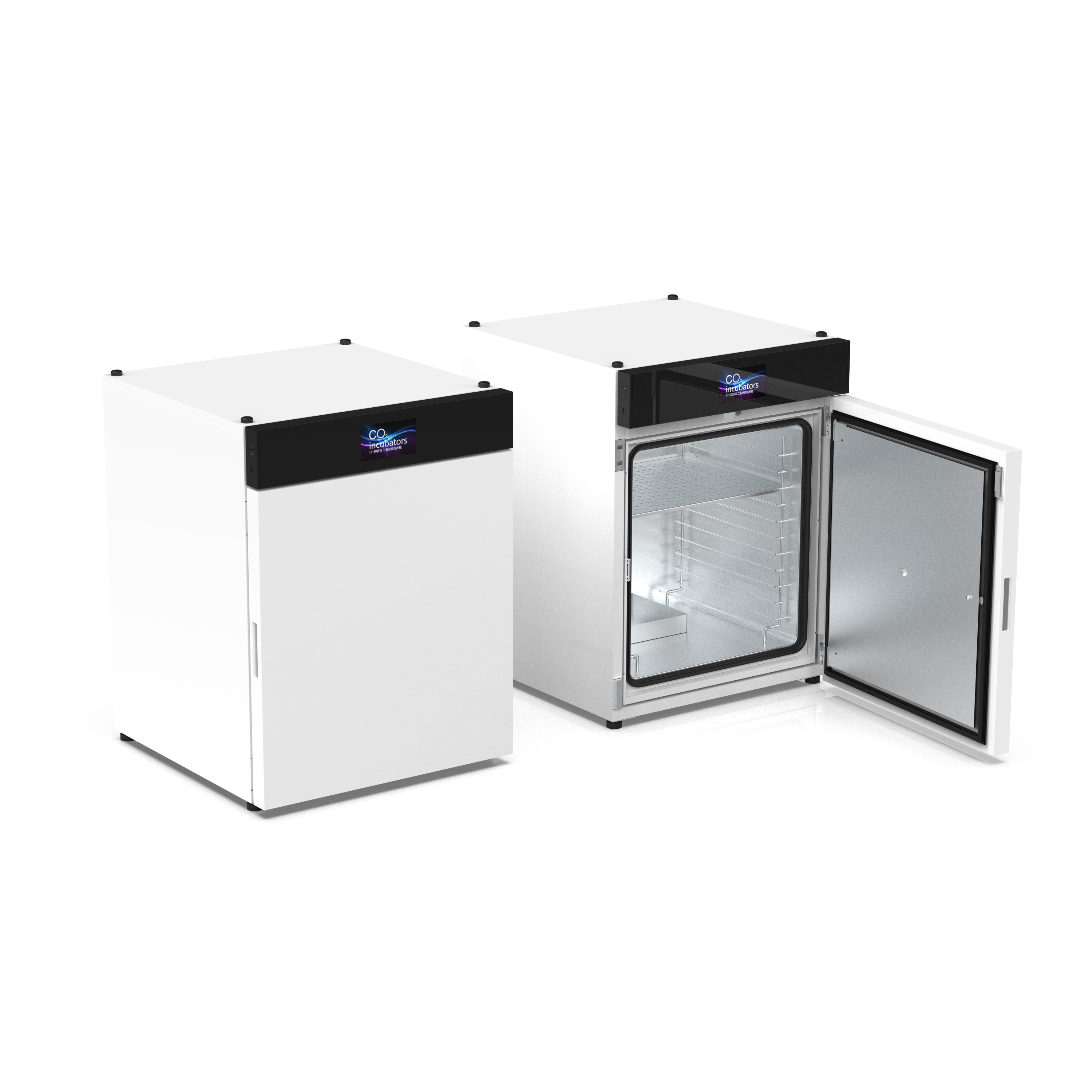

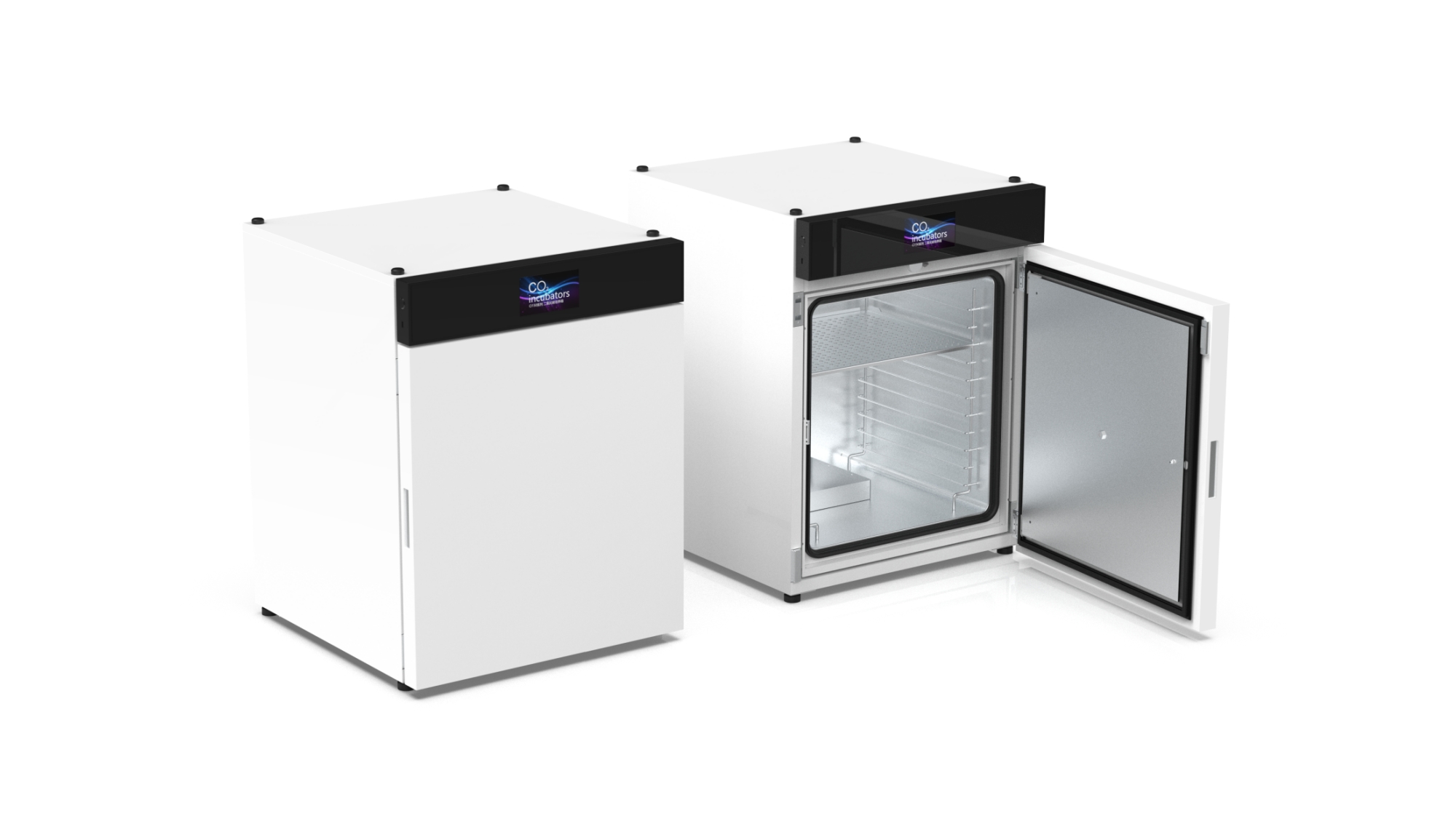

CO2 Incubator ICO170 from Four E's Scientific is ideal for laboratories looking to balance performance, hygiene, and ease of use without overspending. Backed by Four E’s Scientific’s commitment to innovation and customer service, it’s a tool designed for modern scientific needs.

• Advanced IR CO2 Sensor: Ensures stable and precise control of CO2 levels, critical for sensitive cell lines.

• Dual Layer Door Design: Prevents temperature drops when opening the outer door and provides excellent insulation.

• High-Temperature Sterilization: Equipped with a 140°C dry heat sterilization cycle to eliminate bacterial contamination effectively.

• Humidity Water Pan: Offers 95%±5% humidity, reducing media evaporation and supporting cell health.

• Polished Stainless-Steel Interior: Corrosion-resistant and easy to clean, with rounded corners to prevent contamination buildup.

• Large Viewing Window & LED Display: Allows easy observation without opening the chamber, reducing disruptions.

• Compact Yet Spacious: Designed to maximize internal volume while maintaining a small footprint, ideal for space-limited labs.

Final Thoughts

A CO2 incubator is more than just a heated box—it’s the heartbeat of any serious biological lab. Choosing the right one can dramatically improve the consistency and success of your cell culture experiments.

Whether you're just starting a cell biology project or scaling up production in a pharma setting, investing in a reliable, well-designed CO2 incubator is crucial.
