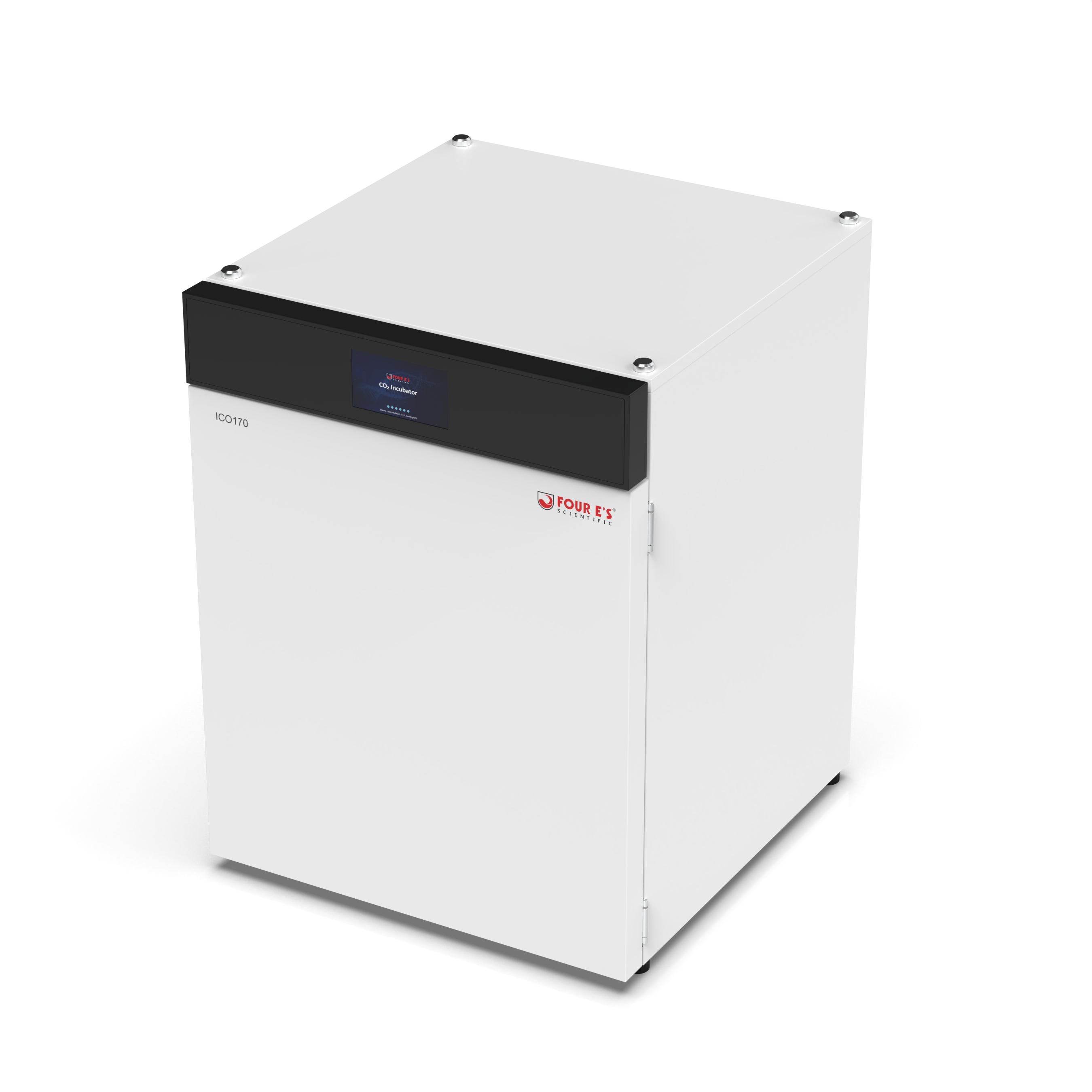

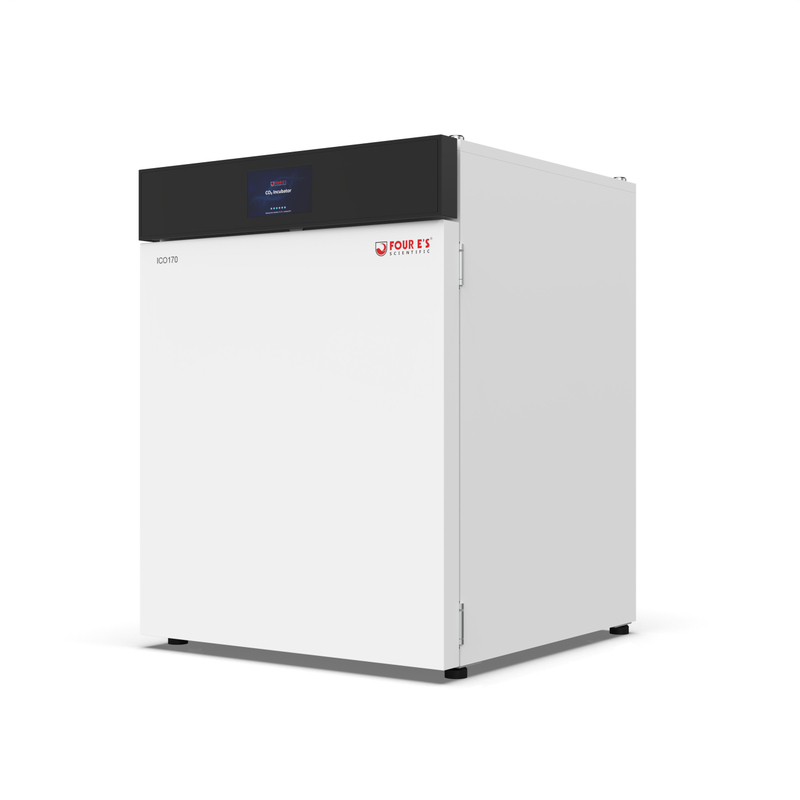

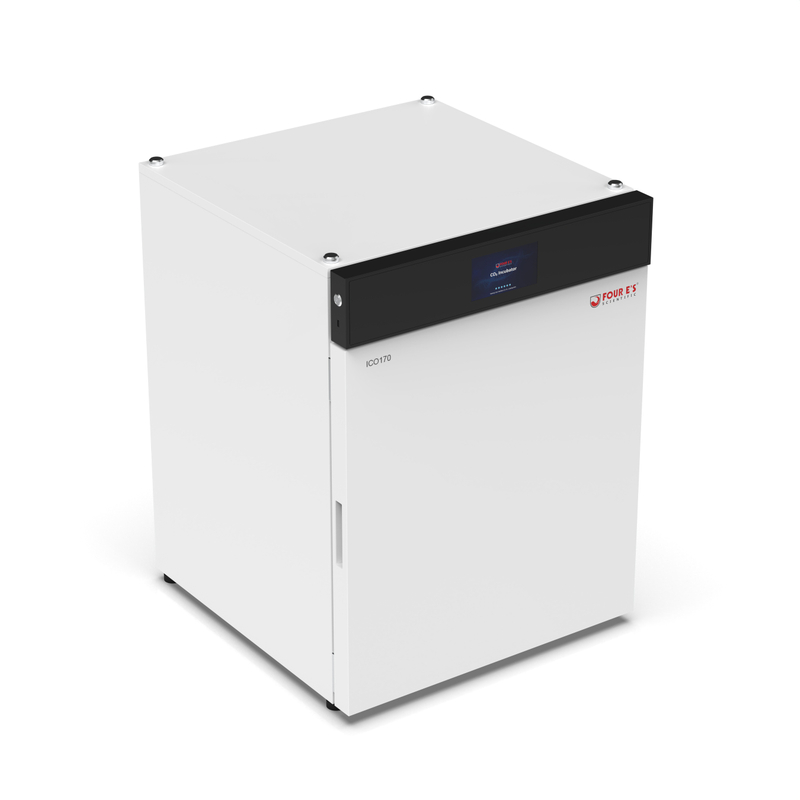

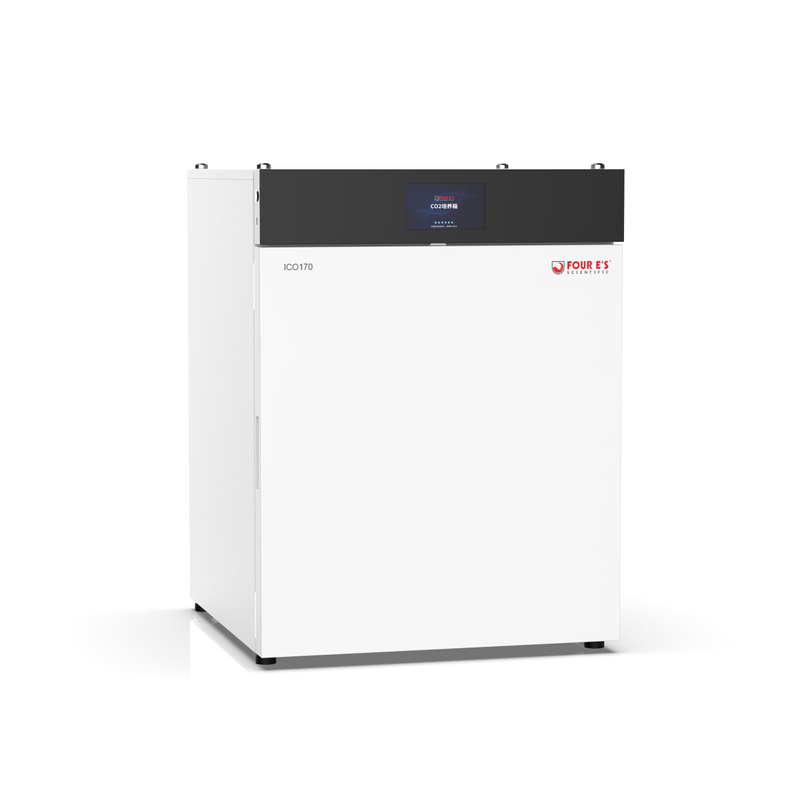

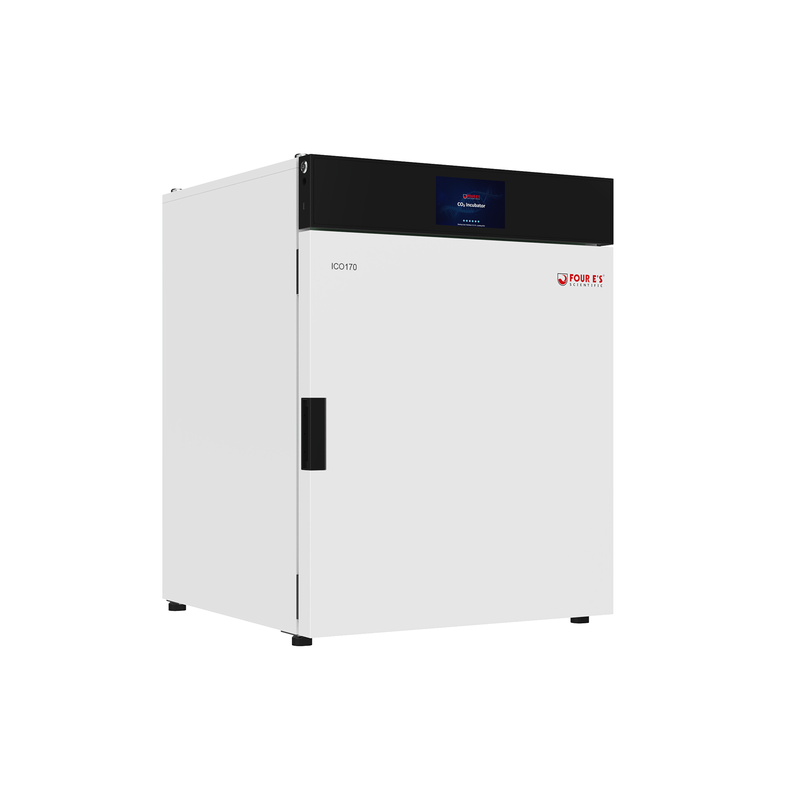

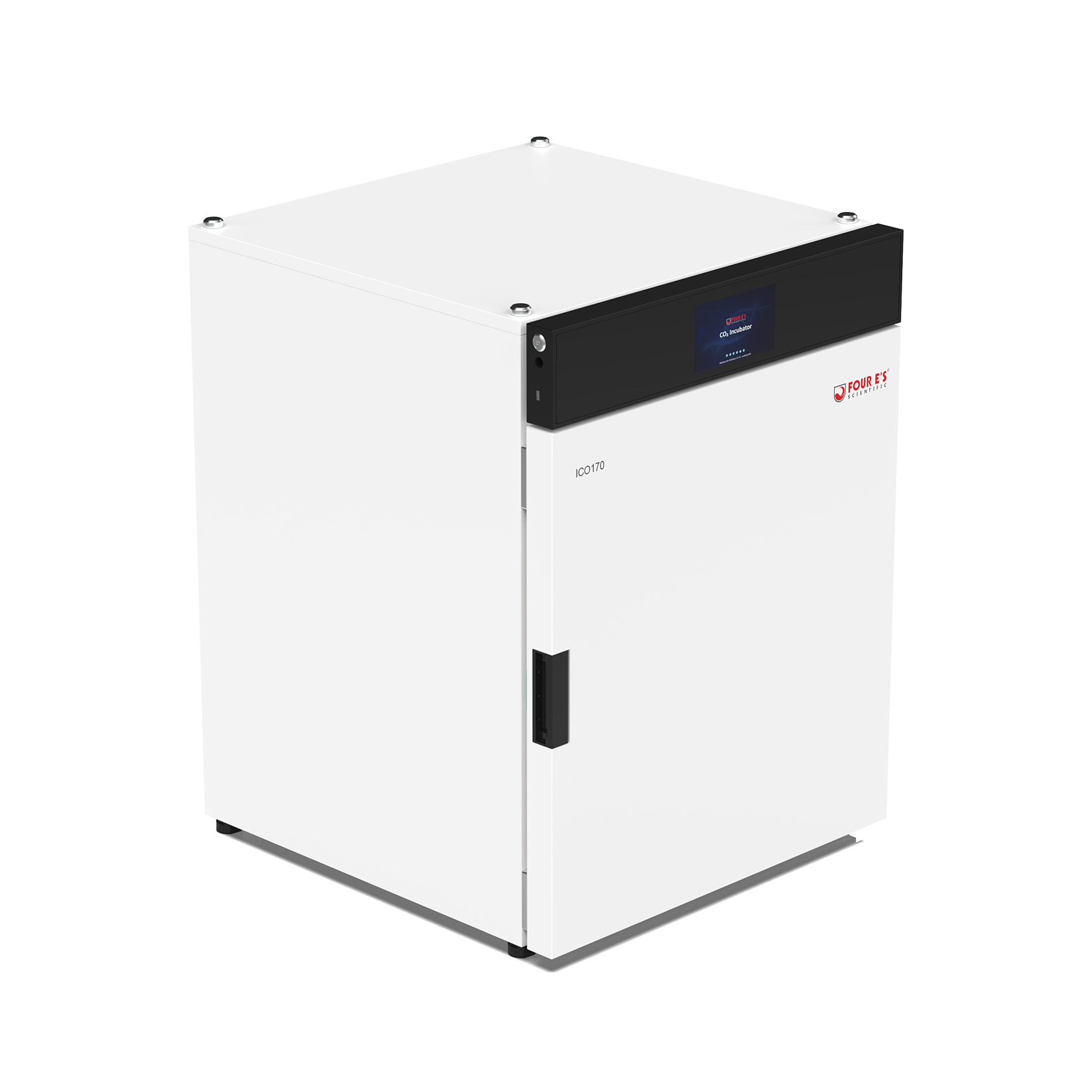

CO₂ Incubator

A CO2 incubator is designed to create and maintain optimal conditions for cell and tissue culture. It plays a crucial role in maintaining a cell culture's sterility, temperature, humidity, and carbon dioxide levels, mimicking the physiological environment necessary for the growth and proliferation of cells.

The CO2 incubator is widely used in scientific research to grow and maintain cell cultures. Typical fields of application include tissue engineering, in vitro fertilization, neuroscience, cancer research, cell biology, microbiology and drug development.

Four E's Scientific CO2 incubator combine high capacity, PID temperature control and fast temperature and CO2 recovery (less than 5 min), providing optimal atmospheric conditions to maintain the culture's viability.
Availability:

Features:

  • Six-sided heating to ensure uniform temperature and fast heating

  • Infrared CO2 sensor is high temperature-resistant and esnures accuracy

  • Heated door prevents condensation water

  • 180°C high temperature dry heat sterilization

  • 7-inch large touchscreen, real-time display of temperature, humidity (optional), CO2 concentration, O2 concentration (optional), operation status bar, alarm, etc.

  • Parameter can be viewed as charts

  • The circulation fan accelerates the air circulation in the chamber so that the temperature and CO2 concentration can quickly recover to the previous level after door opening

  • Simple structure, compact, easy and quick disassembly and installation of components like shelves in the chamber

  • Equipped with HEPA filtration, highly effective filtration of microorganisms

  • Standard package is equipped with an inner door of a whole glass design and 3 shelves (Optional inner door with 3 segments and other inner door with 6 segments)

  • Stainless steel mirror inner chamber with rounded angle design makes it easy to clean

  • Comes with a water tray that is convenient to remove

  • Multiple alarms for safe operation: CO2 concentration alarm, high & low temperature alarm, door-open alarm, O2 concentration alarm (optional), humidity alarm, low water level alarm (optional)

  • The gas inlet outside the chamber has an easy-to-replace filter to filter the gas before entering the chamber

  • The temperature is PID-controlled

Model

ICO170 (Standard)

Heating Method

Direct heat + Air jacket

Capacity

170L

Input Voltage

110V/220V 50/60HZ

Power

<60W/H (37℃)

Power (high temperature sterilization)

<1500W/H (180℃)

Convection

Fan

Heat Insulation

Foam

Display

7-inch touchscreen

Disinfect

180°C high temperature disinfection (HTD)

Chamber Humidity

95±5% R.H. (Relative Humidity)

Inner door material

Tempered glass

Access port (for cables etc.)

Inner diameter 30mm

Noise

< 50dB

Alarm

CO2 concentration alarm, high & low temperature alarm, door-opening  alarm, humidity alarm, low water level alarm (optional), O2 concentration alarm (optional)

Data transfer

USB, Ethernet port

Upgrade method

Wireless or Cable

Inner dimensions

557x518x597mm

Outer dimensions

718x744x956mm

Weight (accessories excluded)

≤80KG

Temperature Control

Temperature range

Ambient+3°C~55°C (ambient: 5℃~35℃)

Temperature controller

PID

Temperature uniformity at 37°C

±0.3°C

Temperature stability at 37°C

±0.1°C

Temperature Recovery Time

(recover to 37°C after 30s door-opening)

< 5 minutes

CO2 Control

CO2 sensor

Dual IR sensor

CO2 concentration range

0.1-20%

CO2 accuracy

±0.1 %

CO2 concentration recovery time

(recover to 5% after 30s door-opening)

< 4 minutes

HEPA filter

Filter 99.97% of 0.22μm foreign particles

CO₂ connector

8mm tube (inner diameter)

CO₂ pressure

0.1MPa

Configurable Features

Door handle location

Left / Right

Wheel type

Optional Caster (size: 40mm)

Chamber Material

Standard: 304 Stainless Steel

Optional: Copper

Number of shelves

Standard:3

Optional: 6 or 10

Number of inner doors

Standard: Unsegmented inner door

Optional: 3 or 6-segmented inner doors

Humidification

Standard: Passive humidification water tray

Optional: Active humidification external humidity reservoir

Water level monitor in the water tray

Optional

Tri-Gas (hypoxic culturing)

Optional

O2 Control (optional)

O₂ sensor

Zirconia

O₂ concentration range

1~20%

O₂ accuracy

0.10%

O₂ connector

8mm tube (inner diameter)

O₂ pressure

0.1MPa
