Bead Mill Homogenizer: The Complete Guide to Efficient Sample Preparation

Every successful molecular biology, microbiology, or proteomics workflow begins with one critical step: sample preparation. Regardless of how advanced downstream techniques such as PCR, next-generation sequencing (NGS), ELISA, or mass spectrometry have become, inconsistent sample homogenization can compromise the quality of extracted DNA, RNA, proteins, or metabolites.

Researchers frequently encounter common challenges during sample disruption:

• Incomplete tissue lysis leading to poor nucleic acid yields

• Variable results between samples caused by inconsistent manual grinding

• Cross-contamination risks when processing multiple samples

• Time-consuming preparation for high-throughput studies

• Heat generation that may degrade sensitive biomolecules

As laboratories continue to process larger numbers of samples while demanding greater reproducibility, bead mill homogenizers have become an essential solution for rapid, standardized sample preparation.

What Is a Bead Mill Homogenizer?

A bead mill homogenizer is a laboratory device that uses grinding beads within sealed sample tubes to rapidly break down, disrupt, and homogenize biological materials for downstream analysis. Rather than relying on manual grinding with a mortar and pestle, the instrument rapidly agitates the tubes in multiple directions, causing the beads to collide with the sample and efficiently break apart cells and tissues.

Since samples remain enclosed in individual tubes throughout the homogenization process, the risk of cross-contamination is reduced while multiple samples can be processed at the same time. This approach is particularly valuable for laboratories requiring reproducible sample preparation across large experimental batches.

How Does a Bead Mill Homogenizer Work?

The bead mill homogenization process typically involves the following steps:

1. Prepare the sample: Place the biological sample into a suitable homogenization tube.

2. Add lysis buffer (if required): Introduce an appropriate buffer based on the sample type and intended downstream application.

3. Select the grinding beads: Choose suitable bead materials and sizes according to the characteristics of the sample.

4. Load the homogenizer: Securely position the tubes in the instrument's tube holder and set the desired homogenization parameters.

5. Run the homogenization cycle: Start the programmed cycle to mechanically disrupt the sample and achieve the desired level of homogenization.

6. Remove the grinding beads: After homogenization, carefully remove the beads from the sample, if required by the downstream protocol.

7. Separate the homogenate: Centrifuge the processed sample when appropriate, then collect the supernatant for subsequent analysis or processing.

During operation, high-speed three-dimensional movement accelerates the beads within each tube. The repeated impacts and friction efficiently disrupt tissue structure, rupture cell membranes, and release intracellular components.

Unlike manual methods, this automated process produces highly consistent homogenization across every sample.

Common Applications of Bead Mill Homogenizers

With the ability to efficiently process diverse biological samples, bead mill homogenizers have become an important solution for laboratories across research, diagnostics, and industrial testing fields. By efficiently disrupting a wide range of biological materials, they support consistent sample preparation for diverse research and testing workflows.

Common sample types include:

• Animal tissues (e.g., liver, muscle, brain, and tumor samples)

• Plant tissues, including leaves, seeds, and roots

• Bacteria, yeast, and fungal cells

• Insects and other small organisms

• Soil and environmental samples for microbiome studies

• Food and feed samples for quality and safety testing

After homogenization, the prepared sample can be processed further according to the target analyte and experimental objectives.

Common downstream workflows include:

• Nucleic acid analysis: DNA and RNA extraction, PCR, qPCR, and next-generation sequencing (NGS)

• Protein analysis: Protein extraction, enzyme activity assays, and Western blotting

• Metabolite analysis: Preparation of samples for metabolomics and other biochemical analyses

Research and testing applications include:

• Life science and molecular biology research

• Clinical and veterinary testing

• Pharmaceutical research and drug development

• Biotechnology and environmental studies

Choosing the Right Grinding Beads

Grinding bead selection significantly affects homogenization efficiency.

Different materials are better suited for different sample types:

The optimal bead size depends on sample hardness, desired particle size, and downstream applications. Choose bead size accordingly to improve homogenization efficiency.

Key Features to Look for in a Bead Mill Homogenizer

Not all homogenizers provide the same performance. Laboratories performing routine molecular workflows should consider several important features:

• High-throughput sample processing: Processing multiple samples simultaneously reduces preparation time while improving consistency across experiments.

• Programmable protocols: Saving frequently used methods helps standardize workflows and minimizes operator variability.

• Rapid acceleration: Fast acceleration and deceleration shorten total processing time and improve laboratory efficiency.

• Heat management: Rest intervals between grinding cycles help protect temperature-sensitive DNA, RNA, proteins, and enzymes.

• Intuitive operation: Touchscreen interfaces simplify protocol setup and reduce training requirements.

• Versatile bead compatibility: Compatibility with various bead materials allows researchers to optimize homogenization protocols for different sample types.

Supporting Efficient and Reproducible Homogenization

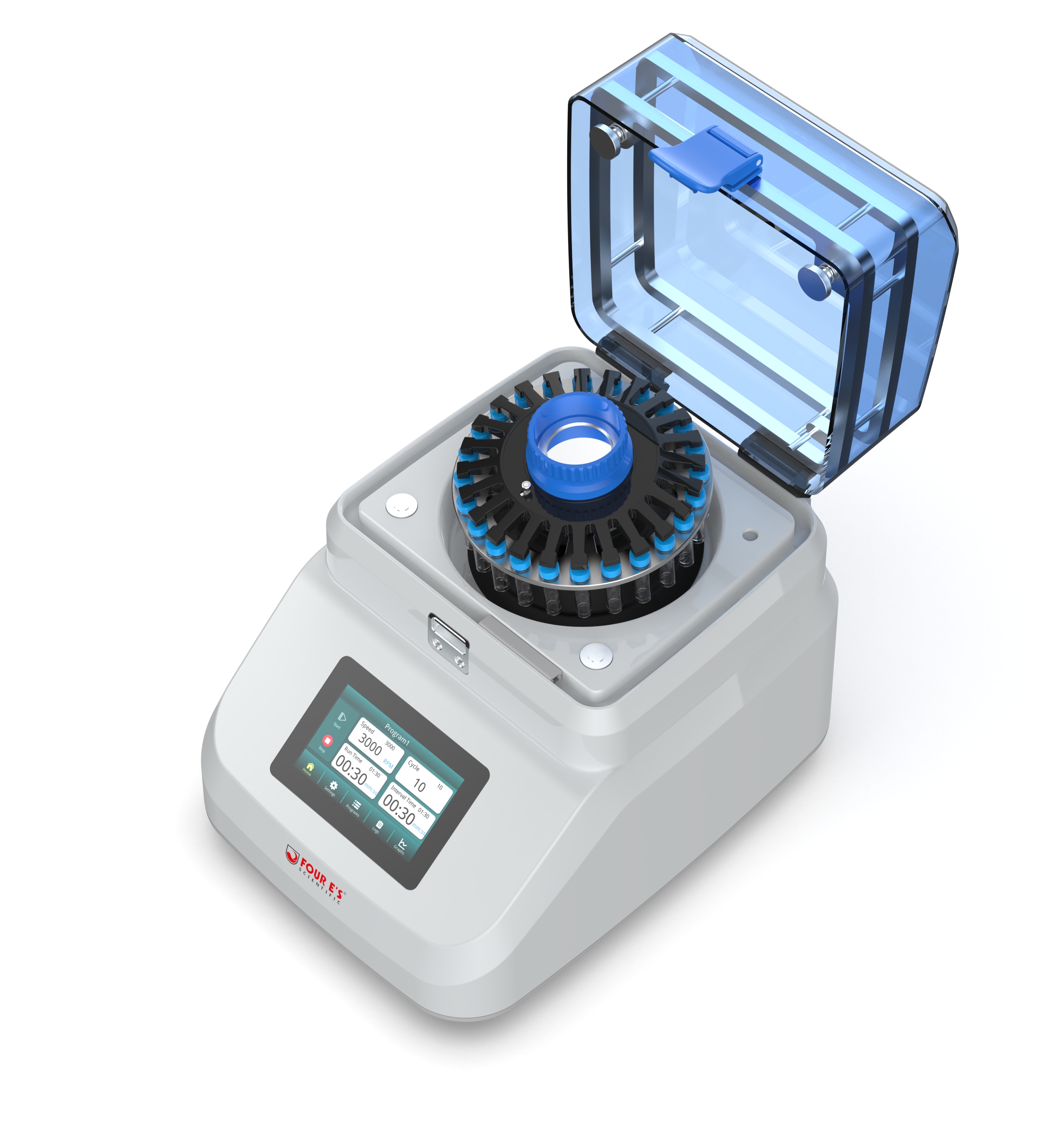

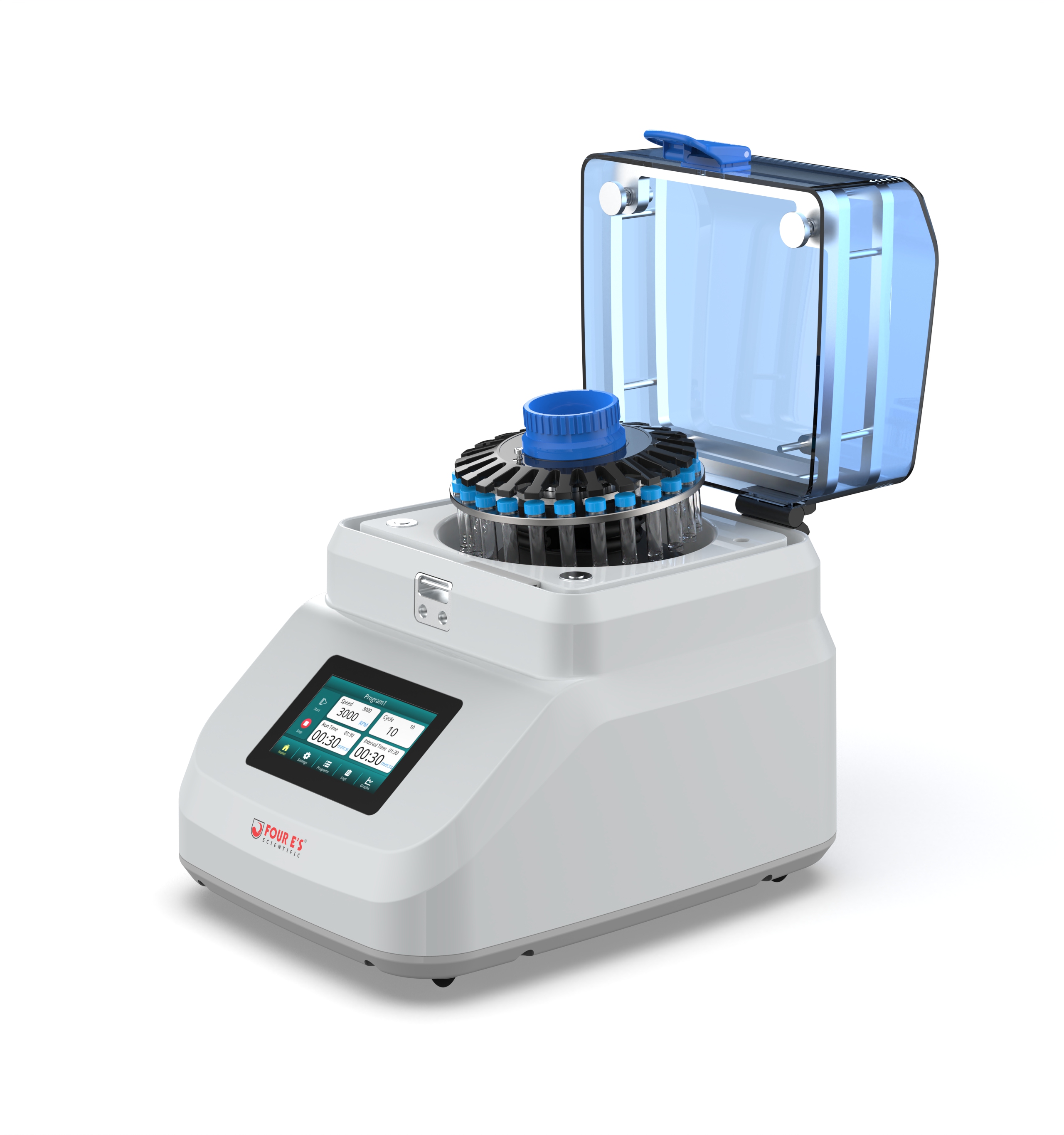

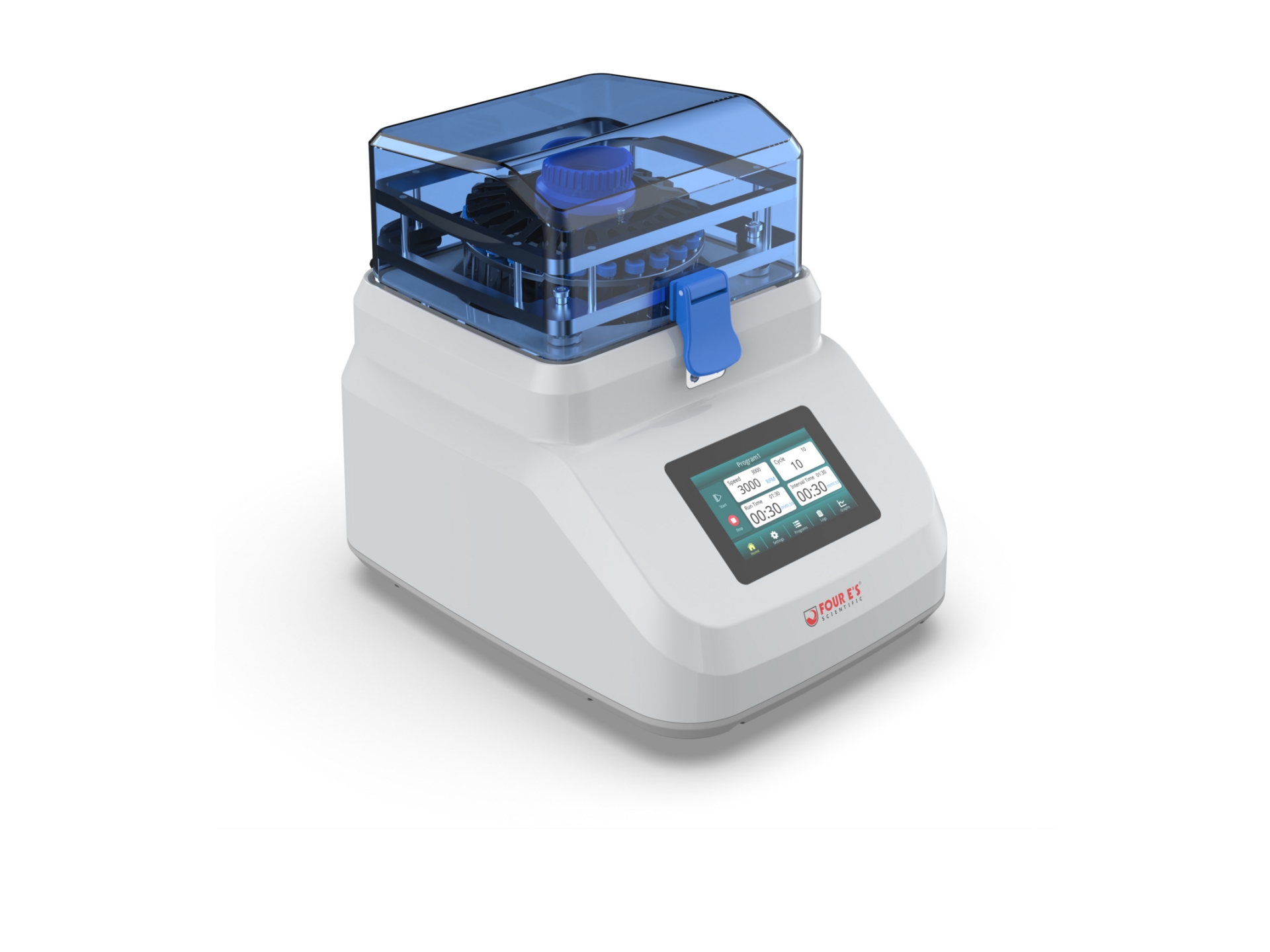

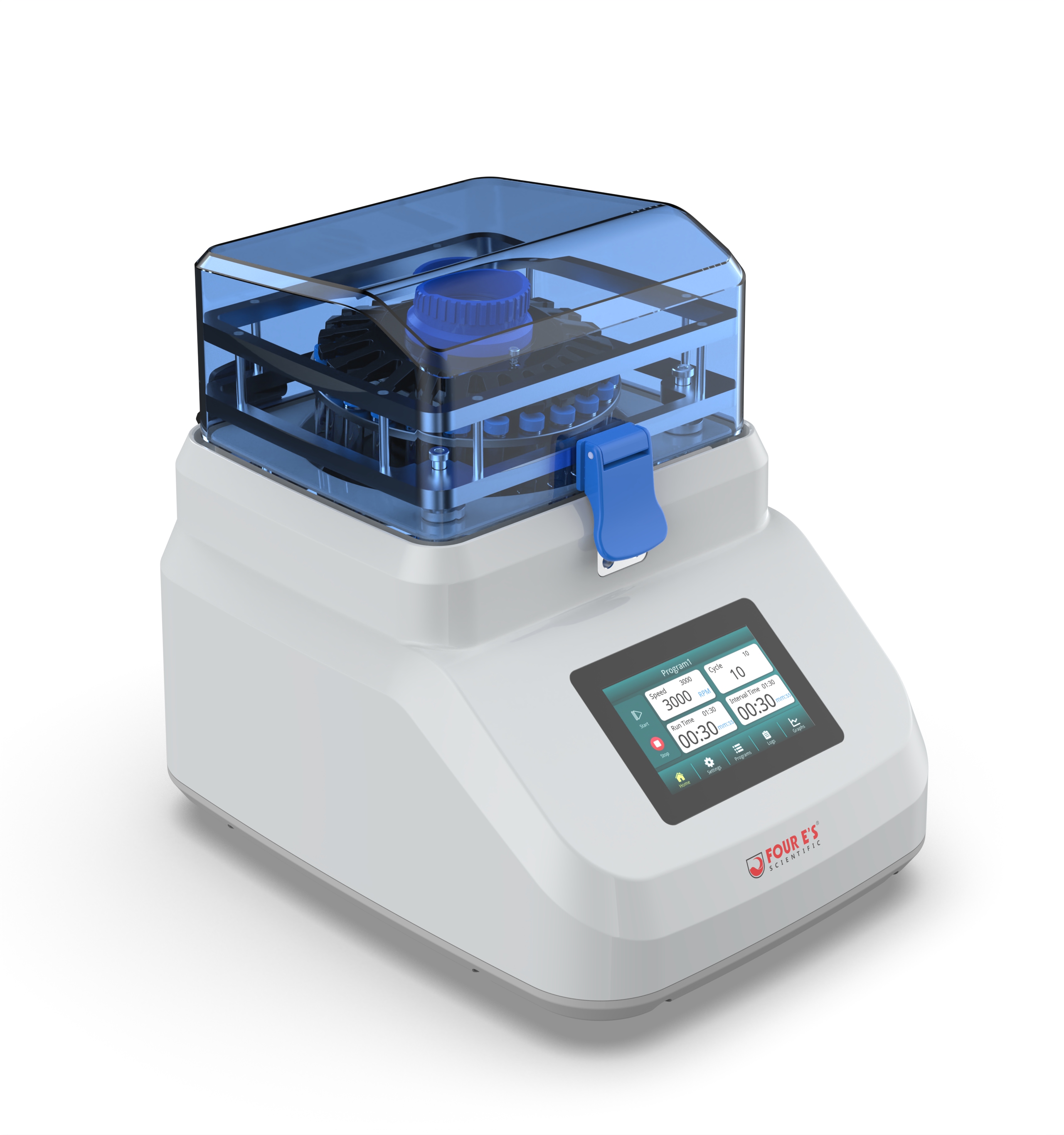

Choosing a bead mill homogenizer with the right capabilities can significantly improve workflow efficiency and result consistency. For example, the Four E's Scientific Bead Mill Homogenizer is designed for laboratories that process multiple samples while maintaining reproducibility. It can process up to 24 × 2 mL sample tubes in a single run, reducing manual intervention and increasing overall laboratory efficiency.

To preserve temperature-sensitive DNA, RNA, and proteins, the instrument offers programmable grinding cycles with rest intervals to minimize heat buildup. With flexible bead compatibility, simple touchscreen controls, and the ability to save frequently used settings, the system enables laboratories to establish efficient and reproducible sample preparation workflows.

Best Practices for Successful Homogenization

To maximize homogenization efficiency:

• Match bead type and size to the sample material.

• Avoid overfilling sample tubes.

• Use appropriate lysis buffers for downstream applications.

• Optimize speed and run time before processing valuable samples.

• Include cooling or rest cycles for heat-sensitive specimens.

• Clean accessories and inspect tubes regularly to maintain consistent performance.

• Careful protocol optimization improves extraction efficiency while reducing sample-to-sample variability.

Conclusion

As molecular biology workflows become increasingly automated and high-throughput, reliable sample homogenization has become more important than ever. A bead mill homogenizer provides fast, reproducible disruption of a broad range of biological samples while minimizing contamination and operator variability.

Whether working with animal tissues, plants, microorganisms, or environmental samples, selecting the appropriate homogenization method lays the foundation for successful downstream analysis. By providing a standardized approach to sample disruption and homogenization, solutions such as the Four E's Scientific Bead Mill Homogenizer help laboratories improve reproducibility and streamline daily workflows.

Frequently Asked Questions (FAQ)

What is a bead mill homogenizer used for?

By providing effective mechanical disruption of cells and tissues, bead mill homogenizers help researchers prepare high-quality samples for a variety of molecular biology applications, including DNA/RNA purification, PCR, qPCR, and sequencing.

What samples can be processed using a bead mill homogenizer?

Common sample types include animal tissues, plant tissues, bacteria, yeast, fungi, insects, soil, food samples, and environmental specimens.

Which grinding beads should I choose?

The ideal bead depends on your sample. Choose zirconia beads for hard tissues and microorganisms, glass beads for yeast and bacteria, ceramic beads for general laboratory applications, and stainless steel beads for tougher fibrous materials.
