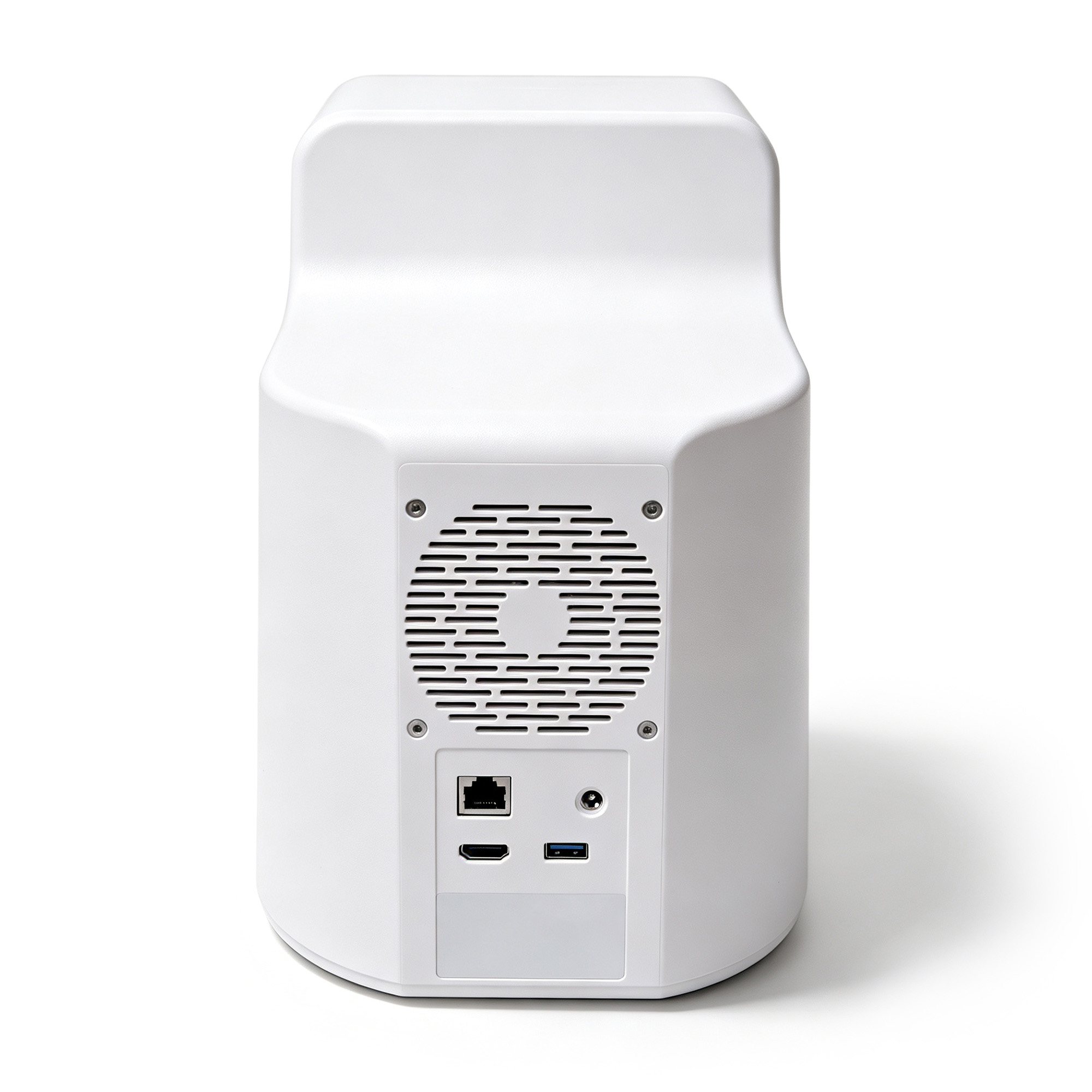

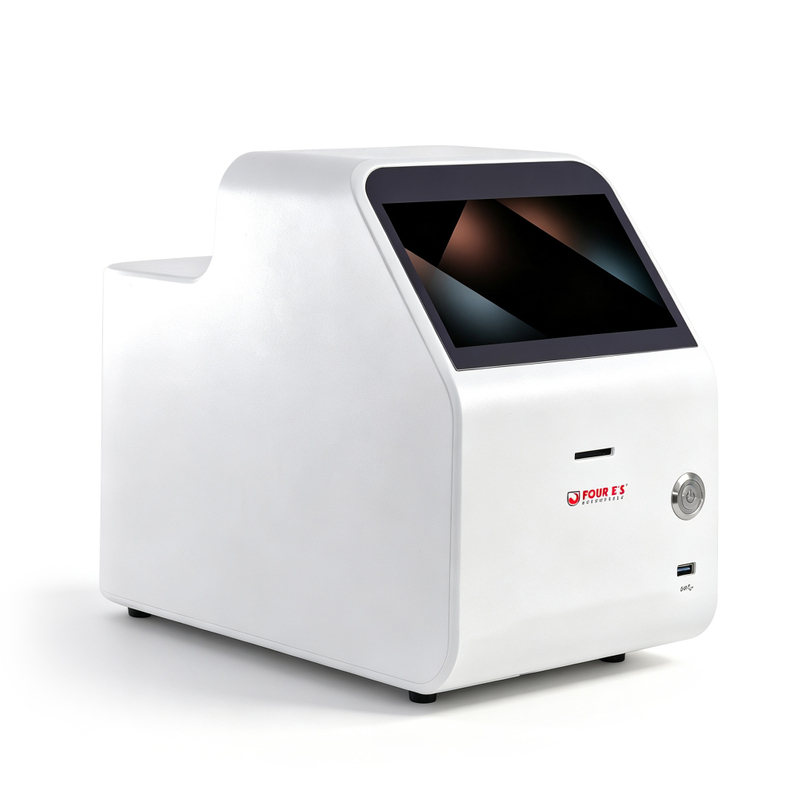

Fully Automatic High-throughput Cell Counter

Features

• From sample to results in three simple steps: Load, Insert, Count.

• Analyze up to 6 samples simultaneously.

• Rapid cell counting in as little as 1 second per sample.

• Captures five fields of view per sample, combining brightfield imaging with two fluorescence channels (Ex: 475 nm / 545 nm; Em: 530 nm / 605 nm) for improved accuracy and reproducibility.

• Supports a wide range of cell types with diameters ranging from 2 to 400 μm.

• Enables both brightfield cell counting and trypan blue viability analysis.

• Integrated 7-inch touchscreen for standalone operation without an external computer.

• Generates tables and growth curves for easy data analysis.

• Auto-focus functionality ensures sharp images and consistent results across all samples.

• Advanced analysis tools include cell proliferation curves, organoid analysis, dilution and passaging calculators, and flow cytometry-compatible data output.

• Features user access control, role-based permissions, encrypted data export, and audit trail functionality to support compliance with GMP/cGMP and 21 CFR Part 11 requirements.

Fully Automatic High-throughput Cell Counter (with Fluorescence function)

• Fluorescence analysis of up to 6 samples in just 2 minutes.

• Perform fluorescence-based cell counting using AO/PI fluorescent dyes for accurate cell concentration and viability measurements.

• Quantify GFP transfection efficiency quickly and reliably using integrated fluorescence imaging.

Application

The device is suitable for cultured cells and primary cells isolated from tissues, bone marrow, peripheral blood, bronchoalveolar lavage (BAL) fluid, and liver samples. Dual-fluorescence detection enables rapid and reliable cell counting, viability assessment, and sample analysis. It provides a comprehensive range of cell analysis parameters, including:

• Cell Concentration (cells/mL)

• Live Cell Concentration (cells/mL)

• Dead Cell Concentration (cells/mL)

• Live Cell Percentage (%)

• Dead Cell Percentage (%)

• Total Cell Count

• Cell Proliferation Curve

• Average Cell Diameter (μm)

• Comprehensive Results Analysis Charts

• Transfection Efficiency
