Availability: | |
---|---|
Features

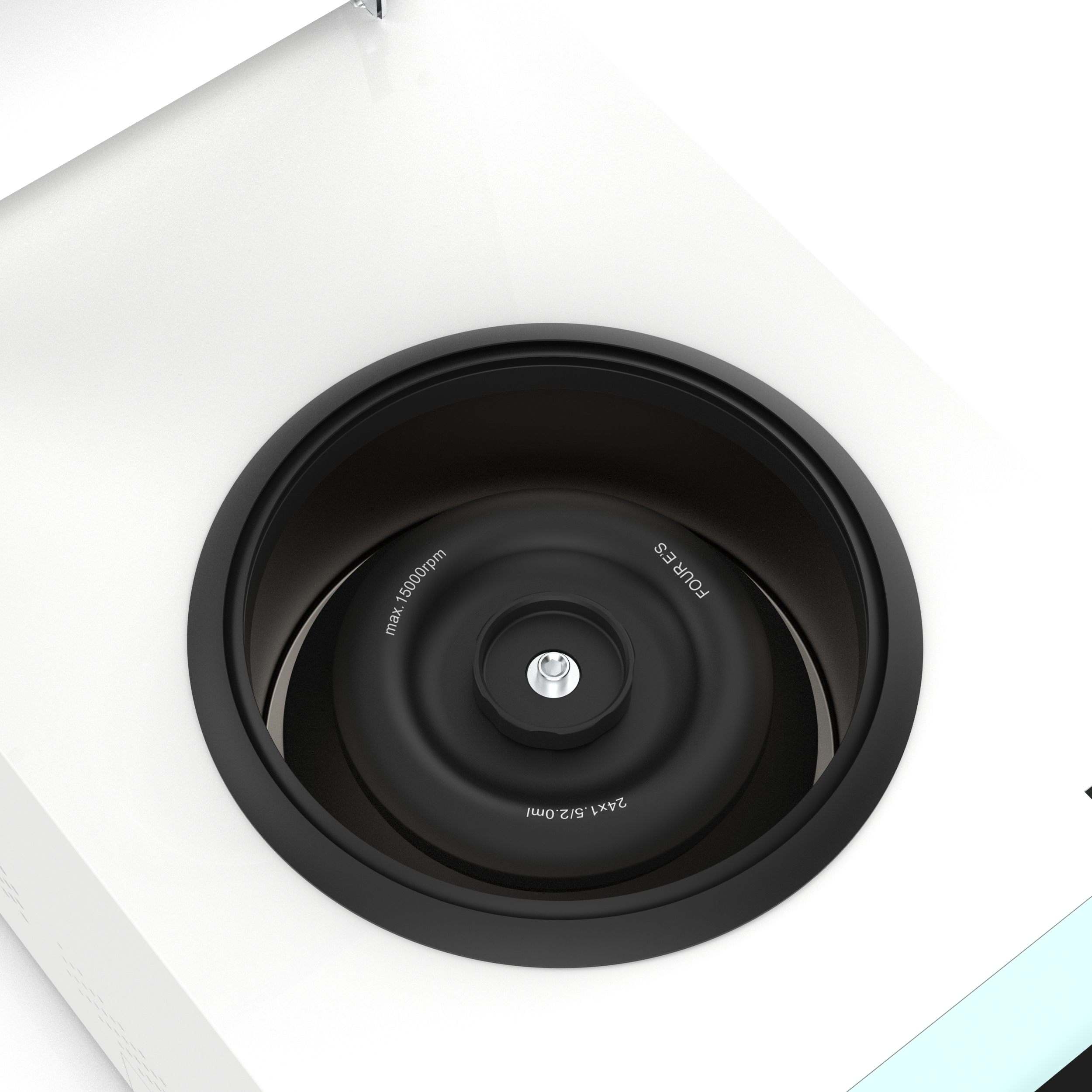

● Multiple rotors suited for various applications: 24×1.5/2.0 mL tubes, 18×1.5/2.0mL tubes or spin columns, 12x5mL tubes, 4×8×0.2mL PCR strips/tubes (for 4×0.2 mL PCR strips or 32×0.2mL PCR tubes)
● Maximum Relative Centrifugal Force (RCF) is up to 21,130×g (15,000 rpm)
● The standard rotor comes with aerosol-tight lid that ensures safe handling of hazardous samples.
● Double lock lid design offers improved safety, and the lid can be easily closed with light pressure.
● A 5-inch, high resolution touch screen with wide viewing angle and an intuitive user interface provides excellent user experience.
● Streamlined bar-shaped indicator light changes color or flashes to indicate working status, warning, and alarms.
● With wide temperature control range: -10°C to +40°C
● With a fast pre-cooling time (Room Temperature to 4°C in only 8 minutes), the centrifuge is ready for use in a very short time.
● Ensures reliable cooling at 4°C, even at maximum rotor speed.
● Built-in condensate tank to prevent the accumulation of condensate in the rotor chamber.
Features
● Multiple rotors suited for various applications: 24×1.5/2.0 mL tubes, 18×1.5/2.0mL tubes or spin columns, 12x5mL tubes, 4×8×0.2mL PCR strips/tubes (for 4×0.2 mL PCR strips or 32×0.2mL PCR tubes)
● Maximum Relative Centrifugal Force (RCF) is up to 21,130×g (15,000 rpm)
● The standard rotor comes with aerosol-tight lid that ensures safe handling of hazardous samples.
● Double lock lid design offers improved safety, and the lid can be easily closed with light pressure.
● A 5-inch, high resolution touch screen with wide viewing angle and an intuitive user interface provides excellent user experience.
● Streamlined bar-shaped indicator light changes color or flashes to indicate working status, warning, and alarms.
● With wide temperature control range: -10°C to +40°C
● With a fast pre-cooling time (Room Temperature to 4°C in only 8 minutes), the centrifuge is ready for use in a very short time.
● Ensures reliable cooling at 4°C, even at maximum rotor speed.
● Built-in condensate tank to prevent the accumulation of condensate in the rotor chamber.
Model | CF321 |
Speed Range (RPM) | 500 to 15,000 rpm; increment: 100rpm |
Max. RCF | 21,130 ×g (15,000 rpm) |
Rotor Capacity | 24×1.5/2.0mL tubes (standard), 18×1.5/2.0mL tubes or spin columns, 12×5mL tubes, 4×8×0.2mL PCR strips/tubes |
Time Setting Range | 30s-99h59min, with continuous run function |
Motor Type | Brushless DC motor |
Power Supply | AC100~120V/AC200~240V 50-60Hz |
Power (W) | 600 |
Speed accuracy (RPM) | ±100 |
Dimensions (mm) | 520× 305× 285 |
Weight (kg) | 30 kg |
Noise level (dB) | <65dB(A) |
Deceleration time | 19 s |
Acceleration time | 20 s |
Cooling | Refrigerated |
Temperature control range | -10 °C to +40 °C |
Maximum speed temperature control | 4 °C (continuous) |
Pre-cooling Time (from Room Temperature) | ≤8 minutes from RT ( ~21°C) to 4°C |
SOFT brake function | Yes |
Condensate drain function | Built-in condensate tank |
Model | CF321 |
Speed Range (RPM) | 500 to 15,000 rpm; increment: 100rpm |
Max. RCF | 21,130 ×g (15,000 rpm) |
Rotor Capacity | 24×1.5/2.0mL tubes (standard), 18×1.5/2.0mL tubes or spin columns, 12×5mL tubes, 4×8×0.2mL PCR strips/tubes |
Time Setting Range | 30s-99h59min, with continuous run function |
Motor Type | Brushless DC motor |
Power Supply | AC100~120V/AC200~240V 50-60Hz |
Power (W) | 600 |
Speed accuracy (RPM) | ±100 |
Dimensions (mm) | 520× 305× 285 |
Weight (kg) | 30 kg |
Noise level (dB) | <65dB(A) |
Deceleration time | 19 s |
Acceleration time | 20 s |
Cooling | Refrigerated |
Temperature control range | -10 °C to +40 °C |
Maximum speed temperature control | 4 °C (continuous) |
Pre-cooling Time (from Room Temperature) | ≤8 minutes from RT ( ~21°C) to 4°C |
SOFT brake function | Yes |
Condensate drain function | Built-in condensate tank |
