Fluorometer

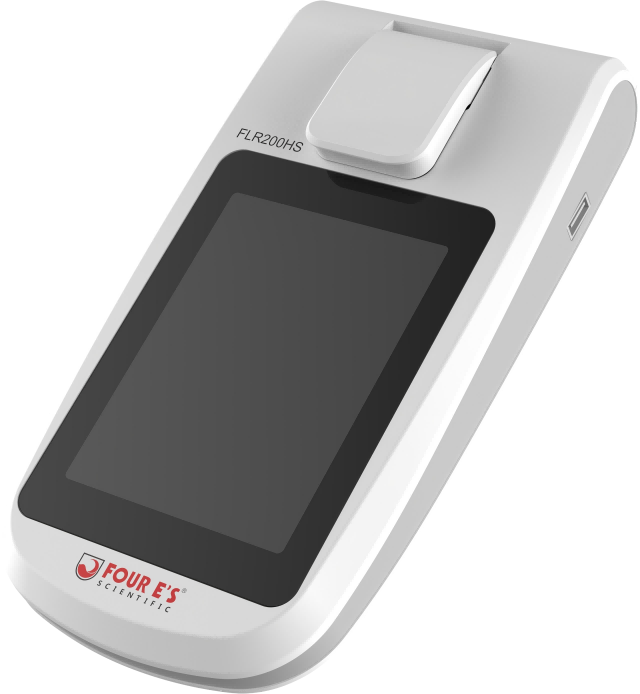

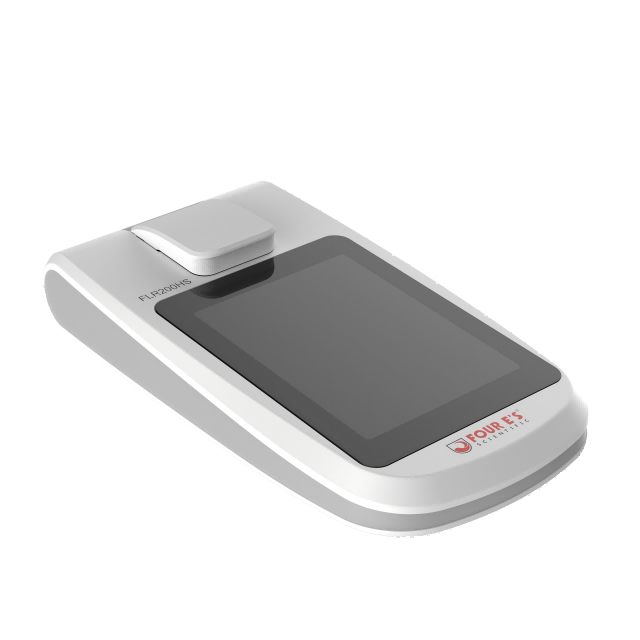

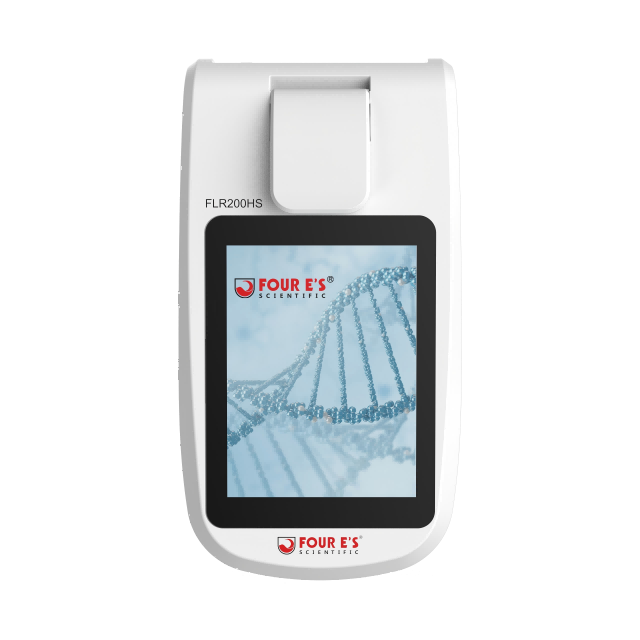

The FLR200HS Fluorometer is a cutting-edge instrument designed to deliver rapid and accurate quantification of DNA, RNA, and proteins. By utilizing advanced fluorescence technology, this device enables researchers to efficiently analyze a wide range of biological samples.

The FLR200HS Fluorometer is a valuable tool for numerous applications in life science research, including

Nucleic Acid Quantification: Precise measurement of DNA and RNA concentrations for molecular biology experiments.
Protein Quantification: Accurate determination of protein levels for biochemical and cellular studies.
NGS Library Preparation: Efficient quantification for quality control of NGS libraries to optimize sequencing workflows.
Western Blot Analysis: Quantitative analysis of protein expression levels.

Availability:



Inquire Now

Model:
FLR200HS

FEATURES

● Rapid Analysis: Achieve precise measurements in just 2.5 seconds per sample.

● High Sensitivity: Detect even minute quantities of biomolecules, with a lower limit of 10 pg/µL (original sample concentration) for dsDNA.

● Minimal Sample Volume: Obtain reliable results using sample volumes as small as 1-20 µL.

● Versatile Applications: Employ various dyes with pre-configured or custom standard curves to suit diverse experimental needs.

● Intuitive Interface: The 5.7-inch touchscreen provides a user-friendly experience, simplifying operation.

● Robust Data Storage: Store up to 10,000 programs and export data conveniently via USB drive.

Model	FLR200HS
Light sources	Blue LED (470nm peak)
Light sources	Red LED (635nm peak)
Excitation filters	Blue (450 - 490nm)
Excitation filters	Red (615 - 655nm)
Emission filters	Green (530 - 570nm)
Emission filters	Red (680 - 720nm)
Detectors	Photodiodes: measuring range 310 - 1000nm
Calibration type	2 or 3-point standard
Throughput	1
Sample volume	1-20μL
Sample tube	0.5mL PCR tube
Measurement time	2.5 seconds/sample
Dynamic range (dsDNA)	5 orders of magnitude
Limit of detection	<10pg/µl (dsDNA original sample concentration)
Stability	<1.5%
Repeatability	<1.5%
Display	5.7-inch touchscreen
External ports	2×USB-A
Storage capacity	4GB (10,000 programs)
Power supply	AC100-240V, 50-60Hz
Power input	12V 3A
Operating temperature	5-40°C
Operating humidity	20-80%
Weight	0.7kg
Size (W x D x H)	135 × 245 × 50mm

Model	FLR200HS
Light sources	Blue LED (470nm peak)
Light sources	Red LED (635nm peak)
Excitation filters	Blue (450 - 490nm)
Excitation filters	Red (615 - 655nm)
Emission filters	Green (530 - 570nm)
Emission filters	Red (680 - 720nm)
Detectors	Photodiodes: measuring range 310 - 1000nm
Calibration type	2 or 3-point standard
Throughput	1
Sample volume	1-20μL
Sample tube	0.5mL PCR tube
Measurement time	2.5 seconds/sample
Dynamic range (dsDNA)	5 orders of magnitude
Limit of detection	<10pg/µl (dsDNA original sample concentration)
Stability	<1.5%
Repeatability	<1.5%
Display	5.7-inch touchscreen
External ports	2×USB-A
Storage capacity	4GB (10,000 programs)
Power supply	AC100-240V, 50-60Hz
Power input	12V 3A
Operating temperature	5-40°C
Operating humidity	20-80%
Weight	0.7kg
Size (W x D x H)	135 × 245 × 50mm

Part Number	Description	Quantitation Range	Initial Sample Concertration	Number of Assays
FLR-dsDNA	1X dsDNA HS Assay Kit	0.5-100ng	0.025-100ng/μL	100T
FLR-ssDNA	1X ssDNA HS Assay Kit	0.5-200ng	0.025-200ng/μL	100T
FLR-RNA	RNA HS Assay Kit	0.5-200ng	0.025-200ng/μL	100T

Part Number	Description	Quantitation Range	Initial Sample Concertration	Number of Assays
FLR-dsDNA	1X dsDNA HS Assay Kit	0.5-100ng	0.025-100ng/μL	100T
FLR-ssDNA	1X ssDNA HS Assay Kit	0.5-200ng	0.025-200ng/μL	100T
FLR-RNA	RNA HS Assay Kit	0.5-200ng	0.025-200ng/μL	100T
