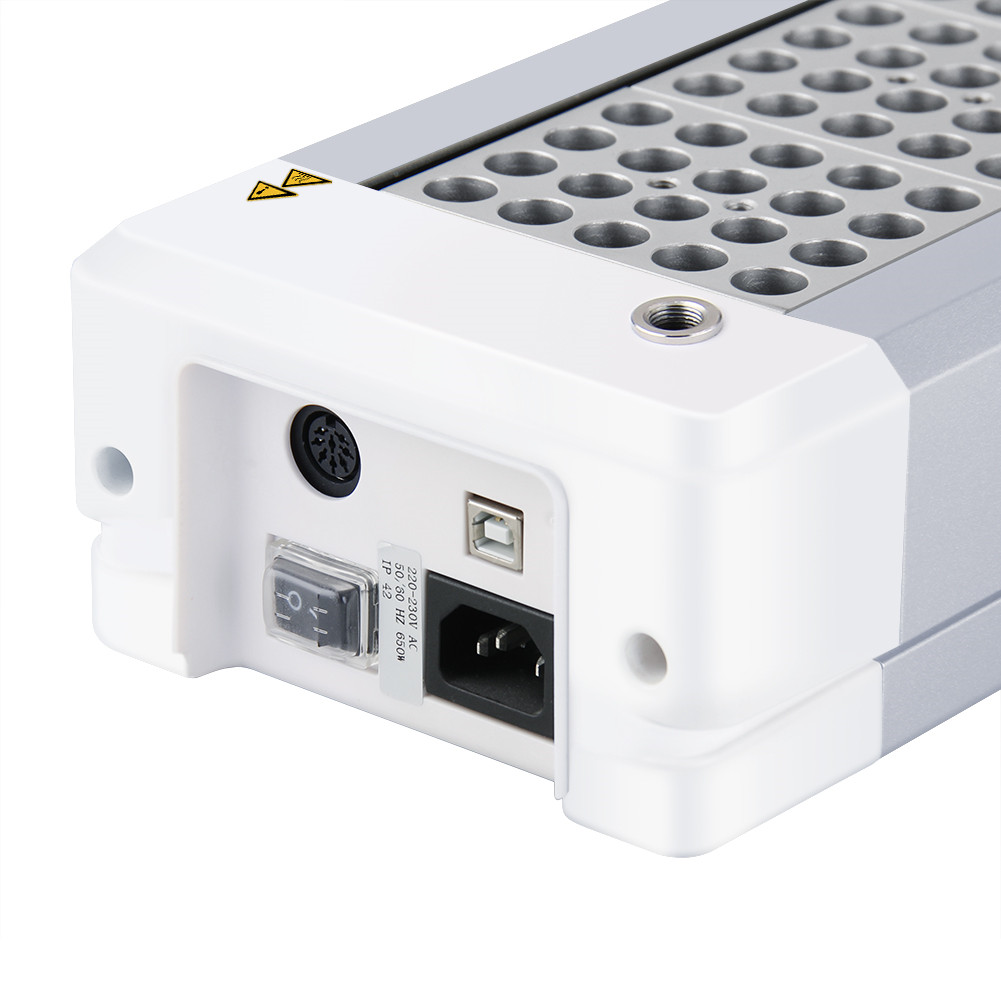

FOUR E’s Dry Bath Incubator is designed for outstanding temperature control and accuracy. Digital wheel enables accurate setting of temperature and heating time. The equipment comes with a built-in temperature sensor and also an additional external temperature sensor PT1000. When PT1000 is connected, the internal temperature sensor will disconnect automatically, enabling the temperature control and display to rely on the external temperature sensor. Interchangeable aluminum alloy blocks provide versatility in applications.
Availability: | |
---|---|
Typical Applications:
● Widely used in sample preparation, enzyme preservation, enzyme-substrate reactions, DNA amplification, electrophoresis gel degeneration and serum coagulation
Features:
● LED display for easy reading
● 3D digital wheel adjustment of time and temperature
● Adjustable temperature is up to 150°C
● High temperature stability is up to ±0.5°C
● Machined aluminum heating unit allows for highly precise control of temperature
● Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
● Adjustable timing range of 1min to 99h59min
● Fixed safety circuit
● Error code display
● Various applications with different blocks
● Automatic calibration with external PT1000 temperature sensor
Dry Bath Incubator (for 4 Blocks),Mini Dry Bath Incubator,digital dry bath incubator,dry bath incubator price,lab dry bath incubator
Typical Applications:
● Widely used in sample preparation, enzyme preservation, enzyme-substrate reactions, DNA amplification, electrophoresis gel degeneration and serum coagulation
Features:
● LED display for easy reading
● 3D digital wheel adjustment of time and temperature
● Adjustable temperature is up to 150°C
● High temperature stability is up to ±0.5°C
● Machined aluminum heating unit allows for highly precise control of temperature
● Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
● Adjustable timing range of 1min to 99h59min
● Fixed safety circuit
● Error code display
● Various applications with different blocks
● Automatic calibration with external PT1000 temperature sensor
Dry Bath Incubator (for 4 Blocks),Mini Dry Bath Incubator,digital dry bath incubator,dry bath incubator price,lab dry bath incubator
Model | TC0401003 |
Number of blocks | 4 |
Power [W] | 430 |
Heating temperature range [°C] | room temp.+5°C-150°C |
Temperature display | LED |
Adjustment and display resolution [K] | 0.1 |
Connection for ext. temperature sensor | DIN 12 878 |
PT 1000 variation; DIN EN 60751 Kl. A [K] | < = ± (0.15 + 0.002 x ITI) |
Temperature stability within the blocks at 37°C | ±0.5°C |
Temperature stability within the blocks at 60°C | ±0.5°C |
Temperature uniformity at 37°C | ±0.5°C |
Heating rate / Heat up time with external sensor * [K/min] | 4 |
Set-up plate material | Aluminium alloy |
Set-up plate dimensions [mm] | 96x304 |
Fixed safety circuit [°C] | 180 |
Timer | √ |
Time setting range | 1min - 99h59min |
Dimensions (W x H x D) [mm] | 152 x 86 x 465 |
Weight [kg] | 7.5 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity | 80% |
Protection class according to DIN EN 60529 | IP 21 |
Voltage [V] | 200-240/115 |
Frequency [Hz] | 50/60 |
Model | TC0401003 |
Number of blocks | 4 |
Power [W] | 430 |
Heating temperature range [°C] | room temp.+5°C-150°C |
Temperature display | LED |
Adjustment and display resolution [K] | 0.1 |
Connection for ext. temperature sensor | DIN 12 878 |
PT 1000 variation; DIN EN 60751 Kl. A [K] | < = ± (0.15 + 0.002 x ITI) |
Temperature stability within the blocks at 37°C | ±0.5°C |
Temperature stability within the blocks at 60°C | ±0.5°C |
Temperature uniformity at 37°C | ±0.5°C |
Heating rate / Heat up time with external sensor * [K/min] | 4 |
Set-up plate material | Aluminium alloy |
Set-up plate dimensions [mm] | 96x304 |
Fixed safety circuit [°C] | 180 |
Timer | √ |
Time setting range | 1min - 99h59min |
Dimensions (W x H x D) [mm] | 152 x 86 x 465 |
Weight [kg] | 7.5 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity | 80% |
Protection class according to DIN EN 60529 | IP 21 |
Voltage [V] | 200-240/115 |
Frequency [Hz] | 50/60 |
